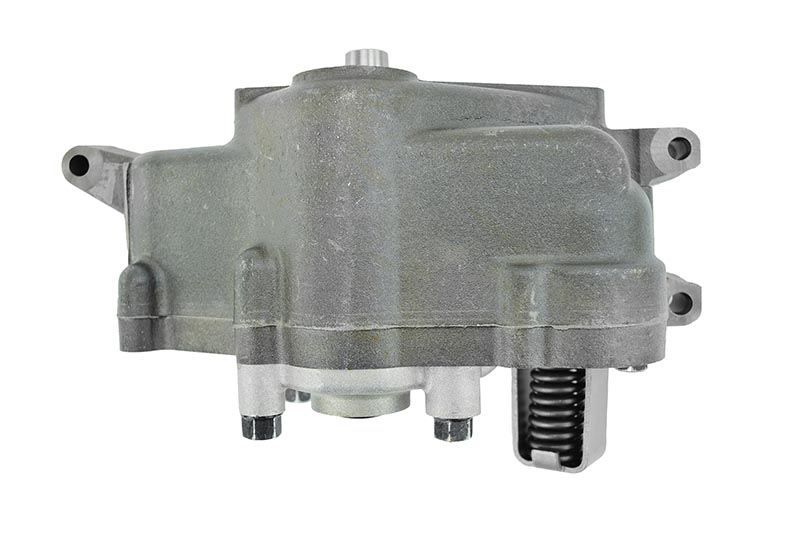

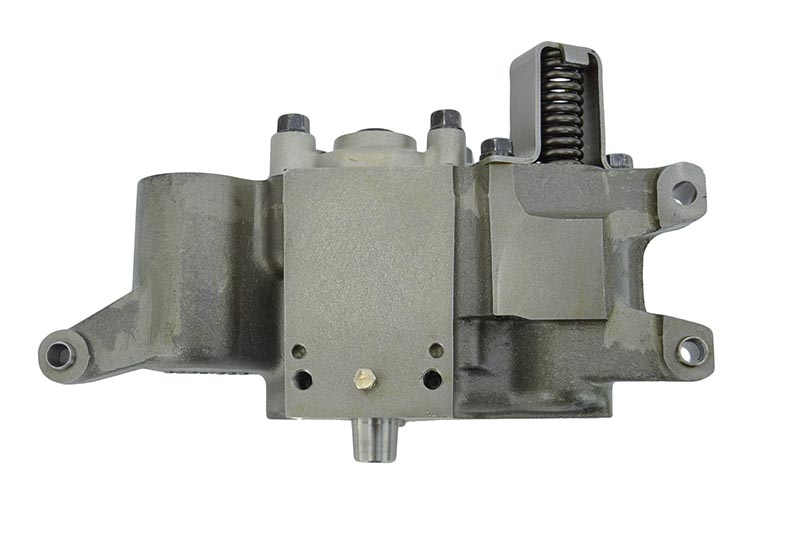

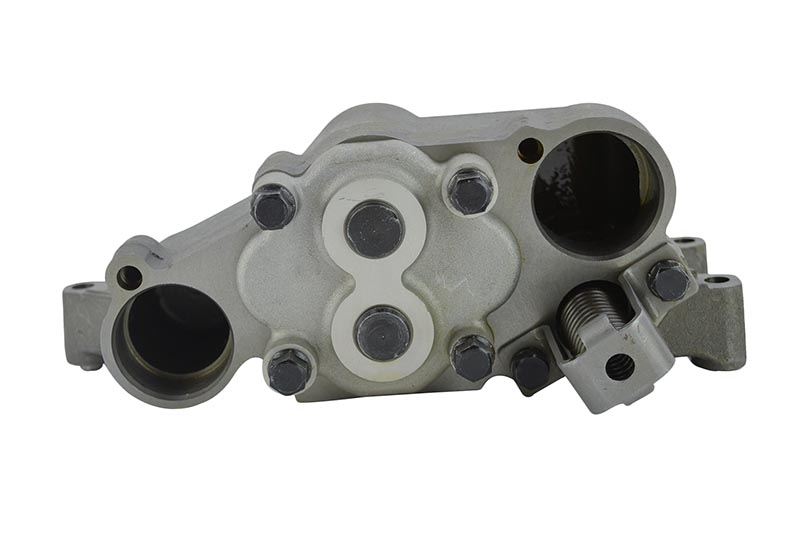

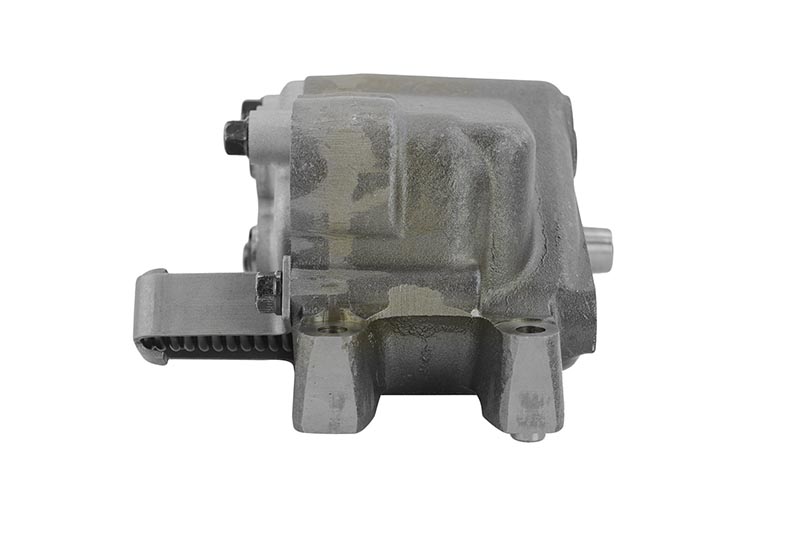

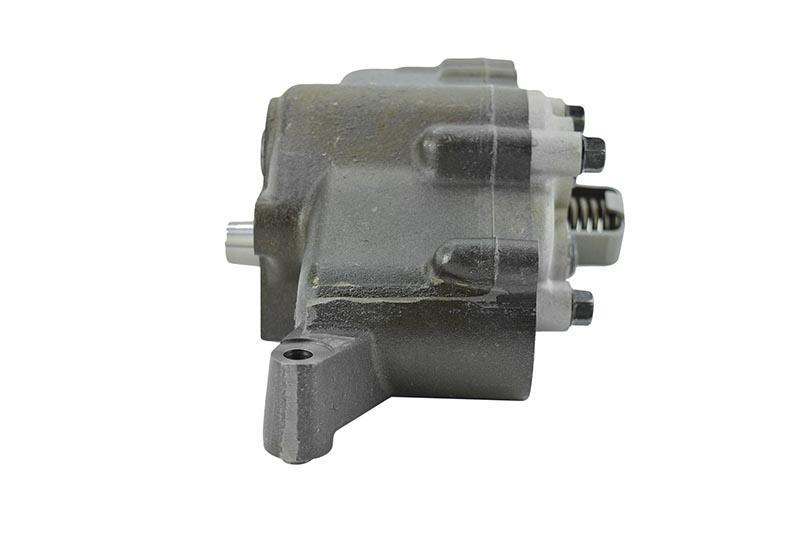

C15, 3406E Oil Pump, 0R9449, Caterpillar, New

Frequently Asked Questions: 0R9449 Oil Pump

What Caterpillar engines are compatible with the 0R9449 oil pump?

The 0R9449 oil pump is specifically engineered for Caterpillar C15, C15 ACERT, 3406E, and 3406C diesel engines, providing essential lubrication system support across these popular heavy-duty engine families. This oil pump also replaces Caterpillar part number 4N8734 and HHP part number 1614113, ensuring broad compatibility across multiple model years and engine configurations. The C15 engine family, including both standard and ACERT (Advanced Combustion Emissions Reduction Technology) variants, utilizes this same oil pump design despite their advanced emission control systems. The 3406E and 3406C engines, which preceded the C15 in Caterpillar’s lineup, share compatible lubrication system architecture that allows this single oil pump to serve across all these engine types. Fleet operators managing mixed Caterpillar fleets can standardize on this part number for inventory simplification and maintenance efficiency. These engines are commonly found in over-the-road trucks, construction equipment, marine applications, and stationary power generation systems where reliable oil pressure is critical for component protection. The oil pump is designed to handle the specific flow rate and pressure requirements of these high-performance diesel engines, which demand consistent lubrication under extreme operating conditions. When selecting replacement oil pumps, verification of engine serial number and specific application ensures proper fitment, as mounting configurations or drive mechanisms may vary between production years. HHP’s technical support team provides compatibility verification services and installation guidance to ensure optimal lubrication system performance across all supported engine applications.

What are the symptoms of a failing oil pump in Caterpillar C15 and 3406E engines?

Failing oil pump symptoms in Caterpillar C15, 3406E, and 3406C engines present as progressive lubrication system problems that require immediate attention to prevent catastrophic engine damage. Low oil pressure represents the most critical warning sign, manifesting through dashboard warning lights, gauge readings below normal operating ranges (typically below 10 PSI at idle or 30 PSI at highway speeds), or audible low-pressure alarms in equipped vehicles. Engine noise increases significantly with oil pump failure, including bearing knock, valve train chatter, and unusual mechanical sounds indicating insufficient lubrication reaching critical engine components. Oil pressure fluctuations during operation, where pressure readings vary inconsistently or drop under load conditions, suggest internal oil pump wear affecting consistent flow delivery. Engine overheating may accompany oil pump problems as inadequate lubrication increases friction and heat generation throughout the engine. Advanced symptoms include metal particles in oil samples during routine analysis, indicating bearing or component wear from insufficient lubrication pressure. Turbocharger noise or performance issues often correlate with oil pump problems, as turbochargers require consistent oil pressure for proper bearing lubrication and cooling. In severe cases, complete oil pressure loss leads to immediate engine shutdown through protective systems or catastrophic engine seizure if operation continues. Early detection through regular oil pressure monitoring and immediate investigation of any pressure-related warnings prevents expensive engine rebuilds. Professional diagnosis may include oil pressure testing at various RPM ranges, oil pump flow rate verification, and inspection of oil pickup screen condition to confirm oil pump failure versus other lubrication system problems requiring different repair approaches.

How does the 0R9449 oil pump function in Caterpillar lubrication systems?

The 0R9449 Caterpillar oil pump operates as the heart of the lubrication system, providing pressurized oil circulation essential for engine protection and performance in C15, 3406E, and 3406C applications. This gear-type oil pump utilizes precision-machined rotors that create suction to draw oil from the oil pan through the pickup screen and pressurize it for distribution throughout the engine’s lubrication galleries. The pump mounts directly to the engine block and receives mechanical drive from the crankshaft or camshaft through gear reduction, ensuring oil flow remains synchronized with engine speed and load demands. Internal pump components include outer and inner rotors with precise clearances that create expanding and contracting chambers to generate suction and discharge pressure as they rotate. The pump housing incorporates pressure relief valves that regulate maximum system pressure, preventing over-pressurization that could damage seals or cause excessive oil consumption while ensuring adequate pressure under all operating conditions. Oil delivery from the pump flows through main galleries to critical engine components including crankshaft bearings, connecting rod bearings, camshaft bearings, valve train components, turbocharger bearings, and piston cooling jets in equipped engines. The lubrication system design ensures priority flow to the most critical components first, with secondary circuits receiving oil after primary bearing surfaces are adequately supplied. Proper oil pump function maintains consistent pressure across varying engine speeds and loads, preserves oil film strength between moving components, provides cooling for high-temperature areas, and removes contaminants through circulation to the oil filter system, making the oil pump absolutely essential for engine longevity and reliable operation.

What is the installation process for replacing the 0R9449 Caterpillar oil pump?

Installing the 0R9449 Caterpillar oil pump requires comprehensive engine disassembly, specialized tools, and meticulous attention to cleanliness and proper procedures to ensure reliable lubrication system operation. The installation process typically requires 8-12 hours depending on engine accessibility, mechanic experience, and whether additional components require replacement during the repair. Essential tools include engine lifting equipment, comprehensive socket and wrench sets, torque wrenches with various ranges, gasket scraping tools, precision measuring instruments, and clean assembly lubricants appropriate for diesel engine applications. The procedure begins with complete engine oil drainage, removal of oil pan, oil pickup tube, and any components obstructing access to the oil pump mounting location on the engine block. Front engine disassembly may be required, including removal of cooling fans, radiator, front engine covers, crankshaft pulley, and timing gear covers to access the oil pump drive mechanism and mounting bolts. Critical preparation involves thoroughly cleaning all mating surfaces, inspecting pump drive gears for wear or damage, and verifying proper alignment of drive components before installing the new pump. New oil pump installation requires careful attention to gasket positioning, proper torque specifications for mounting bolts, and verification that pump rotors turn freely without binding or excessive clearance. Assembly procedures include installing new gaskets and seals, proper application of thread sealers where specified, and careful routing of oil pickup tube to prevent air entry or flow restrictions. Post-installation requirements include complete lubrication system refilling with specified oil grade, initial priming procedures to ensure pump cavity fills with oil, and extended break-in period with careful monitoring of oil pressure readings to verify proper pump operation before returning to normal service.

What quality assurance and technical support does HHP provide for the 0R9449 oil pump?

HHP’s 0R9449 Caterpillar oil pump undergoes rigorous quality assurance processes in ISO 9001:2015 certified manufacturing facilities, ensuring consistent production standards that meet or exceed original equipment specifications for demanding heavy-duty applications. The ISO certification mandates comprehensive quality management systems including incoming material inspection, precision machining verification, assembly process control, and final product testing that guarantees reliable performance under extreme operating conditions. Each oil pump receives detailed inspection of critical dimensions including rotor clearances, housing tolerances, and mounting surface flatness using precision measuring equipment to ensure proper fit and optimal pressure generation capabilities. Quality control procedures include pressure testing to verify pump output characteristics, flow rate verification across various speeds, and endurance testing that simulates extended operating conditions to identify potential failure modes. The manufacturing process utilizes premium materials specifically selected for durability under high-pressure, high-temperature conditions typical of heavy-duty diesel applications, with special attention to wear-resistant coatings and precision surface finishes that enhance pump longevity. HHP provides comprehensive technical support through ASE-certified diesel technicians with specialized expertise in Caterpillar lubrication systems who can assist with installation procedures, troubleshooting guidance, and compatibility verification for specific applications. Technical support services include detailed installation documentation, torque specification charts, break-in procedures, and diagnostic assistance for optimal pump performance and integration with existing engine systems. The combination of stringent manufacturing standards, comprehensive testing protocols, and extensive technical support ensures that HHP’s oil pumps deliver reliable lubrication system performance while providing the technical expertise necessary for successful installation and long-term operation in critical commercial applications.
