Description

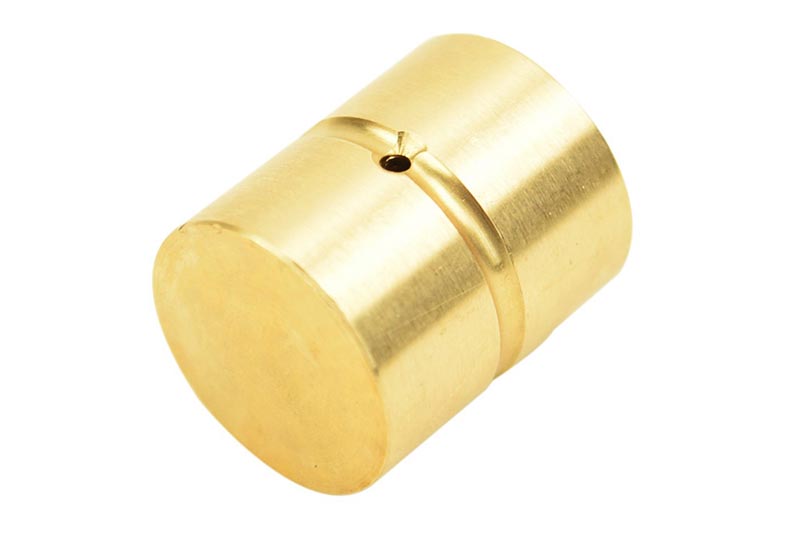

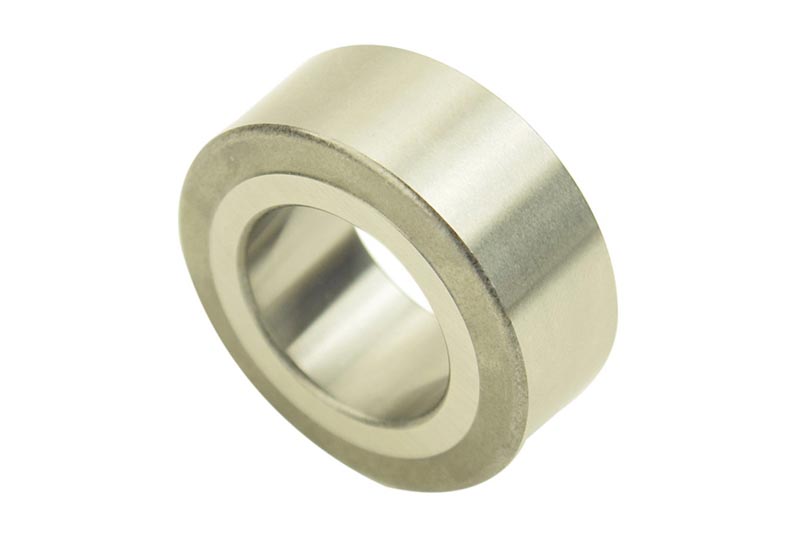

Loss of power? Popping or backfiring in the intake manifold or exhaust? If so, your Caterpillar C15, 3406E, C16 may be experiencing the failure of a camshaft or valve train. As these parts wear and eventually fail, they can cause all sorts of issues if not replaced. Fortunately for you, HHP has you covered! Fix up your failing camshaft or valve train with a New Pin and Roller Kit 2038822PR from Highway and Heavy Parts.
Don’t risk the health of your C15, 3406E, C16; buy high-quality aftermarket 2038822PR Pin and Roller Kit from America’s trusted diesel engine parts supplier. At Highway and Heavy Parts, you’ll get a Pin and Roller Kit manufactured in an ISO 9001:2015 certified facility, ensuring quality and consistency for your Caterpillar C15, 3406E, C16. Each part is crafted with hard-wearing strength and durability to ensure your 2038822PR Pin and Roller Kit can withstand the rigors of the road.
Guaranteed for fit and function, HHP parts have the right combination of quality and price with total support from our on-staff ASE-certified technicians. With specialized knowledge, quality products, fast shipping, and unbeatable customer service, HHP has you covered. Order your New Pin and Roller Kit 2038822PR today!
From diagnosis through delivery, we’re Highway & Heavy Parts!
Frequently Asked Questions
What engines are compatible with the 2038822PR pin and roller kit?
The 2038822PR pin and roller kit is specifically engineered for Caterpillar C15, 3406E, and C16 diesel engines, three of the most widely used heavy-duty engines in commercial trucking, construction equipment, and industrial applications. This comprehensive valve train kit provides essential components for these engine families that share similar valve train architecture and component specifications despite their different power ratings and production years. The 3406E represents the electronic evolution of Caterpillar’s legendary 3406 engine platform, featuring advanced electronic controls while maintaining the proven valve train design that accommodates this pin and roller kit configuration. The C15 engine, which succeeded the 3406E in Caterpillar’s lineup, continues utilizing compatible valve train components including these same pin and roller specifications despite enhanced performance capabilities and improved emissions control systems. The C16 engine, representing the higher displacement variant in the C-series family, shares fundamental valve train geometry and component requirements that allow this single kit to serve across all three engine types with optimal fit and performance characteristics. Fleet operators managing mixed Caterpillar fleets benefit from this standardized compatibility that simplifies inventory management, reduces parts complexity, and streamlines maintenance procedures across different engine models, horsepower ratings, and production years. These engines are commonly found in over-the-road trucks, vocational vehicles, construction equipment, marine applications, and stationary power generation systems where reliable valve train operation is critical for sustained performance under demanding operating conditions. The pin and roller components are designed to handle the specific load requirements and operating characteristics of these high-performance diesel engines, which demand precise valve train operation for optimal combustion efficiency and extended service life. When selecting valve train components, verification of engine model and serial number ensures proper fitment and optimal performance integration with existing valve train systems.
What is the function of pins and rollers in Caterpillar valve train systems?
Pins and rollers serve as critical interface components in Caterpillar C15, 3406E, and C16 valve train systems, facilitating smooth operation between camshaft lobes and valve actuating mechanisms while minimizing friction and wear under demanding operating conditions. The roller assembly operates as a cam follower that rides directly on camshaft lobes, utilizing rolling contact instead of sliding friction to reduce wear and improve efficiency during valve actuation cycles. This rolling contact design significantly reduces friction compared to flat-faced followers, resulting in lower operating temperatures, reduced wear rates, and improved fuel economy through decreased parasitic losses in the valve train system. The pin component serves as the pivot point for the roller assembly, providing precise alignment and rotational support while maintaining proper clearances and load distribution throughout the valve train mechanism. Together, these components transfer camshaft motion to pushrod assemblies, which then actuate rocker arms and ultimately control intake and exhaust valve operation with precise timing and lift characteristics essential for optimal engine performance. The pin and roller design allows for higher camshaft speeds and increased valve spring pressures compared to sliding contact systems, enabling improved engine breathing characteristics and enhanced performance capabilities. These components must maintain precise tolerances and surface finishes to ensure smooth operation, proper oil film retention, and extended service life under the high-stress conditions typical of heavy-duty diesel applications. The rolling action distributes contact stresses over a larger surface area compared to point or line contact systems, reducing component stress concentrations and extending service intervals between valve train maintenance procedures. Proper pin and roller function directly impacts valve timing accuracy, which affects combustion efficiency, emissions production, and overall engine performance throughout all operating conditions from idle to maximum load scenarios.
What are the symptoms of worn pins and rollers in Caterpillar engines?
Worn pins and rollers in Caterpillar C15, 3406E, and C16 engines present through distinctive symptoms that indicate valve train deterioration requiring immediate attention to prevent catastrophic engine damage and expensive repairs. Unusual valve train noise represents the most common early warning sign, typically manifesting as tapping, clicking, or grinding sounds that become more pronounced during engine warm-up periods or idle conditions as worn components develop excessive clearances. Power loss becomes noticeable as worn rollers fail to maintain proper contact with camshaft lobes, resulting in reduced valve lift and timing irregularities that compromise cylinder breathing efficiency and combustion performance under load conditions. Popping or backfiring in the intake manifold indicates improper valve timing from worn valve train components, causing combustion gases to escape through intake valves during compression strokes and creating audible backfire events during acceleration or high-load operation. Exhaust system irregularities including popping, unusual noise, or excessive smoke suggest exhaust valve timing problems from deteriorated pin and roller assemblies preventing proper exhaust gas evacuation and combustion chamber sealing. Engine misfiring or rough idle conditions frequently accompany pin and roller wear, as irregular valve operation disrupts proper air/fuel mixture ratios and compression characteristics necessary for smooth engine operation across all RPM ranges. Oil consumption may increase due to poor valve sealing caused by irregular valve timing and lift characteristics from worn valve train components, allowing oil to enter combustion chambers and creating blue exhaust smoke. Advanced symptoms include metal particles detected in routine oil analysis indicating excessive wear between pins, rollers, and associated components, suggesting imminent failure requiring immediate attention. Valve adjustment problems may occur as worn components develop excessive clearances that cannot be properly adjusted within specification ranges, indicating the need for complete pin and roller replacement. Complete failure of pins or rollers can result in catastrophic valve train damage including bent pushrods, damaged rocker arms, or valve timing irregularities that could cause valve-to-piston contact and major engine damage requiring extensive repairs.
How are pin and roller kits installed in Caterpillar valve train systems?
Installing the 2038822PR pin and roller kit in Caterpillar C15, 3406E, and C16 engines requires systematic valve train disassembly, specialized tools, and meticulous attention to proper procedures and clearance specifications to ensure optimal valve train operation and reliability. The installation process typically requires 8-12 hours of skilled labor depending on engine accessibility, mechanic experience level, and whether additional valve train components require replacement during the comprehensive service procedure. Essential tools include valve train disassembly equipment, comprehensive socket and wrench sets, precision measuring instruments for clearance verification, specialized pin removal and installation tools, valve adjustment tools, and clean assembly lubricants appropriate for heavy-duty diesel applications. The procedure begins with systematic valve train disassembly including removal of valve covers, rocker arm assemblies, pushrods, and access to cam follower assemblies where pins and rollers are located within the engine block. Pin and roller removal requires careful extraction procedures using specialized tools to prevent damage to surrounding components, camshaft lobes, or follower bores, often necessitating specific sequences and techniques to avoid component interference or damage. Critical preparation steps involve thorough cleaning of all mating surfaces, inspection of camshaft lobes for wear or damage, verification of follower bore conditions, and measurement of clearances to ensure proper fit of new components. New pin and roller installation requires precise assembly procedures including proper lubrication of all contact surfaces, correct orientation of components, and verification of proper clearances between pins, rollers, and associated valve train components. Assembly procedures must ensure proper pin retention, correct roller alignment with camshaft lobes, and adequate clearances for thermal expansion while maintaining precise valve train geometry throughout all operating conditions. Post-installation procedures include comprehensive valve adjustment to manufacturer specifications, lubrication system priming to ensure adequate oil flow to valve train components, and extensive break-in procedures with careful monitoring of valve train operation, oil pressure, and engine performance before returning to normal service operations.
What quality standards and warranty support does HHP provide for pin and roller kits?
HHP’s 2038822PR pin and roller kit undergoes comprehensive manufacturing and quality control processes in ISO 9001:2015 certified facilities that ensure exceptional performance and reliability through stringent quality management systems and advanced manufacturing technologies. The ISO certification mandates rigorous quality control protocols including detailed incoming material inspection of premium alloy steels and specialized bearing materials, precision machining verification using coordinate measuring machines, and extensive final product testing that guarantees consistent manufacturing standards and dimensional accuracy across all production batches. Each pin and roller component receives meticulous inspection of critical dimensions including pin diameter tolerances, roller surface finish specifications, hardness characteristics, and assembly clearances using precision measuring equipment to ensure optimal fit and performance in demanding valve train applications. Advanced quality control procedures include comprehensive hardness testing of contact surfaces using specialized testing methods, surface finish verification using profilometers, dimensional analysis of all mating surfaces, and assembly testing to verify proper component interaction and clearance specifications. The manufacturing process utilizes premium materials specifically selected for valve train applications, including case-hardened steel pins with optimal surface treatments and precision-manufactured rollers with advanced bearing surfaces that provide superior wear resistance and extended service life under high-stress operating conditions. Heat treatment processes provide optimal hardness characteristics for contact surfaces while maintaining proper core toughness and fatigue resistance, with specialized surface treatments including precision grinding and case hardening that significantly enhance wear resistance and reduce friction coefficients. HHP provides comprehensive warranty coverage that protects against manufacturing defects, premature component failure, and performance issues under normal heavy-duty operating conditions, demonstrating confidence in manufacturing quality while providing financial protection for customers’ investment in critical valve train components. Technical support services include direct access to ASE-certified diesel technicians with specialized expertise in Caterpillar valve train systems who provide detailed installation guidance, clearance specifications, troubleshooting assistance, and compatibility verification for specific engine applications and model years. The extensive support infrastructure includes comprehensive technical documentation, installation procedures with detailed diagrams, specification charts for clearances and tolerances, and diagnostic assistance that ensures successful installation and optimal component performance throughout the service life, making HHP’s pin and roller kits the preferred choice for professional mechanics, fleet operators, and equipment owners requiring reliable valve train components for their valuable Caterpillar engines operating in demanding commercial and industrial applications where valve train reliability directly impacts engine performance and operational profitability.
