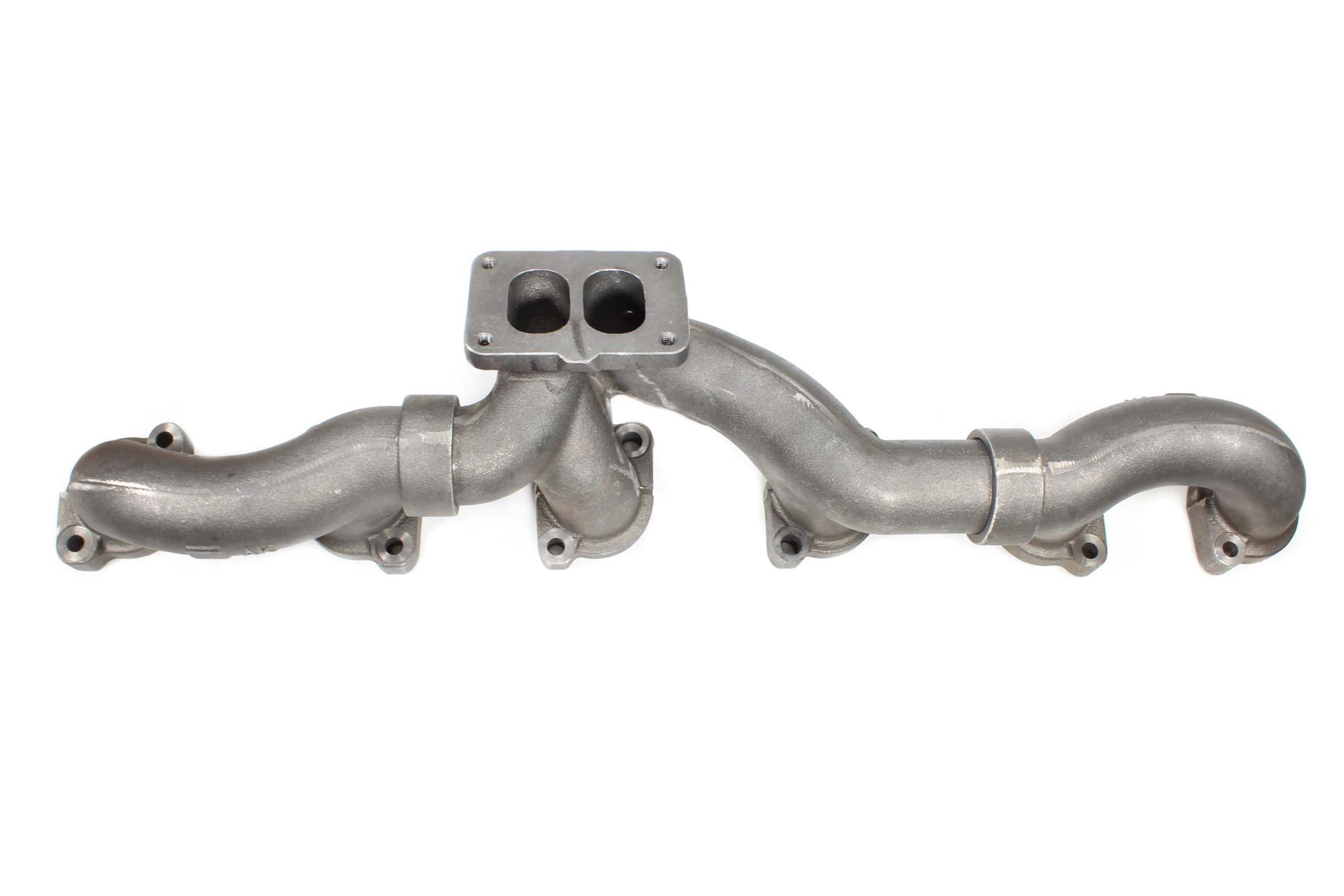

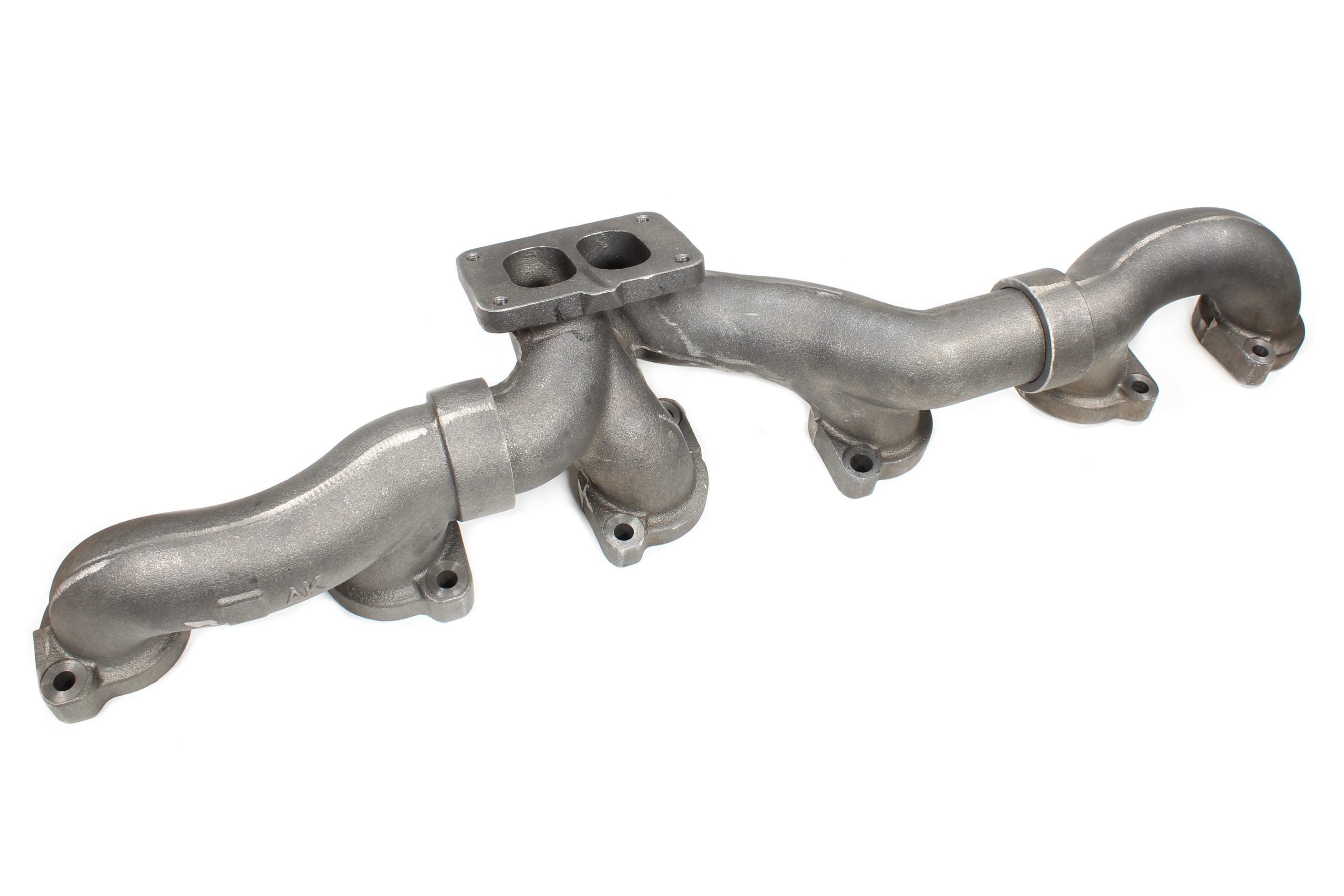

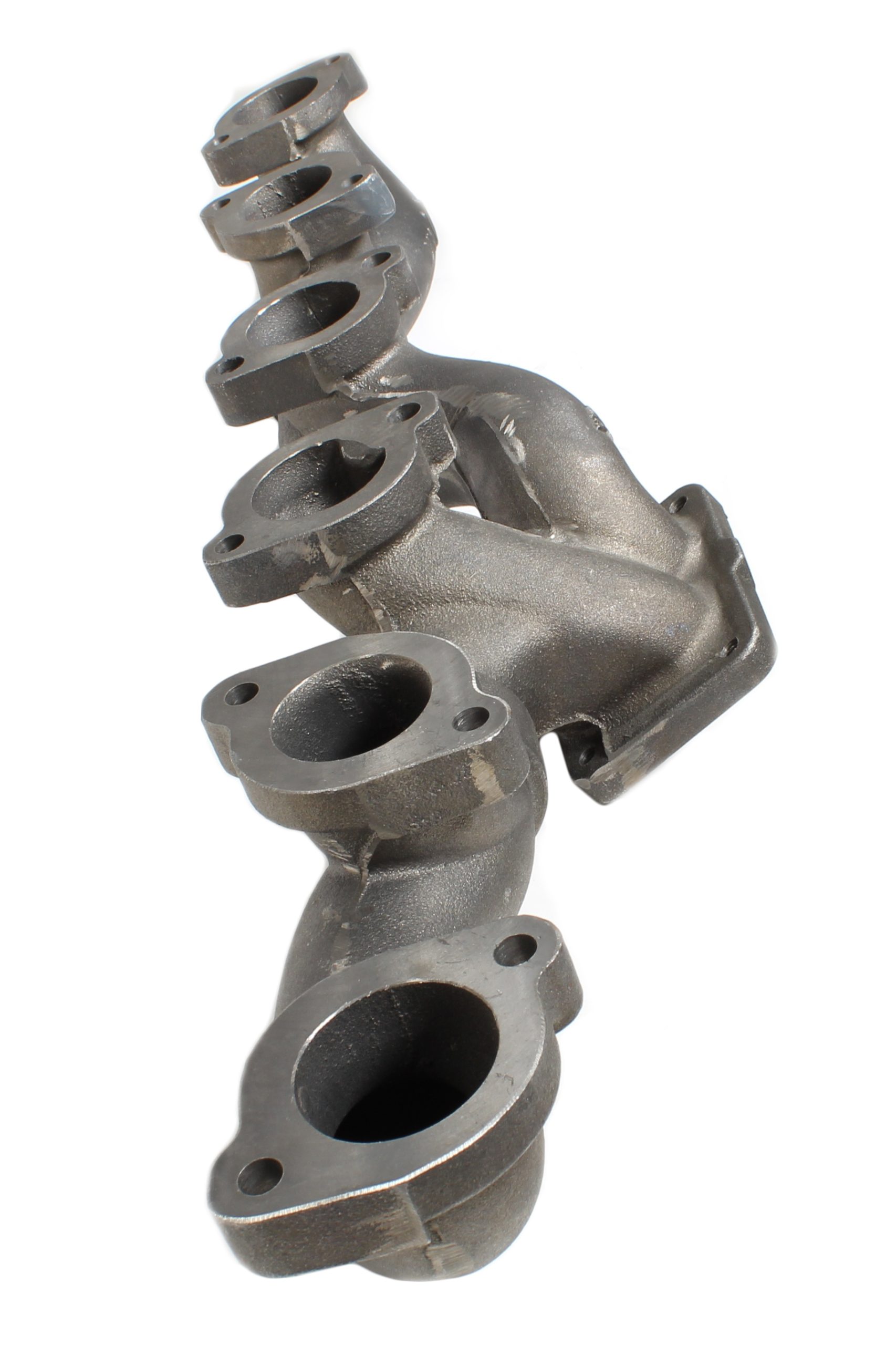

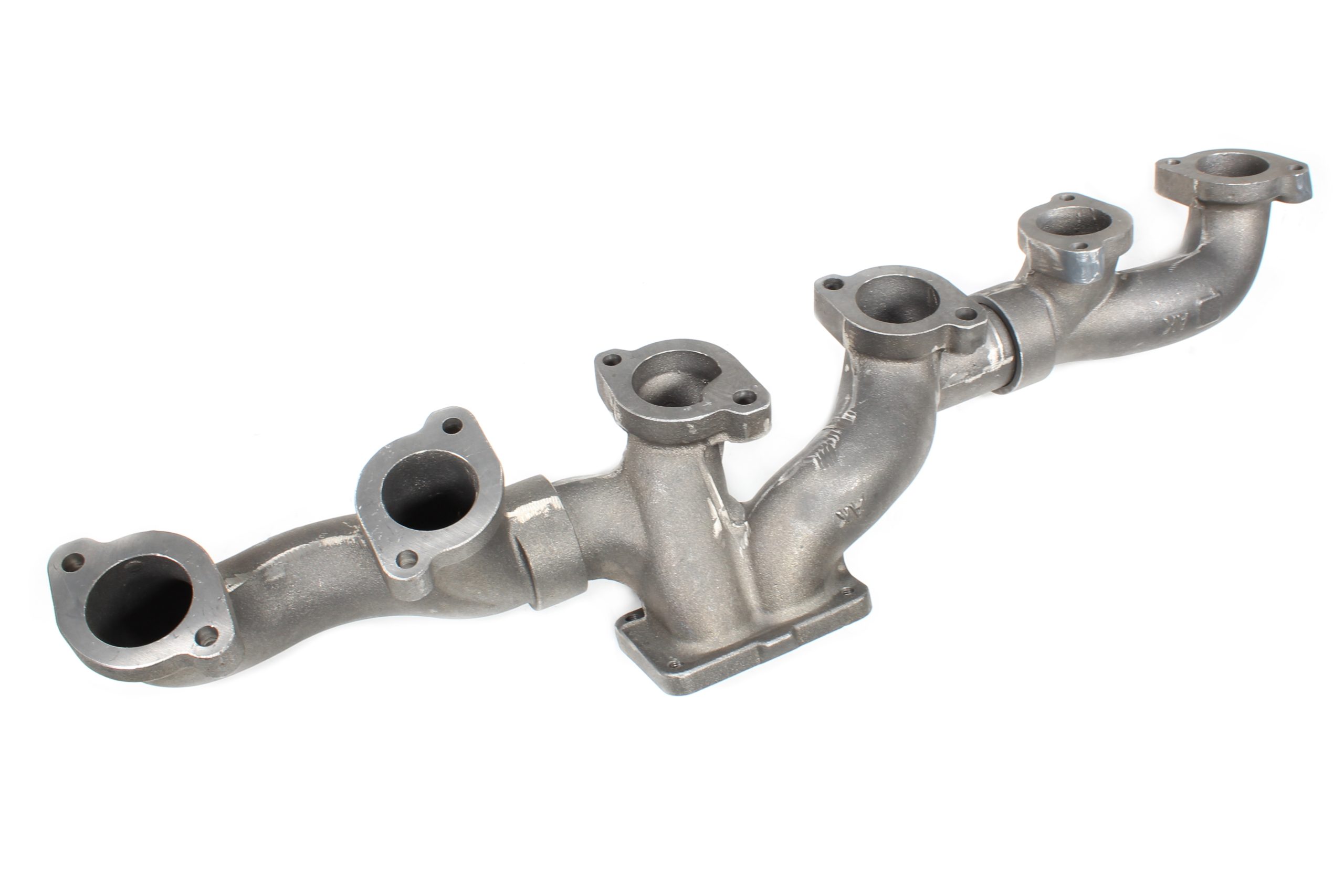

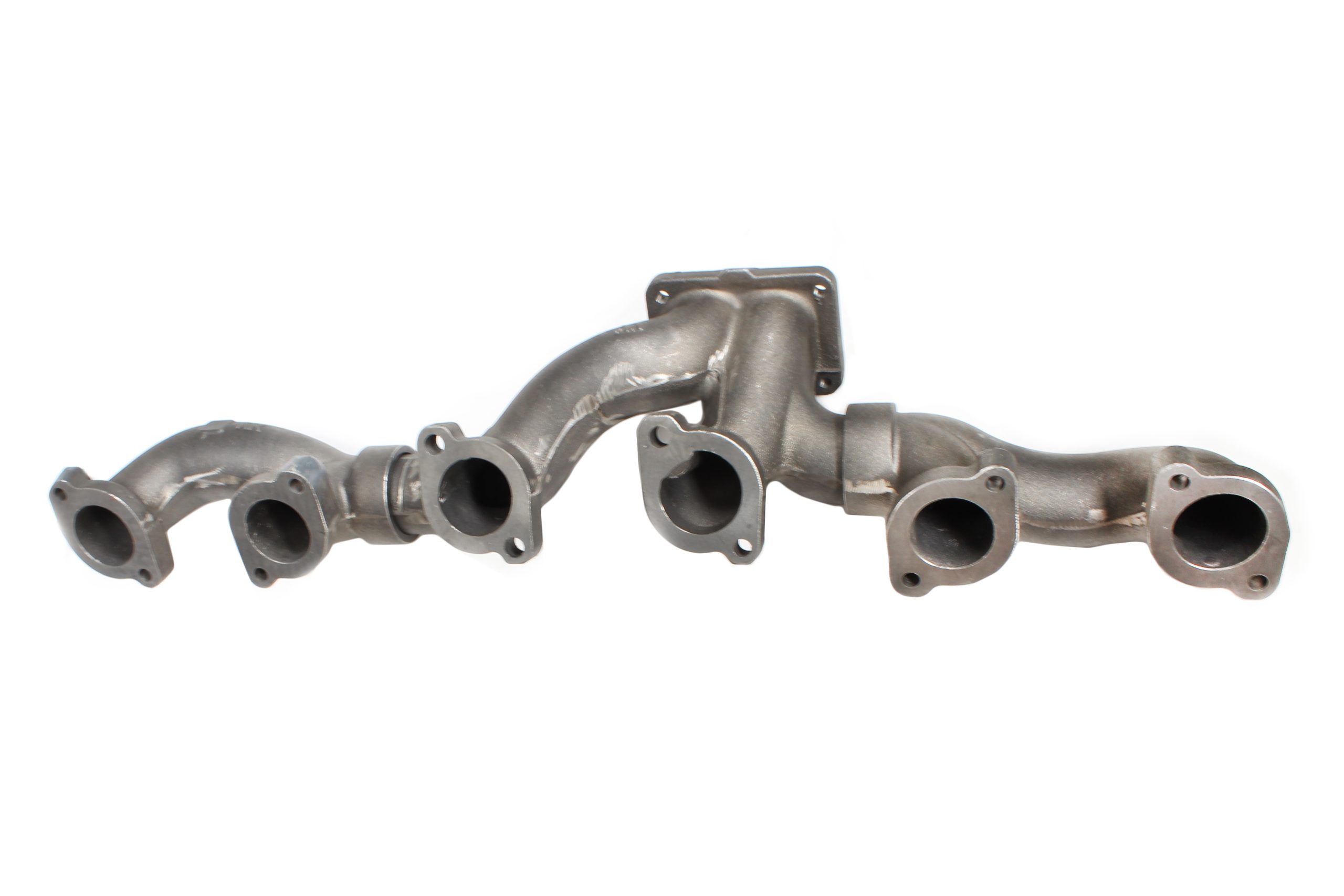

Detroit Diesel Series 60 12.7L, 14L, 11.1L Exhaust Manifold Kit, New (23511977)

Frequently Asked Questions

What are the symptoms of a failing Detroit Diesel Series 60 exhaust manifold?

A failing exhaust manifold on your Detroit Diesel Series 60 engine presents several distinct symptoms that should not be ignored. Extra loud acceleration or abnormal exhaust noise is often the first and most noticeable sign of manifold problems. When the manifold develops cracks or the gaskets fail, exhaust gases escape before reaching the turbocharger and exhaust pipe, creating a loud ticking, hissing, or roaring sound that becomes more pronounced as engine RPM increases. Poor fuel efficiency is another critical indicator, as exhaust leaks disrupt the backpressure necessary for optimal turbocharger performance, forcing your engine to work harder and consume more diesel to maintain the same power output. You may also notice a loss of power or sluggish acceleration, particularly when pulling heavy loads or climbing grades, because exhaust leaks reduce the drive pressure reaching the turbocharger, resulting in decreased boost and compromised engine performance. Visible signs include exhaust soot streaks or carbon buildup around the manifold connections, which clearly indicate where gases are escaping. A distinctive exhaust smell in the cab or around the engine compartment can occur when leaks allow fumes to enter areas near the firewall or air intake system. Some drivers report a popping or backfire sound during deceleration, which happens when exhaust gases escape and ignite outside the normal exhaust path. In severe cases, you might observe glowing red spots on the manifold during nighttime operation, indicating extreme heat concentration at crack locations. If you experience any combination of these symptoms on your Series 60 12.7L, 14L, or 11.1L engine, it’s essential to address the issue promptly to prevent further damage to the turbocharger, exhaust system components, and surrounding engine parts.

Will this exhaust manifold kit fit all Detroit Diesel Series 60 engines?

The 23516107 exhaust manifold kit (also listed as 23511977) is specifically engineered for Detroit Diesel Series 60 engines with 12.7L, 14L, and 11.1L displacements, making it compatible with a wide range of applications commonly found in heavy-duty trucks, coaches, motorhomes, and industrial equipment. However, understanding the specific fitment is crucial because the Series 60 was produced over several decades with various configurations. The Series 60 family includes different cylinder head designs, turbocharger mounting configurations, and exhaust routing options depending on the model year, horsepower rating, and emission certification level. The 11.1L variant was produced earlier in the Series 60 production run, while the 12.7L became the most common displacement and the 14.0L was introduced later for higher horsepower applications. While this manifold kit covers these three major displacement variants, you should verify compatibility with your specific engine serial number and configuration before ordering. Factors that can affect fitment include whether your engine is a pre-EGR model or has exhaust gas recirculation, the orientation of the turbocharger mounting flange, and whether you have a single or dual turbocharger setup in the case of certain high-horsepower configurations. Highway and Heavy Parts employs ASE-certified technicians who can help confirm exact fitment for your particular Series 60 engine. When calling, have your engine serial number, truck VIN, model year, and current manifold part number available. The team can cross-reference these details to ensure the 23516107 kit is the correct application for your specific Series 60 configuration.

What causes exhaust manifolds to crack on Detroit Diesel Series 60 engines?

Exhaust manifold cracking on Detroit Diesel Series 60 engines results from several interconnected factors related to the extreme operating conditions these components endure. Thermal stress is the primary culprit, as exhaust manifolds experience dramatic temperature fluctuations from ambient conditions during cold starts to operating temperatures exceeding 1200 degrees Fahrenheit under load. This constant expansion and contraction creates metal fatigue over time, particularly at stress concentration points like bolt holes, turbocharger flanges, and the transitions between thick and thin sections of the casting. The Series 60’s inline six-cylinder configuration and high power output generate significant heat, especially in the cylinders closest to the turbocharger where exhaust gas temperatures are highest. Thermal cycling is exacerbated by driving patterns that involve frequent cold starts followed by immediate heavy loading, which doesn’t allow the manifold to warm up gradually and evenly. Material degradation occurs over hundreds of thousands of miles as the cast iron or ductile iron manifold material undergoes oxidation and loses its structural integrity from prolonged exposure to extreme heat and corrosive exhaust gases. Improper installation practices contribute to premature failure when manifold bolts are over-torqued, creating stress risers, or when bolts are tightened in the wrong sequence, causing uneven clamping force and warping. Using incorrect or low-quality gaskets that compress unevenly or deteriorate quickly can also lead to localized hot spots that promote cracking. Engine vibration and harmonics, particularly in heavy-duty applications with significant road shock and vibration, place additional cyclic stress on the manifold structure. Turbocharger weight and mounting stress add to the problem, as the manifold must support the turbocharger while also accommodating differential thermal expansion between the cold turbocharger housing and hot exhaust gases. To maximize manifold life, ensure proper installation with correct torque specifications and tightening sequences, use quality gaskets and hardware, avoid aggressive cold-start loading, and address exhaust leaks promptly before they cause concentrated heat damage.

What’s included in the Detroit Diesel Series 60 exhaust manifold kit?

The 23516107 exhaust manifold kit for Detroit Diesel Series 60 engines is designed as a comprehensive solution for exhaust system repair or replacement, providing all the essential components needed for a complete and reliable installation. The kit typically includes the main exhaust manifold casting, which is precision-manufactured from high-quality cast iron or ductile iron material capable of withstanding extreme thermal stress and exhaust gas temperatures. This manifold is produced in an ISO 9001:2015 certified facility, ensuring consistent quality, precise port alignment, and proper dimensional tolerances for optimal flow characteristics and turbocharger interface. The kit generally contains all necessary gaskets, including the exhaust manifold gasket that seals between the cylinder head and manifold, and the turbocharger mounting gasket that seals the connection between the manifold and turbocharger inlet. These gaskets are manufactured from high-temperature composite materials or multi-layer steel designed to withstand extreme heat while maintaining a reliable seal under constant thermal cycling. You can expect the kit to include the complete hardware package with manifold mounting studs or bolts, nuts, washers, and lock tabs specifically designed for exhaust system applications. This hardware is typically made from heat-resistant alloy materials that won’t seize or break during installation or future service. Some kits may also include the turbocharger mounting hardware depending on the specific part number configuration. The comprehensive nature of the kit eliminates the time-consuming and often frustrating process of sourcing individual components from multiple suppliers, and ensures all parts are engineered to work together as a system. Highway and Heavy Parts guarantees this kit for fit and function, providing peace of mind that you’re getting quality components backed by knowledgeable technical support from ASE-certified technicians who understand Series 60 engines inside and out.

How does a new exhaust manifold improve Detroit Diesel Series 60 performance?

Installing a new exhaust manifold kit on your Detroit Diesel Series 60 engine delivers substantial improvements in performance, efficiency, and reliability that extend well beyond simply fixing an exhaust leak. Optimal turbocharger performance is immediately restored because a leak-free manifold ensures all exhaust gases reach the turbocharger turbine with maximum energy and pressure, generating proper boost levels that restore lost horsepower and torque. When manifolds crack or gaskets fail, even small leaks significantly reduce the drive pressure reaching the turbocharger, resulting in diminished boost, sluggish throttle response, and noticeable power loss, particularly under load. A new manifold eliminates these inefficiencies and returns your engine to its designed power output. Fuel efficiency improvements are often dramatic and immediately noticeable after manifold replacement. Exhaust leaks force the engine management system to compensate for reduced turbocharger efficiency by injecting more fuel to achieve the desired power output, sometimes increasing fuel consumption by five to fifteen percent depending on leak severity. With proper sealing restored, the engine operates at its optimal air-fuel ratio, reducing unnecessary fuel consumption and lowering your operating costs per mile. Improved exhaust flow characteristics come from the precisely cast ports and passages in the new manifold, which may have superior design compared to older manifolds that have been subjected to years of carbon buildup, heat distortion, and surface degradation. Better flow reduces exhaust gas temperatures and backpressure, allowing the engine to breathe more efficiently. Reduced engine stress results from maintaining proper exhaust system integrity, as exhaust leaks can cause localized overheating of nearby components including wiring harnesses, sensors, starter motors, and engine mounts. Eliminating these leaks protects surrounding components and extends their service life. Extended turbocharger life is another significant benefit, as a new manifold with proper sealing prevents exhaust leaks from disrupting turbocharger operation and causing premature wear on turbine wheels and bearings. The quality construction and materials in Highway and Heavy Parts’ ISO 9001:2015 certified manifold ensure long-term durability and reliability that often exceeds the lifespan of economy alternatives, making it a sound investment in your Series 60’s continued performance and your business’s bottom line.
