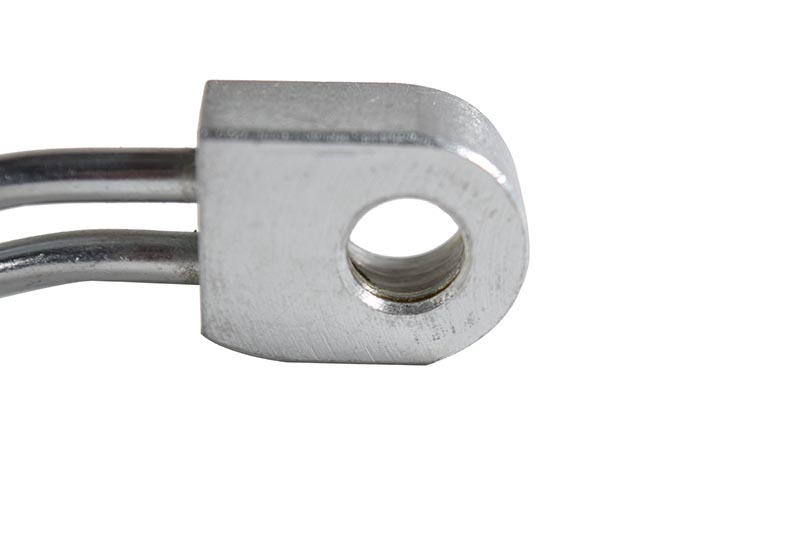

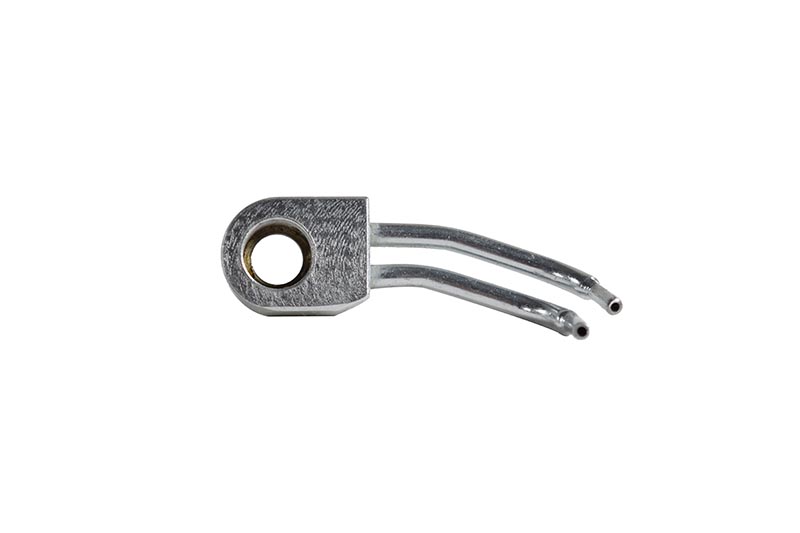

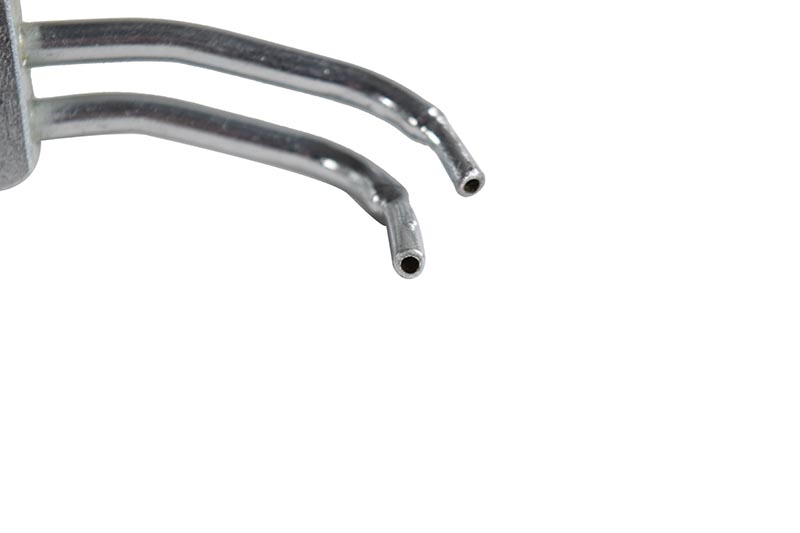

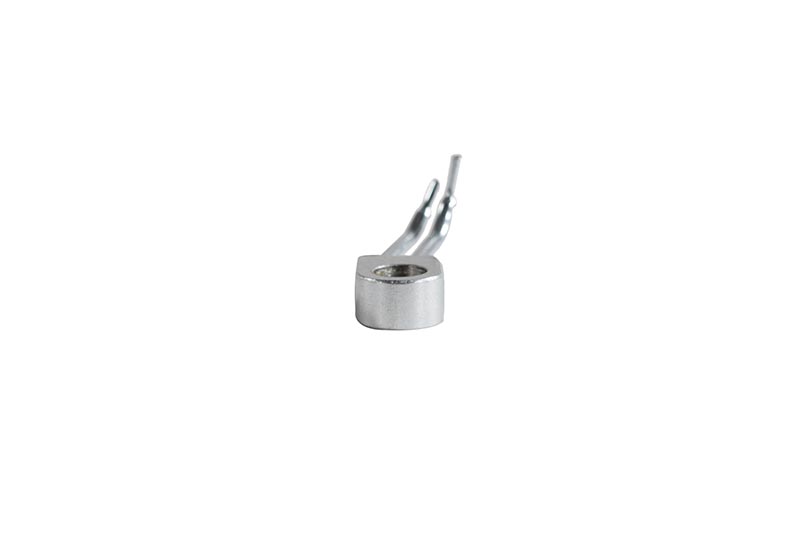

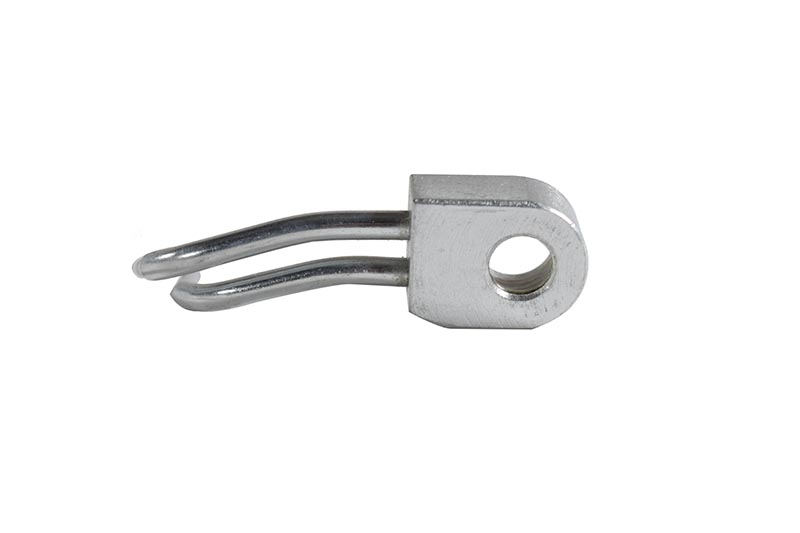

Caterpillar C15 Acert, C15, 3406E Cooling Nozzle, New (2764637)

Frequently Asked Questions: 2764637 Piston Cooling Nozzle in Caterpillar Engines

What is the function of the 2764637 piston cooling nozzle in Caterpillar engines?

The 2764637 piston cooling nozzle serves as a critical component in Caterpillar 3406E, C15, and C15 ACERT engines, providing targeted oil spray cooling to piston undersides for optimal thermal management and engine protection. These precision-engineered nozzles direct pressurized engine oil onto the bottom of each piston crown and skirt area, effectively removing combustion heat that would otherwise cause piston damage, ring wear, and reduced engine life. The cooling function becomes especially critical in high-performance diesel applications where combustion temperatures can exceed 2,000 degrees Fahrenheit, creating thermal stress that could lead to piston cracking, ring land damage, or complete piston failure without adequate cooling. Each nozzle receives oil pressure from the main lubrication system and features precisely calibrated orifices that deliver optimal oil flow rates for maximum cooling efficiency while maintaining proper oil pressure for other critical engine components. The spray pattern and oil volume are engineered to provide complete coverage of piston surfaces during all operating conditions, including high-load situations where thermal stress reaches maximum levels. This cooling system significantly extends piston life, reduces oil consumption, maintains proper ring seal, and prevents thermal-related failures that could result in catastrophic engine damage. In turbocharged and high-horsepower applications, piston cooling nozzles become absolutely essential for reliable operation, as increased combustion pressures and temperatures exceed the thermal limits of air-cooled piston designs. The 2764637 nozzle design incorporates advanced flow characteristics and spray patterns that optimize cooling efficiency while minimizing oil consumption, making it an integral component for achieving the million-mile service life potential that Caterpillar engines are renowned for in demanding commercial applications.

Which Caterpillar engines require the 2764637 piston cooling nozzle?

The 2764637 piston cooling nozzle is specifically designed for Caterpillar 3406E, C15, and C15 ACERT diesel engines, representing some of the most popular and durable heavy-duty engines in commercial trucking and industrial applications. These engines utilize piston cooling nozzles as standard equipment due to their high-performance characteristics, increased power density, and demanding operating conditions that require additional thermal management beyond traditional air cooling methods. The 3406E engine, which introduced electronic controls to the legendary 3406 platform, incorporates piston cooling nozzles to handle increased combustion pressures and temperatures associated with improved fuel efficiency and emissions compliance. C15 engines, which succeeded the 3406E in Caterpillar’s lineup, continue utilizing the same piston cooling nozzle design while delivering enhanced performance and reliability across various horsepower ratings from 425 to over 600 horsepower. C15 ACERT (Advanced Combustion Emissions Reduction Technology) engines feature even more sophisticated combustion systems that generate higher thermal loads, making piston cooling nozzles absolutely essential for reliable operation and extended component life. Fleet operators managing mixed Caterpillar fleets benefit from this standardized part number that simplifies inventory management and maintenance procedures across different engine types and model years. These engines are commonly found in over-the-road trucks, construction equipment, marine applications, and stationary power generation systems where reliable cooling is critical for continuous operation under demanding conditions. The nozzle design accommodates the specific oil flow and pressure characteristics of these engine families, ensuring optimal cooling performance regardless of the specific application or operating environment. When replacing piston cooling nozzles, verification of engine serial number and model designation ensures proper fitment and optimal cooling system performance.

What are the symptoms of failed or clogged piston cooling nozzles?

Failed or clogged piston cooling nozzles in Caterpillar 3406E, C15, and C15 ACERT engines present through several critical symptoms that indicate inadequate piston cooling and potential for serious engine damage. Excessive oil consumption represents one of the most common early warning signs, as damaged pistons from inadequate cooling allow oil to bypass worn rings and enter the combustion chamber, resulting in blue exhaust smoke and frequent oil additions between service intervals. Engine knock or unusual combustion noise indicates piston thermal distress from insufficient cooling, often manifesting as metallic tapping sounds that become more pronounced under load conditions or during acceleration. Oil temperature warnings or consistently elevated oil temperatures suggest increased thermal load from inadequate piston cooling, as the lubrication system struggles to dissipate excess heat that would normally be managed by properly functioning cooling nozzles. Power loss and reduced fuel economy often accompany cooling nozzle problems, as thermally stressed pistons lose proper ring seal and compression, reducing combustion efficiency and overall engine performance. Advanced symptoms include carbon buildup on pistons visible during cylinder head removal, piston crown cracking or heat damage, and excessive blow-by past worn rings caused by thermal expansion and distortion. Oil analysis may reveal increased silicon levels indicating piston ring wear, elevated iron content from cylinder liner wear, and fuel dilution from poor ring seal allowing combustion gases to contaminate the crankcase. Turbocharger problems may develop simultaneously, as excessive exhaust temperatures from poor combustion efficiency can damage turbocharger components and reduce overall system performance. Complete cooling nozzle failure can lead to catastrophic piston failure, including piston crown cracking, ring land damage, or complete piston seizure that requires major engine rebuild and significant downtime for commercial vehicles.

How are piston cooling nozzles installed and maintained in Caterpillar engines?

Installing and maintaining the 2764637 piston cooling nozzles in Caterpillar 3406E, C15, and C15 ACERT engines requires comprehensive engine disassembly and specialized procedures due to their location within the engine block’s oil galleries and proximity to critical engine components. The installation process typically requires 12-16 hours of labor depending on engine accessibility and whether additional maintenance is performed simultaneously, making it a significant undertaking usually combined with major engine service or rebuild procedures. Access to cooling nozzles requires removal of the oil pan, crankshaft, and connecting rods to reach the nozzle mounting locations within the engine block’s lower section, necessitating complete engine disassembly and careful component handling to prevent damage. Essential tools include precision torque wrenches, specialized nozzle installation tools, clean assembly lubricants, and measuring equipment for verifying proper nozzle positioning and oil flow characteristics. Critical installation procedures include thorough cleaning of nozzle mounting bores, inspection of oil gallery passages for blockages or damage, and verification of proper nozzle orientation to ensure optimal spray patterns onto piston undersides. New nozzles must be installed with precise torque specifications to prevent loosening under operating conditions while ensuring proper sealing to prevent oil leakage into the crankcase. Maintenance procedures include regular oil analysis to monitor cooling system effectiveness, periodic inspection during major engine service intervals, and replacement based on oil flow testing or visual inspection during engine overhaul. Preventive maintenance involves using high-quality engine oil and filters to prevent contamination buildup, maintaining proper oil change intervals to preserve nozzle flow characteristics, and addressing oil pressure problems promptly to ensure adequate cooling nozzle operation. Professional installation requires careful attention to cleanliness standards, proper torque procedures, and comprehensive testing to verify cooling system operation before returning the engine to service, making this a procedure best performed by experienced diesel technicians with Caterpillar expertise.

What quality standards and warranty support does HHP provide for the 2764637 cooling nozzle?

HHP’s 2764637 Caterpillar piston cooling nozzle undergoes rigorous manufacturing and quality control processes in ISO 9001:2015 certified facilities that ensure superior performance and reliability through comprehensive quality management systems and continuous improvement procedures. The ISO certification mandates stringent quality control protocols including detailed incoming material inspection, precision machining verification using advanced measuring equipment, and extensive final product testing that guarantees consistent manufacturing standards across all production batches. Each cooling nozzle receives meticulous inspection of critical dimensions including orifice diameter, spray angle specifications, mounting thread accuracy, and flow rate characteristics using calibrated test equipment to ensure optimal cooling performance and proper integration with existing engine lubrication systems. Quality control procedures include comprehensive flow testing to verify oil delivery rates, spray pattern analysis to confirm proper piston coverage, and pressure testing to ensure structural integrity under operating conditions typical of high-performance diesel applications. The manufacturing process utilizes premium materials specifically selected for exceptional durability under high-temperature, high-pressure conditions, with particular attention to corrosion resistance and dimensional stability that maintains proper flow characteristics throughout extended service intervals. HHP provides an industry-leading 2-year parts and labor warranty that covers manufacturing defects, premature component failure, and performance issues under normal heavy-duty operating conditions, demonstrating exceptional confidence in manufacturing quality while providing comprehensive financial protection that significantly exceeds typical aftermarket warranty coverage. Technical support services include direct access to ASE-certified diesel technicians with specialized expertise in Caterpillar cooling systems who provide detailed installation guidance, comprehensive troubleshooting assistance, and compatibility verification for specific engine applications. The extensive support infrastructure includes technical documentation, installation procedures, flow specification charts, and diagnostic assistance that ensures successful installation and optimal cooling system performance throughout the warranty period. This combination of rigorous manufacturing standards, comprehensive testing protocols, and extensive technical support makes HHP’s cooling nozzles the preferred choice for professional mechanics, fleet operators, and equipment owners requiring reliable thermal management components for their valuable Caterpillar engines operating in demanding commercial and industrial applications.
