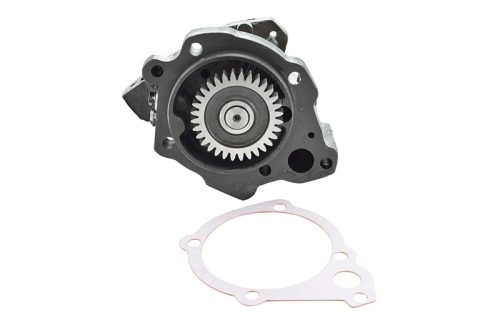

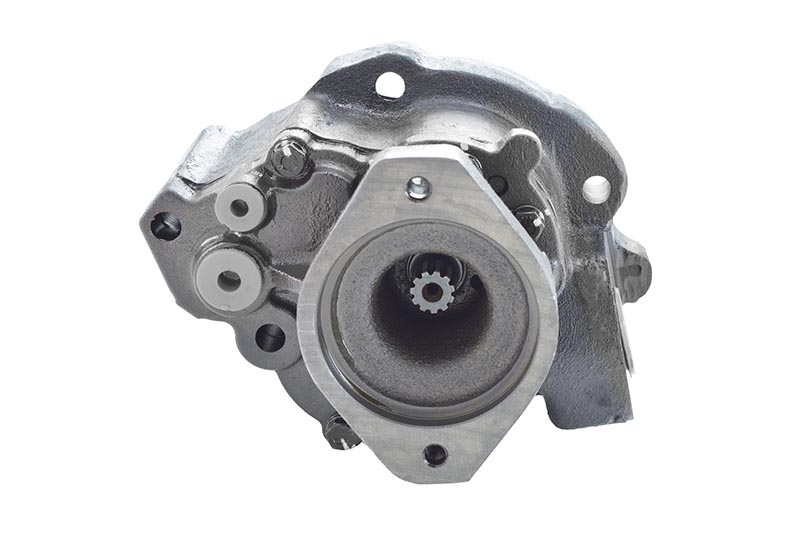

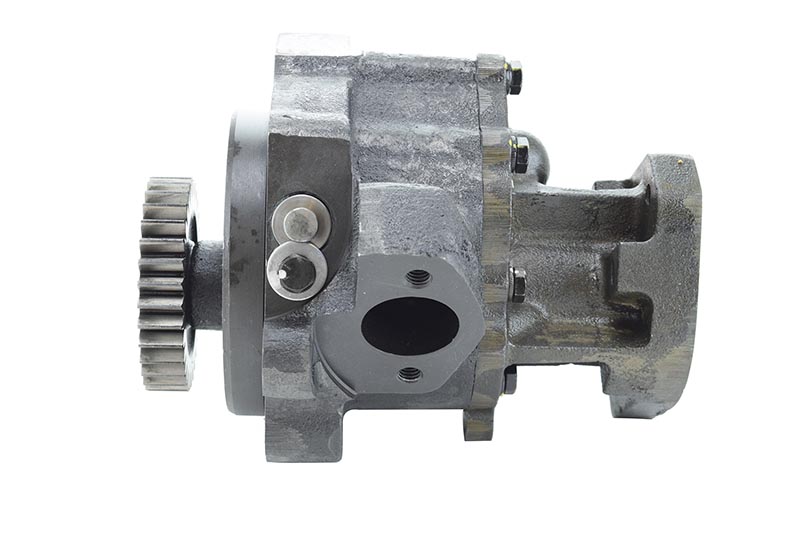

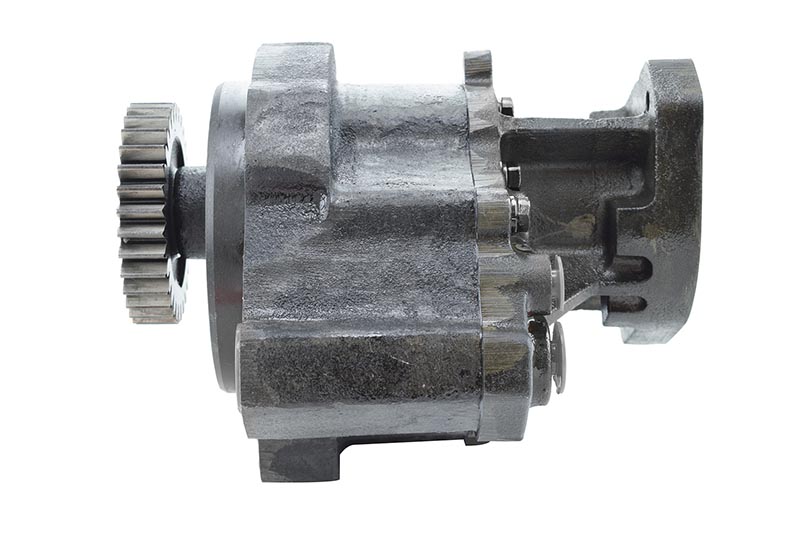

Cummins Oil Pump Assembly, New (141294)

Frequently Asked Questions

What Cummins engines are compatible with the 141294 oil pump assembly?

The 141294 oil pump assembly is engineered for Cummins N14 diesel engines, one of the most widely used heavy-duty engines in commercial trucking, construction equipment, and industrial applications throughout the 1990s and early 2000s. This oil pump also replaces Cummins part numbers 3803698 and 3609835, ensuring broad compatibility across multiple model years and engine configurations within the N14 family. The N14 engine series includes various displacement and power configurations, all utilizing similar lubrication system architecture that accommodates this specific oil pump design. Fleet operators managing N14-powered vehicles benefit from this standardized part number that simplifies inventory management and maintenance procedures across diverse equipment types. The N14 engine family encompasses naturally aspirated and turbocharged variants commonly found in over-the-road trucks, refuse haulers, concrete mixers, and other heavy-duty applications where reliable lubrication is critical for extended service life. This oil pump assembly is designed to handle the specific flow rate and pressure requirements of N14 engines, which demand consistent lubrication under extreme operating conditions including high load factors, extended idle periods, and demanding duty cycles. When selecting replacement oil pumps, verification of engine model and serial number ensures proper fitment, as variations in mounting configurations or drive mechanisms may exist between different production years. The robust design accommodates the N14’s reputation for durability and high-mileage capability, making proper lubrication system maintenance essential for achieving the engine’s potential for million-mile service intervals. HHP’s technical support team provides detailed compatibility verification and installation guidance to ensure optimal lubrication system performance and proper integration with existing N14 engine components.

What are the symptoms of oil pump failure in Cummins N14 engines?

Oil pump failure in Cummins N14 engines presents through progressive symptoms that require immediate attention to prevent catastrophic engine damage and costly rebuilds. Low oil pressure represents the most critical warning sign, typically manifesting through dashboard warning lights, gauge readings below normal operating ranges (usually below 10 PSI at idle or 30 PSI at highway speeds), or electronic engine protection systems that may derate power to prevent damage. Engine noise increases significantly with oil pump deterioration, including bearing knock, valve train chatter, and unusual mechanical sounds indicating insufficient lubrication reaching critical engine components such as main bearings, connecting rod bearings, and camshaft bearings. Oil pressure fluctuations during operation, where readings vary inconsistently or drop dramatically under load conditions, suggest internal pump wear affecting consistent flow delivery throughout the lubrication system. Turbocharger noise or performance degradation often accompanies oil pump problems, as turbochargers require consistent oil pressure for proper bearing lubrication and cooling, making them among the first components to show distress from inadequate oil flow. Advanced symptoms include metal particles appearing in oil analysis reports, indicating bearing or component wear from insufficient lubrication pressure and oil film breakdown. Engine overheating may occur simultaneously with oil pressure issues as inadequate lubrication increases friction and heat generation throughout the engine’s moving components. Oil consumption increases may indicate pump wear causing pressure loss and inadequate oil circulation to critical sealing areas. Professional diagnosis typically involves oil pressure testing at various RPM ranges, oil pump flow rate verification, and inspection of oil pickup screen condition to differentiate between pump failure and other lubrication system problems such as blocked screens or damaged oil passages requiring different repair approaches.

How does the 141294 oil pump assembly function in the N14 lubrication system?

The 141294 Cummins N14 oil pump assembly operates as the central component of the lubrication system, providing pressurized oil circulation essential for engine protection and optimal performance under demanding operating conditions. This gear-type oil pump utilizes precision-machined internal rotors that create suction to draw oil from the oil pan through the pickup screen and pressurize it for distribution throughout the engine’s extensive lubrication galleries. The pump receives mechanical drive from the engine’s crankshaft through gear reduction, ensuring oil flow remains synchronized with engine speed and load demands while maintaining consistent pressure across varying operating conditions. Internal pump design features outer and inner rotors with precisely controlled clearances that create expanding and contracting chambers to generate both suction and discharge pressure as they rotate within the pump housing. The assembly includes integrated pressure relief valves that regulate maximum system pressure, preventing over-pressurization that could damage seals or cause excessive oil consumption while ensuring adequate pressure reaches all critical engine components. Oil delivery from the pump flows through main galleries to prioritized engine components including crankshaft main bearings, connecting rod bearings, camshaft bearings, valve train components, turbocharger bearings, and piston cooling jets in equipped engines. The N14 lubrication system design ensures priority flow to the most critical bearing surfaces first, with secondary circuits receiving oil after primary lubrication requirements are satisfied. Proper oil pump function maintains consistent pressure across varying engine speeds, preserves oil film strength between moving components, provides cooling for high-temperature areas, removes contaminants through circulation to the filtration system, and ensures reliable lubrication delivery throughout the engine’s potential for million-mile service life that makes N14 engines renowned for exceptional durability.

What is the installation process for the 141294 Cummins N14 oil pump assembly?

Installing the 141294 Cummins N14 oil pump assembly requires comprehensive engine disassembly, specialized tools, and meticulous attention to cleanliness and proper procedures to ensure reliable lubrication system operation. The installation process typically requires 8-12 hours depending on engine accessibility, mechanic experience, and whether additional components require replacement during the repair procedure. Essential tools include engine lifting equipment for potential engine repositioning, comprehensive socket and wrench sets, precision torque wrenches with various ranges, gasket scraping tools, clean assembly lubricants, and measuring instruments for verifying proper component clearances. The procedure begins with complete engine oil drainage, removal of oil pan, oil pickup tube, and front engine covers to access the oil pump mounting location on the engine block. Front engine disassembly may be extensive, potentially requiring removal of cooling fans, radiator, front engine covers, crankshaft pulley, timing gear covers, and associated components to reach oil pump mounting bolts and drive gear connections. Critical preparation involves thoroughly cleaning all mating surfaces, inspecting pump drive gears for wear or damage, verifying proper timing gear alignment, and ensuring oil pump pickup tube positioning prevents air entry into the system. New oil pump installation requires careful attention to gasket positioning, proper application of thread sealers where specified, precise torque specifications for mounting bolts, and verification that pump rotors turn freely without binding or excessive clearance. Assembly procedures include installing new gaskets and seals throughout the front engine area, proper routing of oil pickup tube to prevent flow restrictions, and careful reassembly of timing gear components to maintain proper engine timing. Post-installation requirements include complete lubrication system refilling with specified oil grade, initial priming procedures to ensure pump cavity fills with oil, extended break-in periods with careful oil pressure monitoring, and comprehensive leak inspection before returning to normal service operations.

What quality standards and warranty support does HHP provide for the 141294 oil pump assembly?

HHP’s 141294 Cummins N14 oil pump assembly undergoes rigorous manufacturing and quality control processes that ensure superior performance and reliability through production in ISO 9001:2015 certified facilities with comprehensive quality management systems. The ISO certification mandates stringent quality control procedures including incoming material inspection, precision machining verification, assembly process monitoring, and final product testing that guarantees consistent manufacturing standards across all production runs. Each oil pump assembly receives detailed inspection of critical dimensions including rotor clearances, housing tolerances, mounting surface flatness, and drive gear specifications using precision measuring equipment to ensure optimal fit and pressure generation capabilities. Quality control procedures include comprehensive pressure testing to verify pump output characteristics, flow rate verification across various operating speeds, and endurance testing that simulates extended operating conditions to identify potential failure modes before shipment. The manufacturing process utilizes premium materials specifically selected for durability under high-pressure, high-temperature conditions typical of N14 heavy-duty applications, with particular attention to wear-resistant coatings and precision surface finishes that enhance pump longevity. HHP provides an industry-leading 2-year parts and labor warranty that covers manufacturing defects, premature component failure, and performance issues under normal operating conditions, demonstrating exceptional confidence in manufacturing quality and providing comprehensive protection that exceeds typical aftermarket warranty coverage. Technical support services include access to ASE-certified diesel technicians with specialized expertise in Cummins lubrication systems who provide detailed installation guidance, troubleshooting assistance, and compatibility verification for specific N14 applications. The support infrastructure includes comprehensive technical documentation, installation procedures, torque specification charts, and diagnostic assistance that ensures successful installation and optimal pump performance throughout the extended warranty period, making HHP’s oil pump assemblies the preferred choice for professional mechanics, fleet operators, and equipment owners requiring reliable lubrication system components for their valuable Cummins N14 engines.
