Description
Overview:
New in-frame engine rebuild kit 4024875, now listed as 4024881, for Cummins N14 engines, including NTA14-C, NTA14-E and N14-R models, CPL 1807, 1833, 2027, 2038, 2330, 2389, 2575 and 2590. Kits are CPL-specific, so check your engine data plate before ordering.

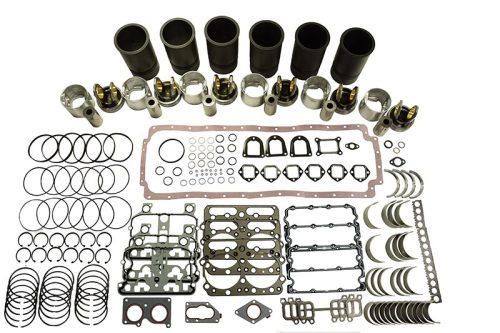

Kit Contents:
All components are new aftermarket parts. OE part numbers are listed for reference.

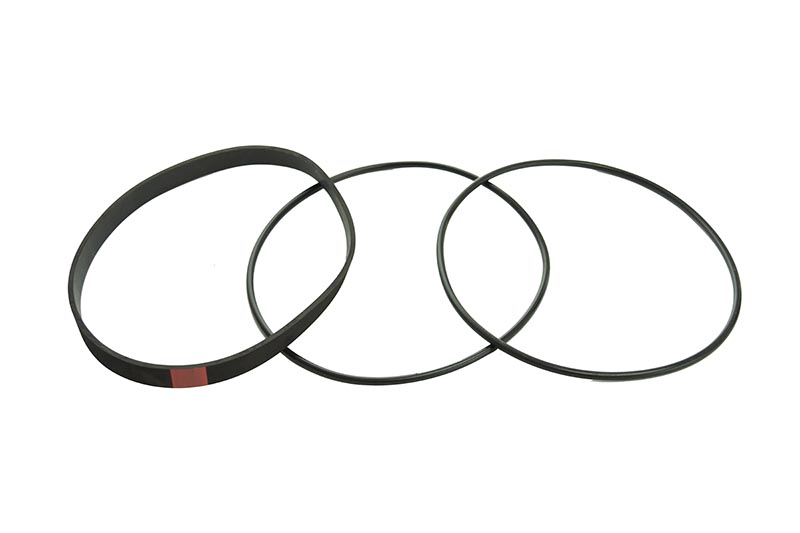

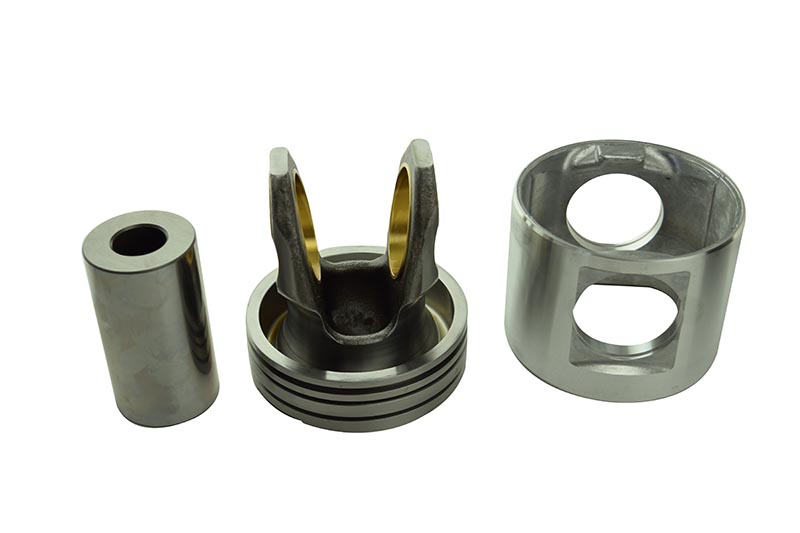

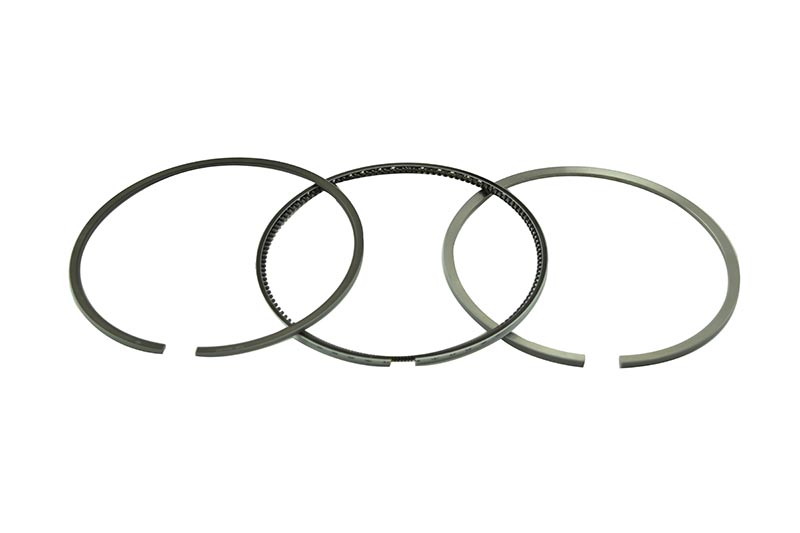

- 6 cylinder kits, each with a liner kit (3801826), piston ring set (4295801) and piston kit

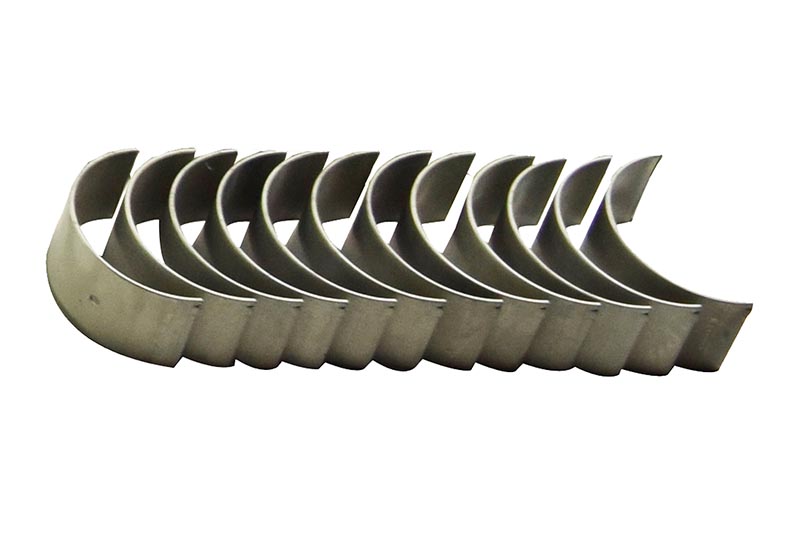

- 12 connecting rod bearings, standard (3055145)
- 2 main bearing kits (3801260, 3801260-100)
- 14 lockplates (3009213)
- 4 thrust bearings (3019218)
- 1 upper gasket set (4089371), made up of the gasket kits below
- Valve cover gasket kit: 3 rocker cover gaskets (3066311), 3 rocker gaskets (4058981), 1 O-ring (23505891)
- Cooling gasket kit: 1 thermostat gasket (3064313), 1 thermostat housing gasket (3865195), 1 thermostat housing cover gasket (3865236), 3 O-rings (446GC175), 6 O-rings (3050667)
- Exhaust gasket kit: 6 exhaust manifold gaskets (3020943), 3 exhaust manifold gaskets (3865235), 3 head gaskets (4058790)
- Turbocharger installation kit: 1 turbo mounting gasket (3069177), 1 connection gasket (201048), 1 O-ring (3037537)
- Intake gasket kit: 3 intake gaskets (3008591), 1 rectangular sealing ring (3068510)
- Fuel gasket kit: 12 O-rings (131026), injector O-ring kit with 6 each of O-rings 3070136, 3070137 and 3070138, 3 washers (590GB1352)
- 1 oil pan gasket installation kit (3804303): 1 oil pan gasket (3032861), 1 O-ring (3029847), 1 oil suction tube connection gasket (157551), 1 washer (67946), 1 rectangular sealing ring (3034986)
- 2 thermostats (4336659)
- 1 engine assembly lube, 4 oz tube
Specifications:
- Part number: 4024875
- Superseded by: 4024881
- PAI kit number: N14222-017
- Brand: PAI
- Condition: New Aftermarket
- Component type: In-frame engine rebuild kit
- CPL: 1807, 1833, 2027, 2038, 2330, 2389, 2575, 2590
- Engines: Cummins N14, NTA14-C, NTA14-E, N14-R
- Core: None
Compatibility / Fitment:
Fits Cummins N14, NTA14-C, NTA14-E and N14-R engines with CPL 1807, 1833, 2027, 2038, 2330, 2389, 2575 or 2590.
Hard fitment gate – CPL:
N14 in-frame kits are matched to the engine CPL and piston type. Read the CPL from your engine data plate and confirm it is listed above before ordering.
Key Features:
- All new parts
- Built to OEM specifications in an ISO 9001 certified facility
- Each part follows OE specifications and tolerances
Common interchanges: 4024875 / 4024881 / PAI N14222-017.
The 4024875 is a new in-frame rebuild kit for Cummins N14 engines, listed for CPL 1807, 1833, 2027, 2038, 2330, 2389, 2575 and 2590. Confirm your CPL before ordering.
