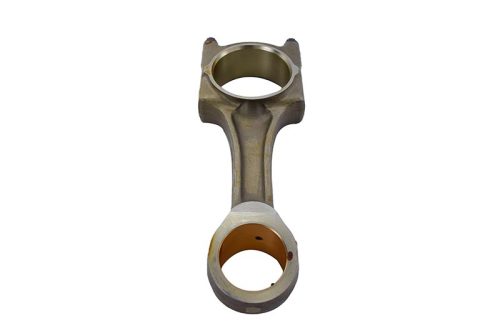

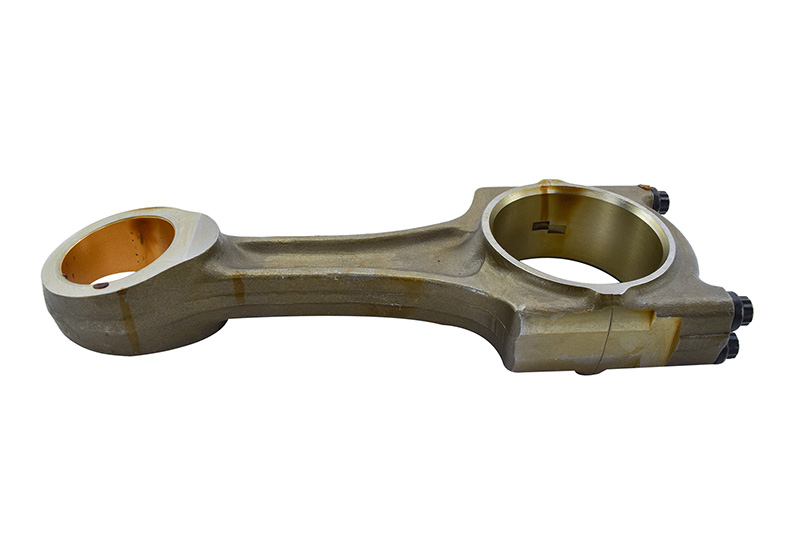

Cummins ISX Dual Cam, ISX Single Cam Connecting Rod, New (4059429)

Frequently Asked Questions

What is the function of the 4059429 connecting rod in Cummins ISX engines?

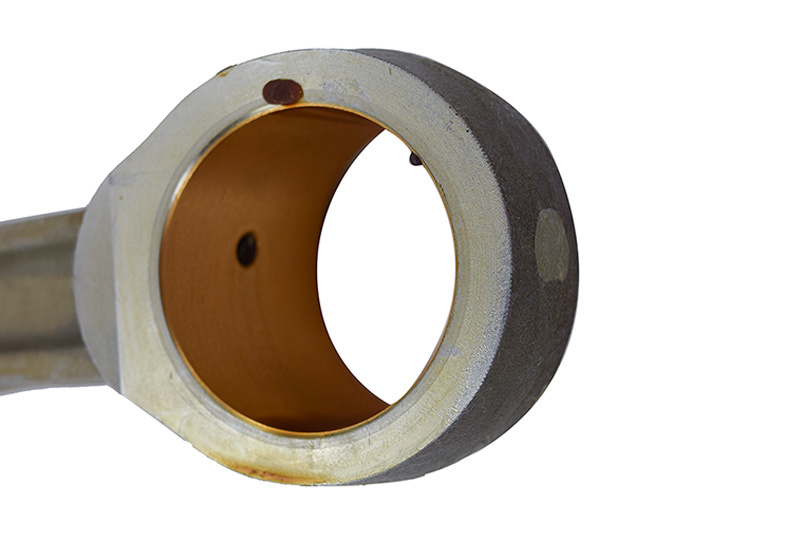

The 4059429 connecting rod serves as the vital mechanical link between the piston and crankshaft in Cummins ISX Dual Cam and Single Cam diesel engines, transferring tremendous combustion forces from the piston to the crankshaft while converting linear piston motion into rotational crankshaft motion that drives the vehicle. This precision-engineered component operates under extreme conditions typical of modern heavy-duty diesel engines, including combustion pressures exceeding 3,000 PSI and temperatures reaching over 1,800 degrees Fahrenheit, making it one of the most critical and highly stressed components in the entire engine assembly. The connecting rod’s small end features a precision-machined bore that accommodates the piston pin and bushing assembly, creating a pivoting connection that allows the piston to move linearly within the cylinder while the rod oscillates through its complex motion cycle during engine operation. The big end incorporates a split bearing cap design with precision-machined bearing surfaces that support the rotating crankshaft journal, utilizing replaceable bearing inserts that provide proper clearances and oil film retention essential for reliable operation throughout extended service intervals typical of commercial vehicle applications. During engine operation, the connecting rod experiences complex loading patterns including tension forces during intake and exhaust strokes, massive compression forces during the power stroke, and significant side loading from the angular motion created by the crankshaft offset geometry. The rod’s optimized I-beam cross-section provides superior strength-to-weight ratio, minimizing reciprocating mass to reduce internal friction and wear while maintaining exceptional structural integrity under the extreme operating conditions typical of ISX engines in demanding commercial applications. Proper connecting rod function is absolutely essential for engine reliability and performance, as component failure can result in catastrophic engine damage including crankcase penetration, crankshaft destruction, cylinder wall damage, or complete engine seizure requiring major rebuilds and significant operational downtime that can cost thousands of dollars in repairs and lost productivity.

Which Cummins engines are compatible with the 4059429 connecting rod?

The 4059429 connecting rod is specifically engineered for Cummins ISX Dual Cam and ISX Single Cam diesel engines, representing some of the most advanced and widely used heavy-duty engines in modern commercial trucking, construction equipment, and industrial applications. The ISX Dual Cam configuration features sophisticated valve train systems with dual overhead camshafts that provide precise valve timing control and enhanced breathing characteristics, while maintaining the same fundamental internal component specifications including connecting rod dimensions that ensure compatibility with this replacement part. The ISX Single Cam variant utilizes a simplified valve train design with a single camshaft configuration that reduces complexity while maintaining the proven reliability and performance characteristics expected from Cummins engines, sharing identical connecting rod specifications with the dual cam version for parts standardization and inventory simplification. Both engine configurations share the same 15-liter displacement, bore and stroke dimensions, piston pin specifications, and crankshaft journal sizes that allow this single connecting rod part number to provide optimal performance across all ISX variants with perfect interchangeability and reliability. Fleet operators managing Cummins-powered vehicles benefit from this standardized compatibility that simplifies inventory management, reduces parts complexity, and streamlines major engine repair procedures across different ISX configurations and model years. These engines are commonly found in over-the-road trucks, vocational vehicles, construction equipment, marine applications, and stationary power generation systems where reliable internal component performance is critical for sustained operation under demanding conditions including long-haul trucking, heavy construction work, and continuous industrial operation. The connecting rod design accommodates various horsepower ratings within the ISX family, from standard duty configurations producing 400-450 horsepower to high-performance variants generating over 600 horsepower, requiring enhanced strength characteristics for optimal power transmission and extended service life. When performing engine rebuilds or major internal repairs, verification of specific ISX engine model and serial number ensures proper fitment and optimal performance integration with existing crankshaft and piston assemblies while maintaining original equipment specifications and reliability standards essential for commercial vehicle applications.

What are the symptoms of connecting rod failure in Cummins ISX engines?

Connecting rod failure in Cummins ISX Dual Cam and Single Cam engines presents through distinctive and progressive symptoms that indicate serious internal engine damage requiring immediate attention to prevent catastrophic failure and complete engine destruction. Engine knocking represents the most critical and recognizable symptom of connecting rod bearing failure, typically manifesting as deep, rhythmic metallic knocking sounds that correspond directly to engine RPM and become increasingly severe under load conditions, indicating bearing surface deterioration or excessive clearances between the rod and crankshaft journal. Rod bearing knock produces a characteristic sound that differs from other engine noises, often described as a heavy metallic hammering that becomes more pronounced during acceleration and may be accompanied by reduced oil pressure readings that indicate compromised lubrication system performance throughout the engine. Excessive oil consumption frequently accompanies connecting rod problems, as worn or damaged rod bearings allow oil to escape into combustion chambers through compromised sealing or create pressure variations that affect piston ring sealing characteristics and overall engine lubrication efficiency. Metal particles detected in routine oil analysis provide crucial early warning signs of connecting rod bearing wear, indicating microscopic metal contamination from bearing surface deterioration that requires immediate investigation and potential engine disassembly for thorough inspection and repair. Oil pressure fluctuations or consistently low oil pressure readings may indicate connecting rod bearing clearance problems that affect overall lubrication system performance and threaten other critical engine components including main bearings, turbocharger systems, and valve train components. Engine vibration or rough operation often develops as connecting rod problems progress, as bearing wear creates mechanical irregularities that affect crankshaft balance and smooth power transmission throughout the operating range from idle to maximum load conditions. Advanced symptoms include visible metal contamination in engine oil appearing as metallic particles or discoloration, unusual engine noise during acceleration or deceleration phases, and electronic diagnostic codes related to engine performance irregularities that may indicate serious mechanical problems requiring immediate attention. Complete connecting rod failure represents a catastrophic emergency condition that can result in severe engine damage including crankcase penetration, crankshaft destruction, cylinder wall scoring, or complete engine seizure requiring major rebuild or complete engine replacement at costs exceeding tens of thousands of dollars.

How is the 4059429 connecting rod properly installed in Cummins ISX engines?

Installing the 4059429 Cummins ISX connecting rod requires complete engine disassembly, specialized precision tools, and meticulous attention to clearance specifications and torque procedures to ensure optimal engine performance and reliability throughout the extended service life expected from ISX engines. The installation process typically occurs during major engine overhauls or complete rebuilds, requiring 14-20 hours of skilled labor depending on engine accessibility within the vehicle chassis, mechanic experience with ISX engines, and whether additional internal components require replacement during the comprehensive repair procedure. Essential tools include precision measuring equipment for bearing clearance verification including micrometers and dial bore gauges, connecting rod installation tools specific to ISX applications, torque wrenches with angle measurement capabilities for proper bolt installation, plastigage for accurate clearance measurement, and clean assembly areas to prevent contamination during critical engine assembly procedures. The procedure begins with systematic engine disassembly including removal of cylinder heads, pistons, oil pan, crankshaft, and all related components to access connecting rod mounting locations and allow for proper inspection and measurement of all interfacing components. Critical preparation steps involve thorough inspection of crankshaft journals for wear, scoring, or dimensional irregularities using precision measuring equipment, verification of journal specifications against manufacturer tolerances, and assessment of cylinder bore conditions to ensure compatibility with replacement connecting rod assemblies and associated components. Connecting rod preparation includes installation of new rod bearings with proper clearance verification using plastigage or precision measuring techniques, ensuring bearing clearances fall within ISX manufacturer specifications typically ranging from .0015″ to .0035″ depending on specific engine requirements and operating conditions. Rod bolt installation requires precise torque procedures specific to ISX engines, including initial torque specifications around 81 ft-lbs followed by additional angle rotation measurements typically 90 degrees to achieve proper clamping force without overstressing the bolt or connecting rod assembly components. Assembly procedures include proper application of clean engine oil to all bearing surfaces, careful alignment of connecting rod caps to prevent bearing damage during installation, and verification of proper rod orientation and piston installation direction to maintain correct engine geometry and timing relationships. Post-installation verification includes crankshaft rotation testing to ensure smooth operation without binding or interference, final bearing clearance measurements to confirm proper installation, complete engine assembly with new gaskets and seals throughout, and comprehensive break-in procedures with careful monitoring of oil pressure, temperature, and engine performance before returning to normal service operations.

What quality standards and warranty coverage does HHP provide for ISX connecting rods?

HHP’s 4059429 Cummins ISX connecting rod undergoes rigorous manufacturing and quality control processes in ISO 9001:2015 certified facilities that ensure exceptional performance and reliability through comprehensive quality management systems specifically designed for critical heavy-duty diesel engine components. The ISO certification mandates stringent quality control protocols including detailed incoming material inspection of premium forged steel alloys specifically selected for ISX applications, precision machining verification using advanced coordinate measuring machines, and extensive final product testing that guarantees consistent dimensional accuracy and structural integrity across all production batches intended for demanding commercial service. Each connecting rod receives meticulous inspection of critical dimensions including big end and small end bore specifications, center-to-center length measurements with tolerances measured in thousandths of inches, bearing surface finish requirements essential for proper lubrication, and overall straightness tolerances using precision measuring equipment to ensure optimal fit and performance in ISX engines operating under extreme conditions. Advanced quality control procedures include comprehensive material testing to verify proper steel alloy composition and strength characteristics that meet or exceed OEM specifications, dimensional analysis using statistical process control methods to ensure consistency, surface finish verification for critical bearing surfaces, and structural integrity testing including magnaflux inspection to detect any microscopic cracks or material defects that could lead to premature failure. The manufacturing process utilizes premium forged steel alloys specifically engineered for ISX connecting rod applications, featuring optimized strength-to-weight ratios and exceptional fatigue resistance characteristics that provide superior durability under the extreme operating conditions typical of modern heavy-duty diesel engines in demanding commercial applications. Specialized manufacturing processes include precision CNC machining operations that achieve superior surface finishes on all bearing surfaces, controlled heat treatment procedures that optimize material strength and toughness characteristics, and final finishing operations that ensure dimensional accuracy and surface quality essential for reliable bearing operation throughout extended service intervals. HHP provides an industry-leading 2-year parts and labor warranty that covers manufacturing defects, material failures, dimensional inaccuracy, and performance issues under normal heavy-duty operating conditions, demonstrating exceptional confidence in manufacturing quality while providing comprehensive financial protection that significantly exceeds typical aftermarket warranty coverage periods. Technical support services include direct access to ASE-certified diesel technicians with specialized expertise in Cummins ISX engine assembly procedures who provide detailed installation guidance, precise clearance specifications, torque procedures, and comprehensive troubleshooting assistance for connecting rod installation and performance optimization. The extensive support infrastructure includes comprehensive technical documentation with detailed dimensional specifications, step-by-step installation procedures with complete torque charts, bearing clearance requirements specific to ISX applications, and ongoing diagnostic assistance that ensures successful installation and optimal connecting rod performance throughout the warranty period, making HHP’s connecting rods the preferred choice for professional engine rebuilders, fleet maintenance operations, and equipment owners requiring reliable internal engine components for their valuable ISX engines operating in critical commercial applications.
