Description
Having problems with your Cummins ISX15? A new rebuild kit from HHP may be just what you need!
Extend the life expectancy of your ISX15 with a quality 5405986 rebuild kit from the certified diesel experts. All engines hit this point eventually – you need a rebuild kit to keep things running. So where do you go? Naturally, you try the OE rebuild kit. It’s pricey, but it has everything you need, right? Believe it or not, some OE rebuild kits come with used parts. Would you do an engine overhaul with used parts? No way.
We believe in only using new, high quality parts in our 5405986 ISX15 Rebuild Kits. Each part follows OE specifications and tolerances, so you’re getting the best quality without breaking the bank. Our ISX15 Rebuild Kits are manufactured in an ISO 9001 certified facility, and are built with hard-wearing materials for long-lasting durability.
As an added bang for your buck, each 5405986 Cummins ISX15 Rebuild Kit comes with zero core charge and support from our ASE-certified technicians who are available to answer any of your questions from purchase to installation. With technical knowledge, quality products, fast shipping, and unbeatable customer service, HHP is the place to be.

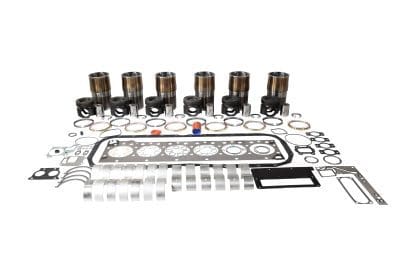

Contents:
- (6) Cylinder Kit
- (1) Piston Kit 4376566
- (1) Piston Kit
- (1) Piston 3687897
- (1) Piston Pin 4923748
- (2) Piston Pin Retainer 3064305
- (1) Piston Ring Set 2881756
- (1) Top Compression Piston Ring 3685095
- (1) Intermediate Piston Ring 3685672
- (1) Oil control Piston Ring 3682398
- (1) Ring Set Blanket Statement
- (1) Liner Kit 4376391
- (1) Liner Kit 4376391-100
- (1) Liner 4373362
- (1) Ring 3689871
- (1) Liner Shim 5298565
- (1) Liner Seal 3685234
- (1) Liner Kit 4376391-100
- (1) Oil Pan Gasket Kit
- (1) Oil Pan Gasket 4026684
- (1) O-ring 3678756
- (2) O-Ring 3678606
- (1) Oil relief Valve 4357177
- (1) Upper Gasket Kit 2881767
- (1) Seal 447GC216A
- (6) Injector Seal 2872717
- (1) O-ring 3033247
- (1) O-Ring 3102802
- (3) EGR Valve Gasket 3104230
- (1) Valve Cover Gasket 3104392
- (1) Injector O-Ring Kit
- (2) O-ring 3627695
- (1) Turbocharger Drain Seal 3678762
- (1) O-Ring 3678786
- (1) O-Ring 3678912
- (1) Cover Gasket 3679932
- (1) Housing Thermostat Gasket 3682673
- (4) Exhaust Gasket 3682710
- (2) Rectangular Sealing Ring 3682826
- (1) Exhaust gasket 3682940
- (1) Connection Water Gasket 3683607
- (5) O-ring 3683814
- (2) Exhaust Manifold Connection Gasket 3683940
- (2) Fitting Seal 3684284
- (1) Housing Thermostat Gasket 3684336
- (1) Outlet Gasket 3684359
- (1) Intake Manifold Gasket 3688347
- (2) O-Ring 3685124
- (1) Connection Water Gasket 3685456
- (1) Turbocharger Mounting Gasket 3685535
- (1) Cylinder Head Gasket 3685639
- (1) Front Cover Gasket 3686368
- (1) Electrical connector Gasket 3686525
- (2) EGR Tube Seal 3687051
- (2) O-Ring 3J7354
- (1) O-ring 3949708
- (1) O-ring Ring 3679139
- (1) O-ring 3957131
- (16) Seal 3963988
- (10) Fuel Fitting Seal 3963990
- (1) O-ring 23527273
- (1) O-Ring 4299125
- (2) Fuel Fitting Seal 3918190
- (1) Doser Injector Gasket 4963857
- (1) Exhaust Outlet Connection Gasket 4966441
- (6) O-Ring 6J2245
- (1) Rectangular Sealing Ring 4985660
- (1) Oil Return Gasket 3937706
- (1) Timing Cover Gasket 3687007
- (6) Standard Rod Bearing Kit 2882087
- (1) connecting Rod Bearing 3686435
- (1) Connecting Rod bearing 3686436
- (1) Main bearing Kit 3800298
- (1) Main Bearing Kit
- (4) Standard Thrust Washer 3680202
- (1) Oil Filter 4367100
