Description
Extra loud acceleration? Poor fuel efficiency? If so, your Detroit Diesel Series 60 14L may have a worn down or damaged exhaust system. As your Series 60 14L’s exhaust system wears, it can cause all sorts of engine issues and damage if not replaced. Fortunately for you, HHP has you covered! Replace your failing exhaust system with a New Exhaust Manifold Kit 681127 from Highway and Heavy Parts.
Don’t risk the health of your Series 60 14L; buy high-quality aftermarket 681127 Exhaust Manifold Kit from America’s trusted diesel engine parts supplier. At Highway and Heavy Parts, you’ll get a Exhaust Manifold Kit manufactured in an ISO 9001:2015 certified facility, ensuring quality and consistency for your Detroit Diesel Series 60 14L. Each part is crafted with hard-wearing strength and durability to ensure your 681127 Exhaust Manifold Kit can withstand the rigors of the road.
Guaranteed for fit and function, HHP parts have the right combination of quality and price with total support from our on-staff ASE-certified technicians. With specialized knowledge, quality products, fast shipping, and unbeatable customer service, HHP has you covered. Order your New Exhaust Manifold Kit 681127 today!
From diagnosis through delivery, we’re Highway & Heavy Parts!
Frequently Asked Questions
What makes the Detroit Diesel Series 60 14L different from other Series 60 variants?
The Detroit Diesel Series 60 14L represents the largest displacement variant in the Series 60 family, designed specifically for high-horsepower applications requiring maximum torque and power output. Understanding the 14L’s unique characteristics helps operators appreciate why specific components like the 681127 exhaust manifold kit are engineered for this particular configuration. The 14.0-liter displacement was achieved through increased bore and stroke dimensions compared to the more common 12.7L Series 60, resulting in significantly greater cylinder volume and combustion capacity. This larger displacement enabled Detroit Diesel to offer horsepower ratings ranging from 500 to 600 horsepower with torque outputs exceeding 2000 lb-ft in certain configurations, making the 14L ideal for heavy-haul applications, severe-duty vocational work, and operations requiring sustained high-power output. The Series 60 14L was introduced later in the Series 60 production timeline, primarily during the late 1990s and early 2000s, as Detroit Diesel responded to market demands for increased power without transitioning to entirely new engine platforms. The larger displacement necessitated specific component designs including reinforced cylinder blocks, heavy-duty crankshafts and connecting rods, enhanced cooling systems, and purpose-built exhaust manifolds capable of handling the increased exhaust gas volume and temperature generated by the larger cylinders. The exhaust manifold for the 14L variant differs from 11.1L and 12.7L versions because it must accommodate greater exhaust flow, withstand higher thermal loads, and potentially interface with larger turbochargers used in high-horsepower applications. The 681127 exhaust manifold kit is specifically engineered for the 14L’s unique port spacing, mounting configuration, and performance requirements, ensuring optimal exhaust gas collection and delivery to the turbocharger. Applications for the Series 60 14L typically included heavy-haul tractors pulling specialized equipment, mixer trucks and concrete pumpers requiring constant high-power output, logging trucks operating in mountainous terrain, heavy vocational chassis for demanding construction and mining applications, and specialty vehicles where maximum torque at lower RPM ranges was advantageous. When sourcing replacement parts for a Series 60 14L, it’s essential to specify the correct displacement variant because components like exhaust manifolds are not universally interchangeable across all Series 60 models despite family similarities.
What are the symptoms indicating my Series 60 14L exhaust manifold needs replacement?
Recognizing exhaust manifold failure symptoms on your Detroit Diesel Series 60 14L engine is crucial for preventing catastrophic damage and maintaining the high-performance capability these engines are designed to deliver. Extra loud acceleration represents the most immediately noticeable symptom, manifesting as an abnormally loud ticking, hissing, or roaring sound that becomes more pronounced as engine RPM increases and load is applied. This excessive noise occurs when the manifold develops cracks in the casting, when gaskets fail between the manifold and cylinder head, or when connections to the turbocharger deteriorate, allowing high-pressure exhaust gases to escape into the engine compartment rather than flowing through the proper exhaust pathway. The sound is distinctly different from normal exhaust noise and often has a sharp, metallic quality that may pulse in rhythm with engine firing order. Poor fuel efficiency is another critical indicator of manifold problems, particularly significant in high-horsepower 14L applications where fuel consumption already runs higher than smaller displacement engines. When exhaust leaks compromise the pressure and flow characteristics needed for optimal turbocharger operation, the engine’s DDEC electronic control system compensates by injecting additional fuel to maintain desired power output, potentially increasing fuel consumption by one to three miles per gallon depending on leak severity and operating conditions. For commercial operations logging 100,000 miles annually, this efficiency loss translates to thousands of dollars in unnecessary fuel costs. Loss of power, especially noticeable when pulling heavy loads or climbing grades where the 14L’s high torque output is most critical, occurs because exhaust leaks reduce turbocharger drive pressure, resulting in insufficient boost to generate the engine’s rated 500-600 horsepower capability. Operators may notice the engine struggling in situations where it previously performed confidently, requiring downshifting or extended throttle application to maintain speed. Visual inspection often reveals telltale exhaust soot streaks or carbon deposits around manifold flanges, stud locations, and turbocharger connections, clearly marking leak locations. Heat discoloration or blueing of the manifold surface indicates areas experiencing excessive temperatures from cracks or internal failures. You might detect a strong exhaust smell in the cab or around the engine compartment, particularly problematic because exhaust gases contain harmful carbon monoxide and other toxic compounds. Elevated exhaust gas temperature readings beyond normal parameters can indicate flow restrictions or leaks affecting system efficiency. In severe cases, visible exhaust gases may be seen escaping from the manifold area during operation, most noticeable during cold starts or under heavy load when exhaust pressure peaks.
What components are included in the 681127 exhaust manifold kit for Series 60 14L engines?

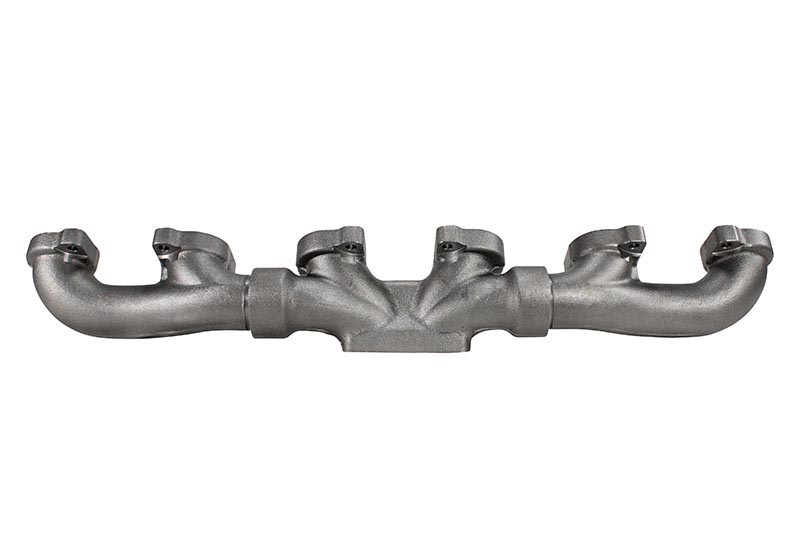

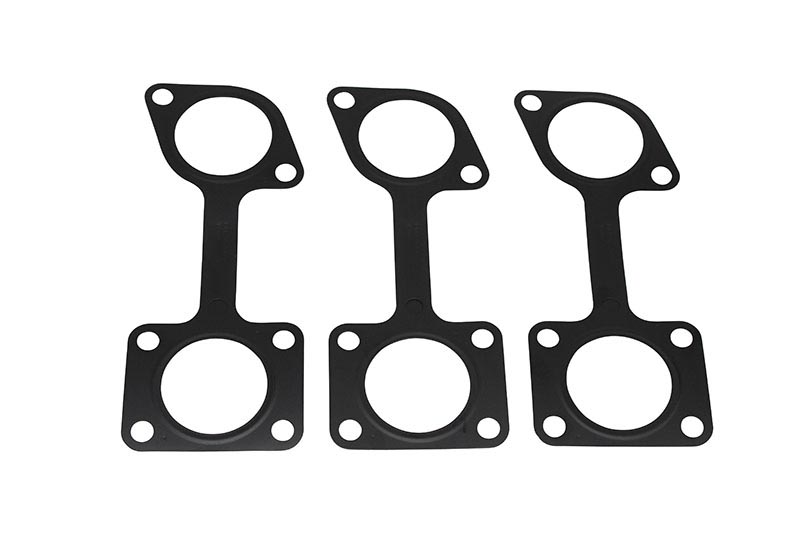

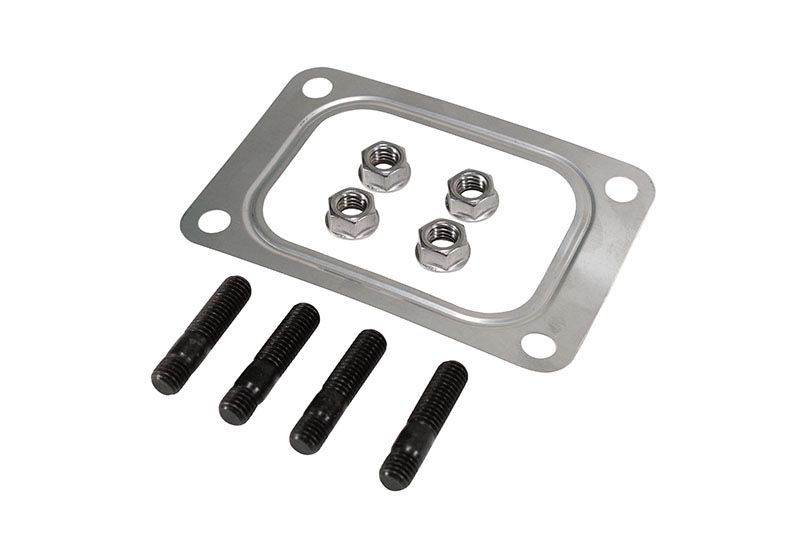

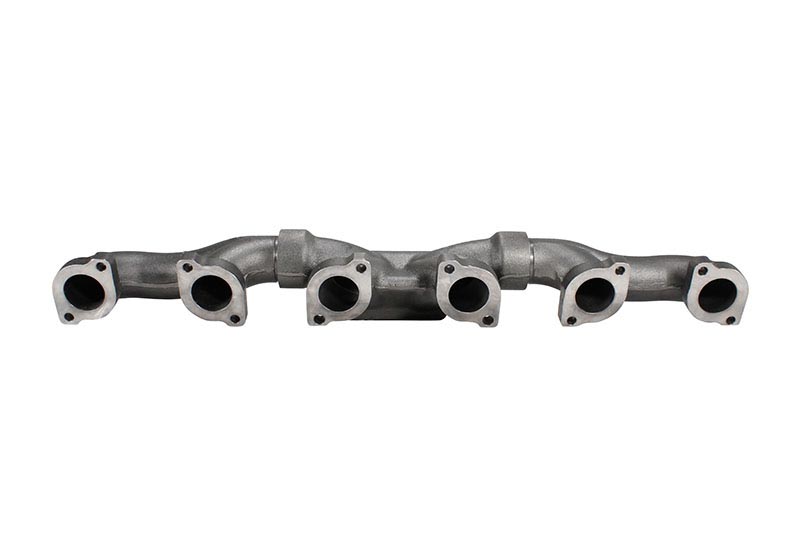

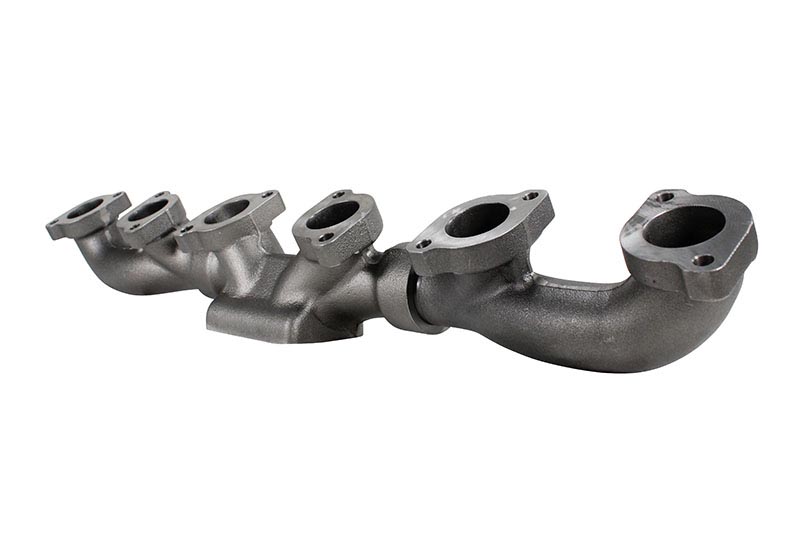

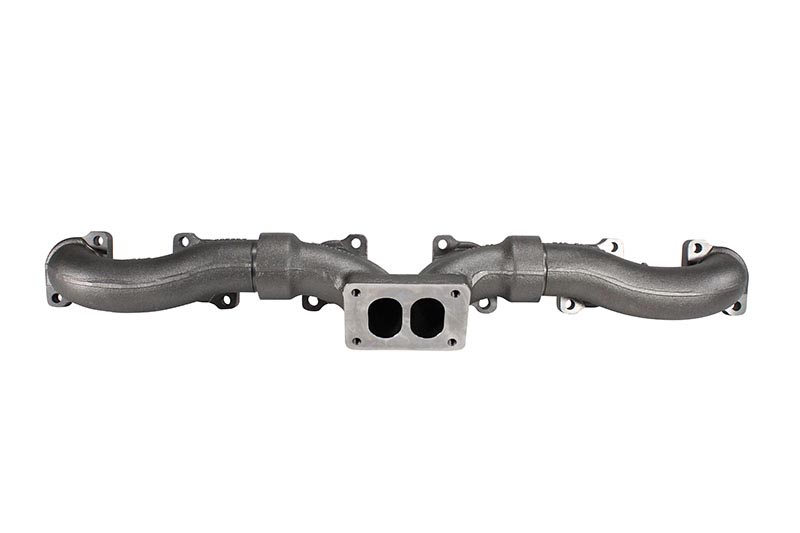

The 681127 exhaust manifold kit for Detroit Diesel Series 60 14L engines is engineered as a comprehensive replacement solution that includes all essential components necessary for complete, reliable installation. Understanding what’s included in the kit helps operators and technicians plan repairs efficiently and ensures no critical components are overlooked during installation. The primary component is the exhaust manifold casting itself, precision-manufactured from high-grade cast iron or ductile iron alloy specifically formulated to withstand the extreme thermal and mechanical stresses encountered in high-horsepower diesel applications. The Series 60 14L generates particularly high exhaust gas temperatures due to its large displacement and power output, so manifold materials must resist thermal fatigue, oxidation, and structural degradation through hundreds of thousands of miles of service. This manifold is produced in an ISO 9001:2015 certified manufacturing facility, ensuring consistent dimensional accuracy, proper port alignment with the cylinder head’s exhaust outlets, correct flange geometry for turbocharger mounting, and freedom from casting defects like porosity or inclusions that could become crack initiation points. The kit typically includes high-quality exhaust manifold gaskets designed to seal the critical interface between the cylinder head and manifold, manufactured from multi-layer steel, high-temperature composite materials, or graphite-based compounds with metal reinforcement capable of maintaining integrity despite extreme temperature cycling and constant pressure fluctuations. The turbocharger mounting gasket is generally included to seal the connection between the manifold outlet and turbocharger inlet flange, engineered to withstand direct exposure to exhaust gas flow at peak temperatures. A comprehensive hardware package accompanies the manifold and gaskets, consisting of manifold mounting studs or bolts, heavy-duty nuts designed to resist loosening under vibration and thermal cycling, hardened washers that distribute clamping loads evenly, and specialized lock tabs or retainers that prevent fastener rotation. This hardware is manufactured from heat-resistant alloy steel with protective coatings to prevent seizure, galling, and corrosion even after prolonged exposure to extreme temperatures. Some kit configurations may include additional components such as exhaust pyrometer sensor ports for temperature monitoring, mounting brackets or supports depending on specific applications, or adapter fittings for emissions equipment connections if applicable to certain Series 60 14L configurations. The comprehensive nature of this kit eliminates time-consuming parts sourcing and ensures all components are engineered to function together as a complete system, backed by Highway and Heavy Parts’ guarantee for fit and function.
How does proper exhaust manifold maintenance affect Series 60 14L engine longevity?
Proper exhaust manifold maintenance and timely replacement plays a pivotal role in maximizing Detroit Diesel Series 60 14L engine longevity, protecting expensive components, and maintaining the high-performance capability these engines are designed to deliver. Understanding these relationships helps operators appreciate why proactive manifold maintenance represents sound economic decision-making rather than optional expense. Turbocharger protection represents one of the most significant benefits of maintaining manifold integrity, as the turbocharger constitutes one of the most expensive and failure-prone components on Series 60 engines. Exhaust manifold leaks reduce drive pressure reaching the turbocharger turbine, forcing it to operate outside design parameters with insufficient lubrication flow, elevated bearing temperatures, and erratic pressure conditions that accelerate wear on turbine wheels, compressor wheels, shaft bearings, and sealing systems. A failed turbocharger can cost several thousand dollars to replace and cause extensive secondary damage if turbine wheel fragments enter the intake system or if oil starvation occurs. Maintaining a leak-free manifold ensures the turbocharger operates within design specifications, dramatically extending its service life. Cylinder head and valve train protection depends on proper exhaust flow and temperature management, both affected by manifold condition. When manifold cracks or restrictions impede exhaust flow, backpressure increases, elevating combustion chamber temperatures and exhaust valve temperatures beyond design limits. This thermal stress accelerates valve seat recession, exhaust valve burning, and cylinder head cracking, particularly problematic in the Series 60 14L’s high-output configuration where thermal loads already approach material limits. Proper manifold function maintains optimal exhaust flow and temperature distribution, protecting these critical components. Engine block and cooling system longevity benefit from controlled heat management that proper manifold sealing provides. Exhaust leaks direct high-temperature gases against engine block surfaces, coolant passages, and cylinder liner areas, creating localized overheating that can cause liner cavitation, coolant passage erosion, and block cracking. The Series 60’s wet liner design makes it particularly susceptible to cavitation damage from overheating, making exhaust system integrity crucial for protecting this fundamental engine architecture. Peripheral component protection extends manifold maintenance benefits beyond the engine itself, as exhaust leaks generate excessive heat in the engine compartment that damages electrical wiring harnesses, melts sensor connectors, degrades rubber hoses and mounts, accelerates starter motor failure, affects air conditioning system components, and causes premature deterioration of paint and corrosion-protective coatings. Operating cost management is significantly impacted by manifold condition, as fuel efficiency losses from exhaust leaks directly affect profitability in commercial operations.
What installation best practices ensure maximum service life from the 681127 manifold kit?
Achieving maximum service life from your 681127 exhaust manifold kit on a Detroit Diesel Series 60 14L engine requires meticulous attention to installation best practices that address the unique demands of this high-output engine configuration. Proper installation techniques can extend manifold life from tens of thousands to several hundred thousand miles while preventing premature failure and repeat repairs. Pre-installation preparation begins with comprehensive inspection of all components that interface with the exhaust manifold, including cylinder head exhaust port surfaces, mounting stud holes, turbocharger inlet flange, and all brackets and supports. The cylinder head surface must be thoroughly cleaned using appropriate scrapers, wire brushes, and solvent to remove all traces of old gasket material, carbon deposits, and corrosion. Inspect the cylinder head surface carefully for warping, cracking, or erosion around exhaust ports, as these conditions will prevent proper sealing regardless of new manifold quality. Use a precision straightedge and feeler gauges to check head surface flatness, and address any warping before proceeding with installation. Examine all mounting stud holes for damaged threads, and use thread chasers or taps to clean and restore threads if necessary. Damaged studs should be replaced using proper extraction techniques and thread repair procedures to ensure reliable clamping force. Component selection and verification includes confirming that all gaskets, hardware, and accessories included in the kit are correct for your specific Series 60 14L configuration. Verify part numbers against your engine serial number and application to ensure compatibility. Inspect all new components for shipping damage or manufacturing defects before installation begins, as identifying issues before assembly prevents frustrating teardowns and delays. Gasket installation requires careful positioning to ensure all bolt holes, coolant passages, and exhaust ports align correctly with both the cylinder head and manifold. Install gaskets dry unless manufacturer specifications explicitly call for sealant application, as improper sealant use can create leaks or cause gasket failure. Some high-performance applications may benefit from copper spray gasket dressing on manifold gaskets, but verify compatibility with your specific gasket material before application. Manifold positioning and alignment must be verified before beginning bolt installation, ensuring the manifold sits flush against the cylinder head surface without binding, gaps, or angular misalignment. The turbocharger mounting flange should align naturally with the turbocharger inlet without forcing or shimming, as misalignment creates stress concentrations that accelerate cracking. If alignment issues exist, identify and correct the root cause rather than forcing components together. Fastener installation and torque procedure represents the most critical aspect of manifold installation and must follow Detroit Diesel specifications exactly. Begin by installing all mounting bolts or studs finger-tight to ensure proper thread engagement and component positioning. Using a properly calibrated torque wrench, tighten all fasteners following the prescribed sequence, typically starting from center bolts and working outward in a cross-pattern. Perform tightening in multiple stages, bringing all fasteners to one-third of final torque specification first, then two-thirds, and finally to full specification in the same sequence. This graduated approach ensures even load distribution and prevents manifold warping. Apply appropriate anti-seize compound to threads sparingly, being careful not to contaminate gasket surfaces or allow excess to enter exhaust passages. Post-installation procedures include careful initial startup with thorough inspection for exhaust leaks before the system reaches full operating temperature. Listen carefully for any hissing or ticking sounds indicating leaks, and visually inspect all connections for escaping gases. After several complete heat cycles, allow the engine to cool completely and perform re-torque procedures on all manifold fasteners, as initial thermal cycling causes slight settling that should be corrected. Follow up with periodic inspections during the first several thousand miles of operation to ensure all connections remain secure and leak-free.
