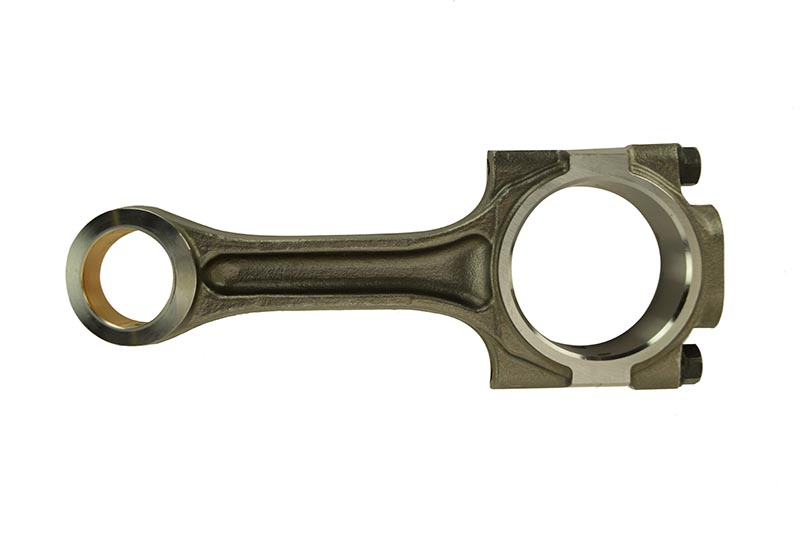

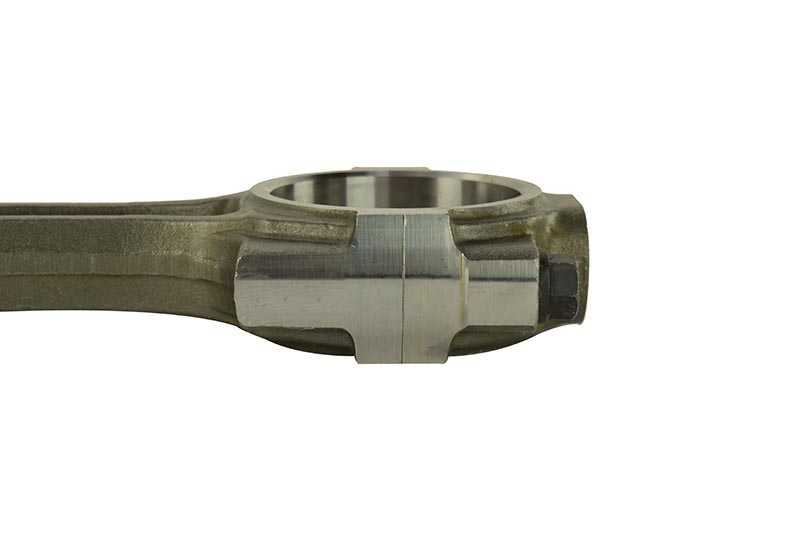

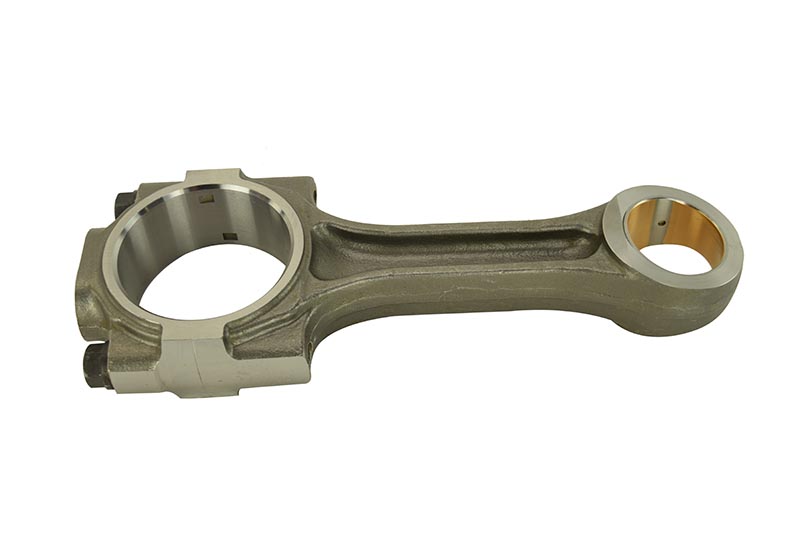

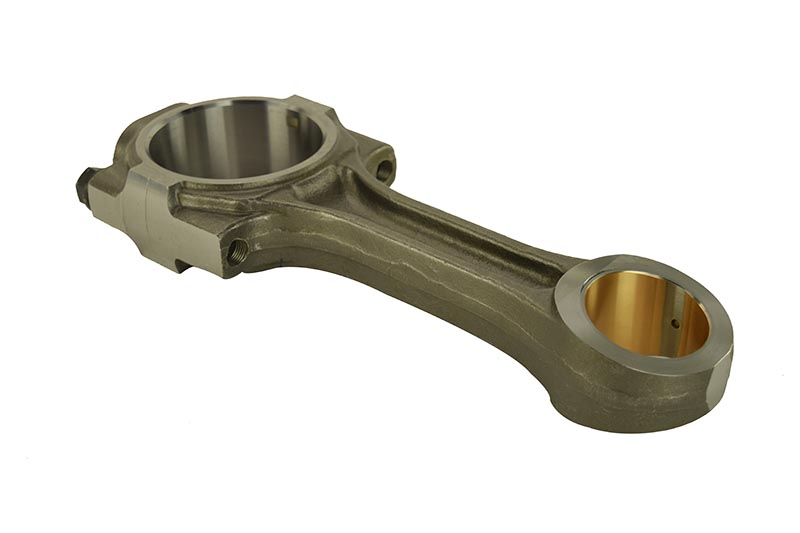

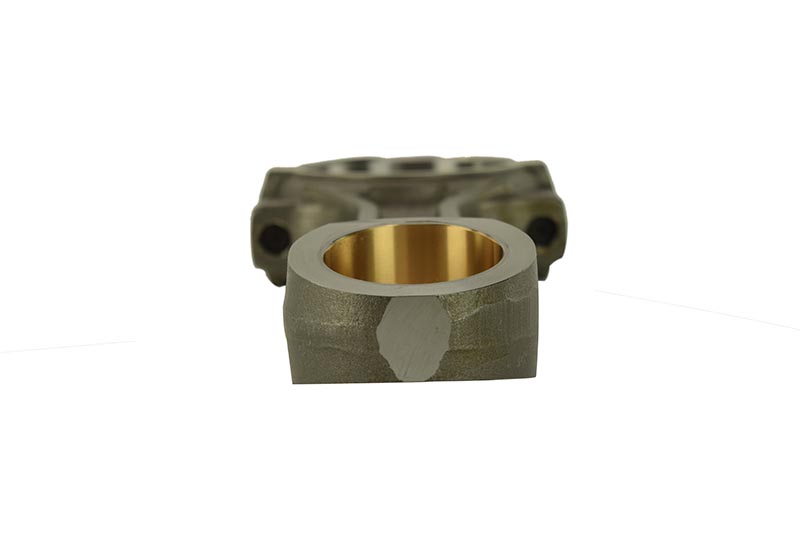

Caterpillar C15, 3406E Connecting Rod, New (9Y6048)

Frequently Asked Questions: 9Y6048 Connecting Rod in Caterpillar C15 and 3406E Engines

What is the function of the 9Y6048 connecting rod in Caterpillar C15 and 3406E engines?

The 9Y6048 connecting rod serves as the critical mechanical link between the piston and crankshaft in Caterpillar C15 and 3406E diesel engines, transferring combustion forces from the piston to the crankshaft while converting linear piston motion into rotational crankshaft motion that drives the vehicle or equipment. This precision-engineered component operates under extreme conditions, including combustion pressures exceeding 2,500 PSI and temperatures reaching over 1,500 degrees Fahrenheit, making it one of the most highly stressed components in the entire engine assembly. The connecting rod’s upper end features a precision-machined bore that accommodates the piston pin and bushing assembly, creating a pivoting connection that allows the piston to move linearly within the cylinder while the rod oscillates through its stroke cycle. The lower end incorporates a split bearing cap design with precision-machined bearing surfaces that support the rotating crankshaft journal, utilizing replaceable bearing inserts that provide proper clearances and oil film retention for reliable operation throughout extended service intervals. During engine operation, the connecting rod experiences complex loading patterns including tension forces during the intake and exhaust strokes, compression forces during the power stroke, and significant side loading from the angular motion created by the crankshaft offset. The rod’s I-beam cross-section provides optimal strength-to-weight ratio, minimizing reciprocating mass while maintaining structural integrity under extreme operating conditions typical of heavy-duty commercial applications. Proper connecting rod function is absolutely essential for engine reliability, as component failure can result in catastrophic engine damage including crankcase penetration, crankshaft damage, or complete engine destruction requiring major repairs. The precision manufacturing tolerances and material specifications ensure proper piston positioning, optimal compression ratios, and smooth power transmission throughout the engine’s operational range from idle to maximum load conditions in demanding commercial vehicle applications.

Which Caterpillar engines are compatible with the 9Y6048 connecting rod?

The 9Y6048 connecting rod is specifically engineered for Caterpillar C15 and 3406E diesel engines, two of the most reliable and widely used heavy-duty engines in commercial trucking, construction equipment, and industrial applications throughout the 1990s and 2000s. This connecting rod also replaces Caterpillar part numbers 9Y6054 and 0R3780, ensuring broad compatibility across multiple model years and engine configurations within these proven engine families. The 3406E represents the electronic evolution of Caterpillar’s legendary 3406 engine platform, incorporating advanced electronic fuel injection and engine management systems while maintaining the robust internal components including connecting rod specifications that ensure compatibility with this replacement part. The C15 engine, which succeeded the 3406E in Caterpillar’s lineup, continues utilizing the same fundamental connecting rod design and dimensional specifications despite enhanced performance capabilities, improved emissions control systems, and advanced turbocharging technologies. Both engines share identical bore and stroke dimensions, piston pin specifications, and crankshaft journal sizes that allow this single connecting rod part number to provide optimal performance across both engine types with perfect interchangeability. Fleet operators managing mixed Caterpillar fleets benefit from this standardized compatibility that simplifies inventory management, reduces parts complexity, and streamlines major engine repair procedures across different engine models and production years. These engines are commonly found in over-the-road trucks, vocational vehicles, construction equipment, marine applications, and stationary power generation systems where reliable internal component performance is critical for sustained operation under demanding conditions. The connecting rod design accommodates various horsepower ratings within both engine families, from standard duty configurations to high-performance variants requiring enhanced strength characteristics for optimal power transmission and durability. When performing engine rebuilds or major repairs, verification of engine model and serial number ensures proper fitment and optimal performance integration with existing crankshaft and piston assemblies while maintaining original equipment specifications and reliability standards.

What are the symptoms of connecting rod problems in Caterpillar engines?

Connecting rod problems in Caterpillar C15 and 3406E engines present through distinctive symptoms that indicate serious internal engine damage requiring immediate attention to prevent catastrophic failure and complete engine destruction. Engine knocking represents the most common and critical symptom of connecting rod bearing failure, typically manifesting as deep metallic knocking sounds that become more pronounced under load conditions and may indicate bearing surface deterioration or excessive clearances between the rod and crankshaft journal. Rod bearing knock produces a distinctive rhythmic knocking sound that corresponds to engine RPM and becomes increasingly severe as bearing damage progresses, often accompanied by reduced oil pressure readings that indicate compromised lubrication system performance. Excessive oil consumption often accompanies connecting rod problems, as worn or damaged rod bearings allow oil to escape into combustion chambers or create pressure variations that affect piston ring sealing and overall engine lubrication characteristics. Metal particles detected in routine oil analysis provide early warning of connecting rod bearing wear, indicating microscopic metal contamination from bearing surface deterioration that requires immediate investigation and potential engine disassembly for inspection. Oil pressure fluctuations or consistently low oil pressure readings may indicate connecting rod bearing clearance problems affecting overall lubrication system performance and threatening other critical engine components including main bearings and turbocharger systems. Engine vibration or rough operation often accompanies connecting rod problems, as bearing wear creates mechanical irregularities that affect crankshaft balance and smooth power transmission throughout the operating range. Advanced symptoms include visible metal contamination in engine oil, unusual engine noise during acceleration or deceleration, and electronic diagnostic codes related to engine performance irregularities or crankshaft position sensor readings that may indicate mechanical problems. Complete connecting rod failure represents an emergency condition that can result in catastrophic engine damage including crankcase penetration, crankshaft damage, cylinder wall scoring, or complete engine seizure requiring major rebuild or replacement. Early detection and immediate engine shutdown upon recognition of rod bearing symptoms prevents extensive collateral damage and reduces repair costs in critical commercial applications where engine reliability directly impacts operational profitability.

What is the installation process for the 9Y6048 connecting rod?

Installing the 9Y6048 Caterpillar C15 or 3406E connecting rod requires complete engine disassembly, specialized precision tools, and meticulous attention to clearance specifications and torque procedures to ensure optimal engine performance and reliability throughout the service life. The installation process typically occurs during major engine overhauls or rebuilds, requiring 12-16 hours of skilled labor depending on engine accessibility, mechanic experience, and whether additional internal components require replacement during the comprehensive repair procedure. Essential tools include precision measuring equipment for bearing clearance verification, connecting rod installation tools, torque wrenches with angle measurement capabilities, plastigage for clearance measurement, micrometers for dimensional verification, and clean assembly areas to prevent contamination during critical engine assembly procedures. The procedure begins with complete engine disassembly including removal of cylinder heads, pistons, oil pan, and crankshaft to access connecting rod mounting locations and allow for proper inspection and measurement of all related components. Critical preparation steps involve thorough inspection of crankshaft journals for wear or damage, verification of journal dimensional specifications using precision measuring equipment, and assessment of cylinder bore conditions to ensure compatibility with replacement connecting rod assemblies. Connecting rod preparation includes installation of new rod bearings with proper clearance verification using plastigage or precision measuring techniques, ensuring bearing clearances fall within manufacturer specifications typically ranging from .0015″ to .0035″ depending on specific engine requirements. Rod bolt installation requires precise torque procedures including initial torque specifications followed by additional angle rotation measurements to achieve proper clamping force without overstressing the bolt or rod assembly, typically involving torque values around 74 ft-lbs plus 90-degree rotation. Assembly procedures include proper application of engine oil to all bearing surfaces, careful alignment of connecting rod caps to prevent bearing damage, and verification of proper rod orientation and piston installation direction to maintain correct engine geometry. Post-installation procedures include crankshaft rotation testing to verify smooth operation without binding, final clearance verification measurements, complete engine assembly with new gaskets and seals, and comprehensive break-in procedures with careful monitoring of oil pressure and engine performance before returning to normal service operations.

What quality standards and warranty coverage does HHP provide for connecting rods?

HHP’s 9Y6048 Caterpillar connecting rod undergoes rigorous manufacturing and quality control processes in ISO 9001:2015 certified facilities that ensure exceptional performance and reliability through comprehensive quality management systems specifically designed for critical engine components. The ISO certification mandates stringent quality control protocols including detailed incoming material inspection of premium forged steel alloys, precision machining verification using coordinate measuring machines, and extensive final product testing that guarantees consistent dimensional accuracy and structural integrity across all production batches. Each connecting rod receives meticulous inspection of critical dimensions including big end and small end bore specifications, center-to-center length measurements, bearing surface finish requirements, and overall straightness tolerances using precision measuring equipment to ensure optimal fit and performance in demanding heavy-duty applications. Advanced quality control procedures include comprehensive material testing to verify proper steel alloy composition and strength characteristics, dimensional analysis using statistical process control methods, surface finish verification for bearing surfaces, and structural integrity testing including magnaflux inspection to detect any microscopic cracks or material defects. The manufacturing process utilizes premium forged steel alloys specifically selected for connecting rod applications, featuring optimal strength-to-weight ratios and fatigue resistance characteristics that provide superior durability under extreme operating conditions typical of heavy-duty diesel engines operating in commercial applications. Specialized manufacturing processes include precision machining operations that achieve superior surface finishes on bearing surfaces, controlled heat treatment procedures that optimize material strength characteristics, and final finishing operations that ensure dimensional accuracy and surface quality essential for reliable bearing operation and extended service life. HHP provides an industry-leading 2-year parts and labor warranty that covers manufacturing defects, material failures, and dimensional inaccuracy under normal heavy-duty operating conditions, demonstrating exceptional confidence in manufacturing quality while providing comprehensive financial protection that significantly exceeds typical aftermarket warranty coverage. Technical support services include direct access to ASE-certified diesel technicians with specialized expertise in Caterpillar engine assembly procedures who provide detailed installation guidance, clearance specifications, torque procedures, and troubleshooting assistance for connecting rod installation and performance issues. The extensive support infrastructure includes comprehensive technical documentation with dimensional specifications, installation procedures with torque charts, bearing clearance requirements, and diagnostic assistance that ensures successful installation and optimal connecting rod performance throughout the warranty period. This combination of rigorous manufacturing standards, precision quality control, and extensive technical support makes HHP’s connecting rods the preferred choice for professional engine rebuilders, fleet maintenance operations, and equipment owners requiring reliable internal engine components for their valuable Caterpillar engines operating in demanding commercial applications where component reliability directly impacts engine performance and operational success.
