OEM Quality Aftermarket Badge

Caterpillar C15, 3406E Inframe Engine Rebuild Kit, New (C15111010)

Order by 2PM EST and in stock items will ship same day (M–F)

$3,992.98

We Will Finance Your Repair.

Just select Paypal - Pay Later or Sezzle at checkout.

• PayPal - Pay Later


Pay in 4

Split your purchase into 4 interest-free, bi-weekly payments.

APR: 0%
4 interest free payments
No sign-up or late fees
Purchase protection included
Autopay available

• min cart total $30
• max cart total $1,500

Pay Monthly

Enjoy the flexibility of 3, 6, 12, or 24 month payment plans with $0 down.

APR: 9.99 to 35.99%
Monthly installments
No sign-up or late fees
Purchase protection included
Autopay available

• min cart total $49
• max cart total $10,000

Pay Monthly is subject to consumer credit approval and eligibility. Pay in 4 is available to consumers upon approval for purchases of $30 to $1,500.

More details

• Sezzle


3 flexible, pay in 4, payment plans for your budget!

1

0% interest.
No credit check.
25% today, 25% every 2 weeks

• min cart total $15
• max cart total $2,500

2

0% interest.
No credit check.
50% today, 50% in 2 weeks

• min cart total $15
• max cart total $2,500

3

0% or variable APR
Soft credit check.
Dynamic installment options

• min cart total $15
• max cart total $15,000

No credit check required Instant credit decision Opt in to free credit reporting

Signing up for Sezzle will not impact your credit score. Subject to approval.

More details

— Drop in your engine number and we’ll double-check it’s the perfect fit before we ship, no guesswork needed.

Condition: New


Fast Shipping


Easy Returns


Expert Support

HHP#: P336493

Description

In Frame Kit for Caterpillar 3406E, C15 – Part Number C15111-010

Why Choose Our New In Frame Kit for the ISX Single Cam?

  • 2 Year Parts and Labor Warranty
  • Built to OEM Spec
  • All Brand new parts

IMPROVE PERFORMANCE AND EXTEND THE LIFE OF YOUR DIESEL ENGINE

HHP’s In Frame Kit Caterpillar 3406E, C15 produces a higher level of performance than OE parts and increases the life of your 3406E, C15 diesel engine. Our In Frame Kit is engineered as an upgraded replacement to the OEM part with a perfect fit for easy installation. Built to OEM spec, 2 year parts and labor warranty.

Extend the life expectancy of your C15 with a quality C15111010 rebuild kit from the certified diesel experts. All engines hit this point eventually – you need a rebuild kit to keep things running. So where do you go? Naturally, you try the OE rebuild kit. It’s pricey, but it has everything you need, right? Believe it or not, some OE rebuild kits come with used parts. Would you do an engine overhaul with used parts? No way.

We believe in only using new, high quality parts in our C15111010 C15 Rebuild Kits. Each part follows OE specifications and tolerances, so you’re getting the best quality without breaking the bank. Our C15 Rebuild Kits are manufactured in an ISO 9001 certified facility, and are built with hard-wearing materials for long-lasting durability.

As an added bang for your buck, each C15111010 Caterpillar C15 Rebuild Kit comes with zero core charge and support from our ASE-certified technicians who are available to answer any of your questions from purchase to installation. With technical knowledge, quality products, fast shipping, and unbeatable customer service, HHP is the place to be.

Details for Caterpillar C15, 3406E Inframe Engine Rebuild Kit, New...

Weight 241.2 lbs
Dimensions 46 × 16 × 17 in
Vendor Warranty

2 Year Unlimited Mileage Parts Warranty

Condition

Additional Shipping & Return Information

C15111-010, C15111010

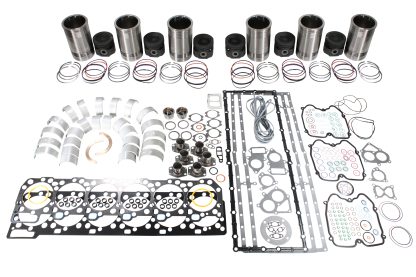

  • (1) Inframe Engine Kit C15111-010

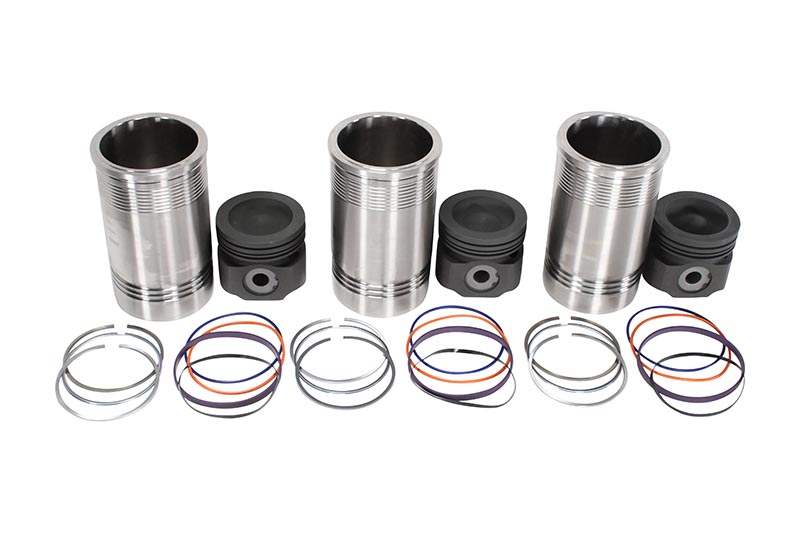

  • (6) Cylinder Kits
  • (1) Monotherm Piston Kit
  • (1) Monotherm Piston
  • (1) Piston Pin
  • (2) Internal Retainer Rings, 97AX126
  • (1) Piston Ring Set
  • (1) Compression Ring, 1777496
  • (1) Intermediate Piston Ring, 1765749
  • (1) Oil Control Piston Ring
  • (1) Ring Set Blanket Statement, G

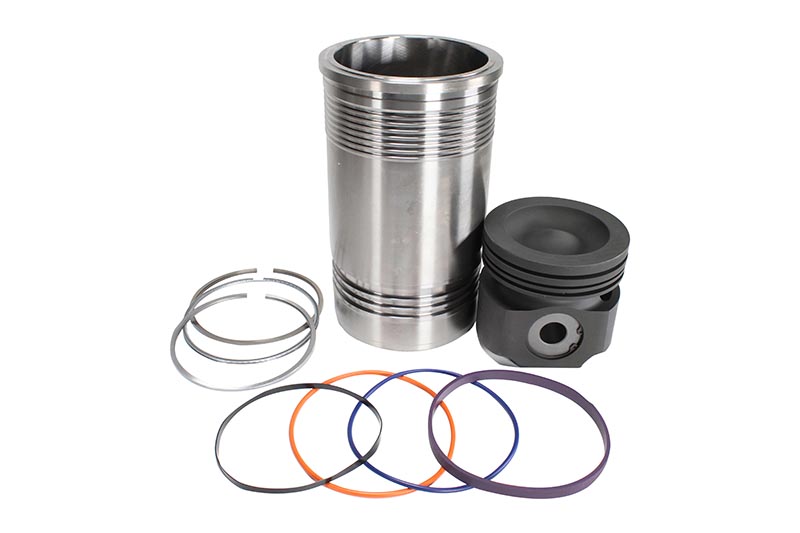

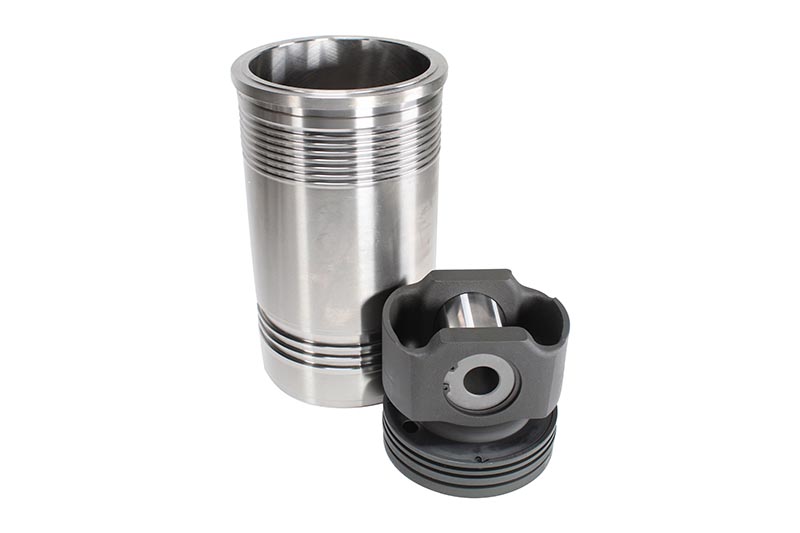

  • (1) Liner Kit
  • (1) Cylinder Liner, 1979322
  • (1) Liner O-Ring Kit
  • (1) Liner Instruction Sheet
  • (1) Instruction Sheet

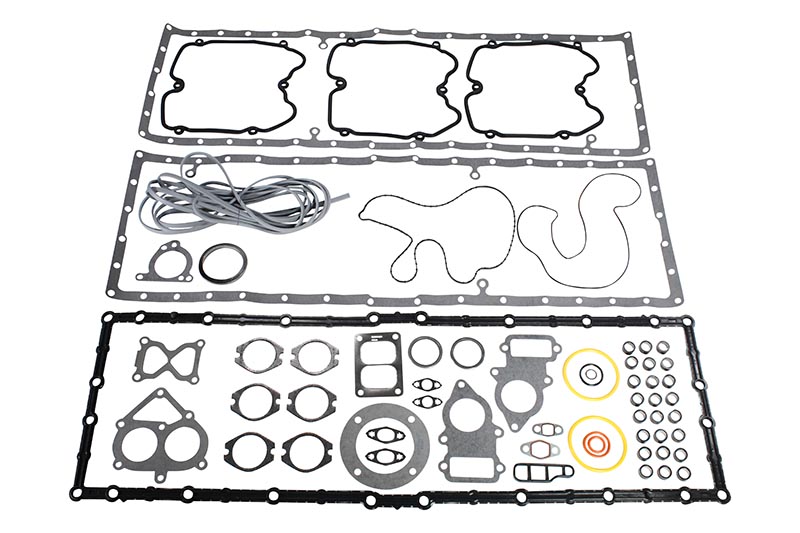

  • (1) Oil Pan Gasket Kit
  • (1) Oil Pan Gasket, 1685248
  • (1) O-Ring, 1090078
  • (1) O-Ring, 1090072
  • (1) Upper Gasket Kit, 2486740
  • (1) Camshaft Standard O-Ring Kit
  • (1) O-Ring, 5E8771
  • (1) O-Ring, 6V1197
  • (1) O-Ring, 1178801
  • (1) Cam Cover Gasket, 1607271
  • (1) Accessory Cover Seal, 1036045
  • (6) O-Rings, 1123102
  • (1) O-Ring, 6V6353
  • (1) Cylinder Block Plate Gasket, 2271204
  • (1) Cylinder Head Gasket, 2245122
  • (1) Valve Seal Kit
  • (24) Seals, 1632478
  • (12) O-Rings, 8L2777
  • (12) O-Rings, 618639
  • (1) Valve Cover Gasket Kit
  • (3) Valve Cover Gaskets, 2429537
  • (3) O-Rings, 23527275
  • (1) Valve Cover Gasket, 5P5678-9
  • (2) O-Rings, 56AX283
  • (1) Fuel Injection O-Ring Kit
  • (6) O-Ring Kits, 2481394
  • (1) O-Ring, 9X7317
  • (1) O-Ring, 2303728
  • (1) O-Ring, 2303775
  • (2) O-Rings, 0336042
  • (4) O-Rings, 1H1023
  • (1) O-Ring
  • (10) O-Rings, 6V5050
  • (12) O-Rings, 1093204
  • (5) O-Rings, 6V8397
  • (12) O-Rings, 1662904
  • (6) O-Rings, 9X7430
  • (1) O-Ring Kit
  • (1) Air Inlet Gasket, 1013125
  • (3) O-Rings, 2385080
  • (8) O-Rings, 2147568
  • (1) O-Ring, 2M9780
  • (1) O-Ring, 3D2824
  • (24) Head Gasket Seals, 3E6772
  • (2) O-Rings, 5P0840
  • (1) O-Ring, 6V5048
  • (1) O-Ring, 6V5100
  • (2) Electrical Connector Gaskets, 6V0128
  • (6) O-Rings, 3010937
  • (1) Regulator Gasket Kit
  • (1) Regulator Housing Gasket, 1048585
  • (1) Regulator Housing Gasket, 1393550
  • (1) Regulator Cover Gasket, 4N1156
  • (1) Regulator Housing Gasket, 9Y2588
  • (1) O-Ring, 4J7533
  • (2) Seals, 447GC216A
  • (1) Turbocharger Gasket Kit
  • (1) Turbo mounting Gasket Kit, 2746851
  • (2) Turbocharger Oil Drain Gaskets, 1978419
  • (2) Oil Feed Gaskets, 1978418
  • (1) Exhaust Gasket, 2338014
  • (1) Mounting Gasket Kit
  • (1) O-Ring, 1142687
  • (1) Turbocharger Oil Drain Gasket, 1262702
  • (6) Exhaust Gaskets, 1384611
  • (1) Oil Return Seal, 1422329
  • (1) Turbocharger Oil Pressure Gasket, 1986068
  • (1) Turbocharge Gasket, 1S4295
  • (2) O-Rings, 5H7704
  • (1) O-Ring, 6J2245
  • (6) Exhaust Manifold Assembly Gasket, 2818261
  • (6) Connecting Rod Bearings, 9Y7735
  • (1) Main Bearing Set
  • (7) Main Bearings, 2110592
  • (2) Thrust Bearings, 7E9262
  • (1) Engine Kit IIF Set
  • (1) Component Instruction Sheet
  • (1) Break-in sheet
  • (1) Engine Hang Tags
  • (1) Engine Break-in
  • (2) Oil Pan Gaskets

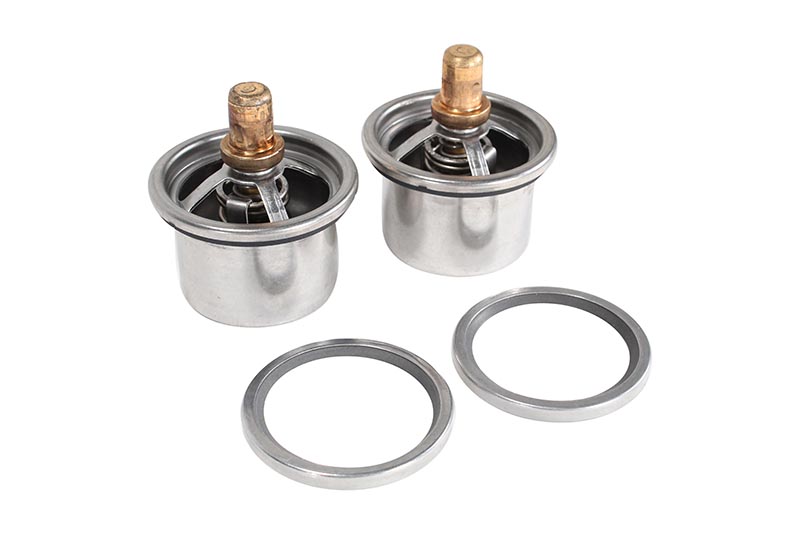

  • (1) Thermostat Kit
  • (2) Thermostats, 7C3095
  • (1) Regulator Housing Gasket, 1393550
  • (1) Regulator Cover Gasket, 4N1156
  • (2) Seals, 447GC216A





Caterpillar>3406E, Caterpillar>C15
