— Drop in your engine number and we’ll double-check it’s the perfect fit before we ship, no guesswork needed.

CPL/ESN Prefix: 1MM

Condition: New


Fast Shipping


Easy Returns


Expert Support

HHP#: P203584
Category:

Description

In Frame Kit for Caterpillar 3406E, C16 – Part Number C16101010

Why Choose Our New In Frame Kit for the ISX Single Cam?

  • 2-Year Parts and Labor Warranty
  • Built to OEM Specifications
  • All Brand-New Parts

IMPROVE PERFORMANCE AND EXTEND THE LIFE OF YOUR DIESEL ENGINE

HHP’s In Frame Kit for Caterpillar 3406E, C16 produces a higher level of performance than OE parts and increases the life of your 3406E, C16 diesel engine. Our in frame kit is engineered as an upgraded replacement to the OEM part with a perfect fit for easy installation. It’s built to OEM specifications with a 2-year parts and labor warranty.

Having problems with your Caterpillar 3406E, C16? A new rebuild kit from HHP may be just what you need!

Extend the life expectancy of your 3406E, C16 with a quality C16101010 Rebuild Kit from the certified diesel experts. All engines hit this point eventually; you need a rebuild kit to keep things running. So where do you go? Naturally, you try the OE rebuild kit. It’s pricey but it has everything you need, right? Believe it or not, some OE rebuild kits come with used parts. Would you do an engine overhaul with used parts? No way.

We believe in only using new, high-quality parts in our C16101010 Rebuild Kits for the 3406E, C16. Each kit follows OE specifications and tolerances, so you’re getting the best quality without breaking the bank. Our 3406E, C16 Rebuild Kits are manufactured in an ISO 9001 certified facility, and are built with hard-wearing materials for long-lasting durability.

As an added bang for your buck, each C16101010 Caterpillar 3406E, C16 Rebuild Kit comes with a zero core charge and support from our ASE-certified technicians who are available to answer any of your questions from purchase to installation. With technical knowledge, quality products, fast shipping, and unbeatable customer service, HHP is the place to be.

Details for Caterpillar C15, 3406E, Inframe Engine Rebuild Kit, New...

Weight 224 lbs
Dimensions 46 × 16 × 17 in
Vendor Warranty

2 Year Unlimited Mileage Parts Warranty

Condition

CPL/ESN Prefix

Additional Shipping & Return Information

C16101-010, C16101010

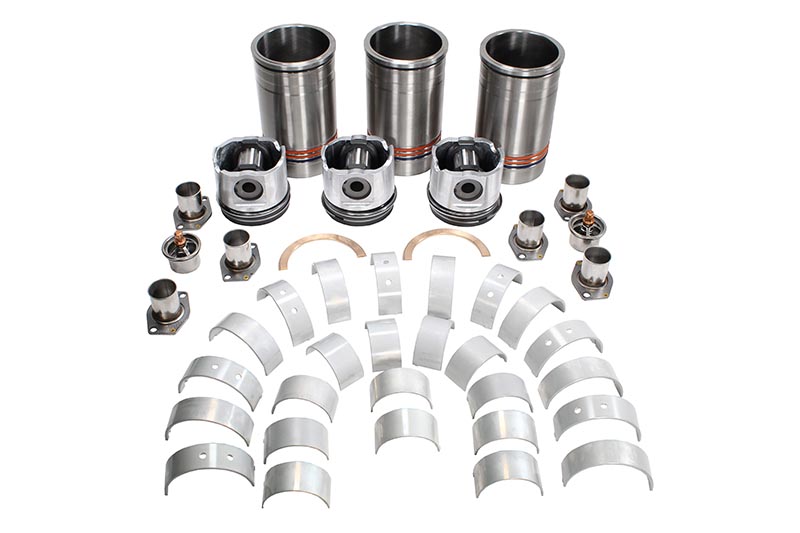

  • (6) Cylinder Kits

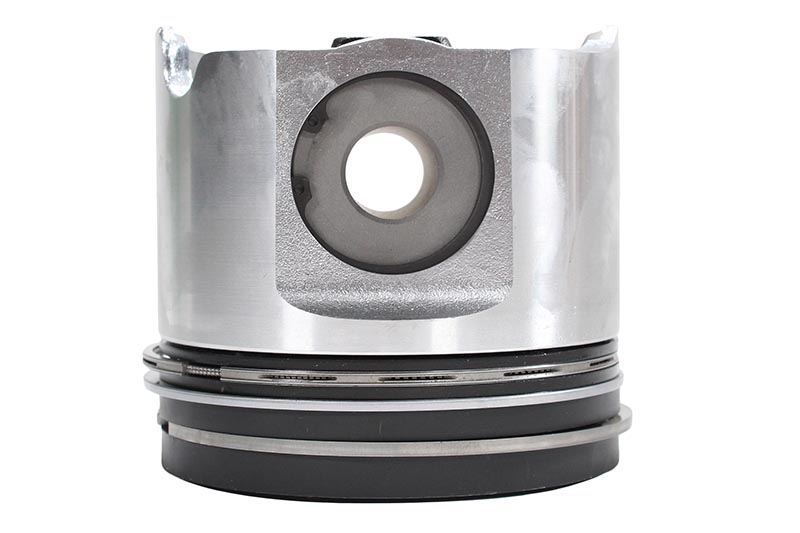

    • (1) Piston Kit
      • (1) Piston Crown, 1398500
      • (1) Piston Skirt, 2846039
      • (1) Piston Pin, 1687246
      • (2) Internal Retainer Rings, 97AX126
    • (1) Piston Ring Set
      • (1) Compression Piston Ring, 1534101
      • (1) Intermediate Piston Ring, 1398504
      • (1) Oil Control Piston Ring, 1398505
      • (1) Ring Set Blanket Statement, G

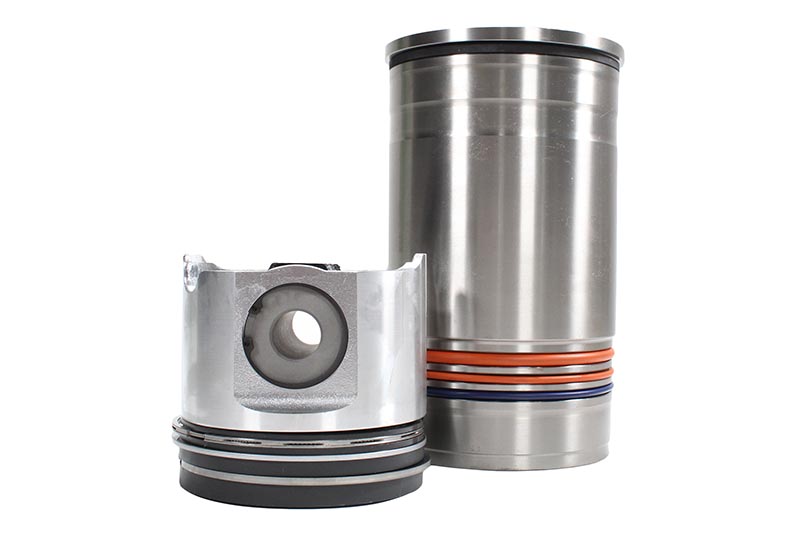

    • (1) Liner Kit
      • (1) Cylinder Liner, 1326881
      • (1) O-Ring Kit, 1541642
  • (1) Oil Pan Gasket
    • (1) Oil Pan Gasket, 1685248
    • (1) O-Ring, 1090078
    • (1) O-Ring, 1090072
  • (1) Upper Gasket Kit, 2486740
    • (1) Camshaft Standard O-Ring Kit
      • (1) O-Ring, 5E8771
      • (1) O-Ring, 6V1197
      • (1) O-Ring, 1178801
      • (1) Cam Cover Gasket, 1607271
      • (1) Accessory Cover Seal, 1036045
      • (6) O-Rings, 1123102
      • (1) O-Ring, 6V6353

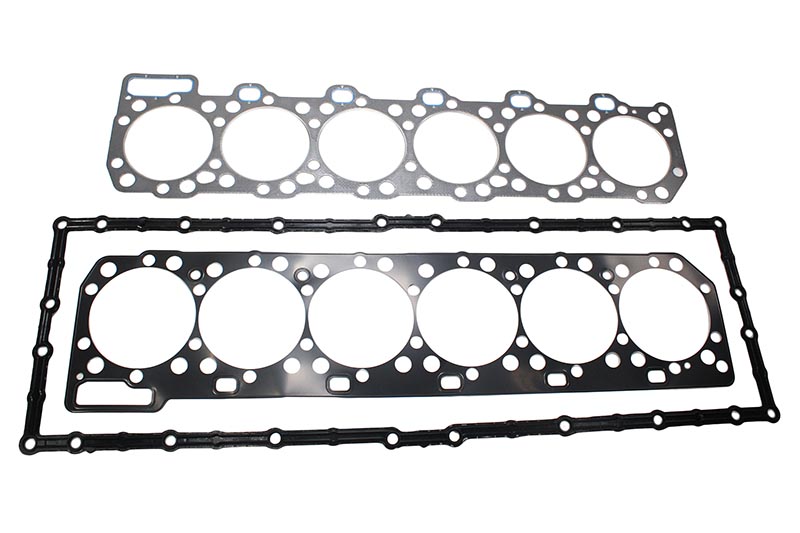

    • (1) Cylinder Block Plate Gasket, 2271204
    • (1) Cylinder Head Gasket, 2245122
    • (1) Valve Seal Kit
      • (24) Seals, 1632478
      • (12) O-Rings, 8L2777
      • (12) O-Rings, 618639
    • (1) Valve Cover Gasket Kit
      • (3) Valve Cover Gaskets, 2429537
      • (3) O-Rings, 23527275
      • (1) Valve Cover Gasket, 5P5678-9
      • (2) O-Rings, 56AX283
    • (1) Fuel Injection O-Ring Kit
      • (6) O-Ring Kits, 2481394
        • (1) O-Ring, 9X7317
        • (1) O-Ring, 2303728
        • (1) O-Ring, 2303775
      • (2) O-Rings, 0336042
      • (4) O-Rings, 1H1023
      • (1) O-Ring
      • (10) O-Rings, 6V5050
      • (12) O-Rings, 1093204
      • (5) O-Rings, 6V8397
      • (12) O-Rings, 1662904
      • (6) O-Rings, 9X7430
    • (1) O-Ring Kit
      • (1) Air Inlet Gasket, 1013125
      • (3) O-Rings, 2385080
      • (8) O-Rings, 2147568
      • (1) O-Ring, 2M9780
      • (1) O-Ring, 3D2824
      • (24) Head Gasket Seals, 3E6772
      • (2) O-Rings, 5P0840
      • (1) O-Ring, 6V5048
      • (1) O-Ring, 6V5100
      • (2) Electrical Connector Gaskets, 6V0128
      • (6) O-Rings, 3010937
    • (1) Regulator Gasket Kit
      • (1) Regulator Housing Gasket, 1048585
      • (1) Regulator Housing Gasket, 1393550
      • (1) Regulator Cover Gasket, 4N1156
      • (1) Regulator Housing Gasket, 9Y2588
      • (1) O-Ring, 4J7533
      • (2) Seals, 447GC216A
    • (1) Turbocharger Gasket Kit
      • (1) Turbo Mounting Gasket Kit, 2746851
      • (2) Turbocharger Oil Drain Gaskets, 1978419
      • (2) Oil Feed Gaskets, 1978418
      • (1) Exhaust Gasket, 2338014
    • (1) Mounting Gasket Kit
      • (1) O-Ring, 1142687
      • (1) Turbocharger Oil Drain Gasket, 1262702
      • (6) Exhaust Gaskets, 1384611
      • (1) Oil Return Seal, 1422329
      • (1) Turbocharger Oil Pressure Gasket, 1986068
      • (1) Turbocharger Gasket, 1S4295
      • (2) O-Rings, 5H7704
      • (1) O-Ring, 6J2245

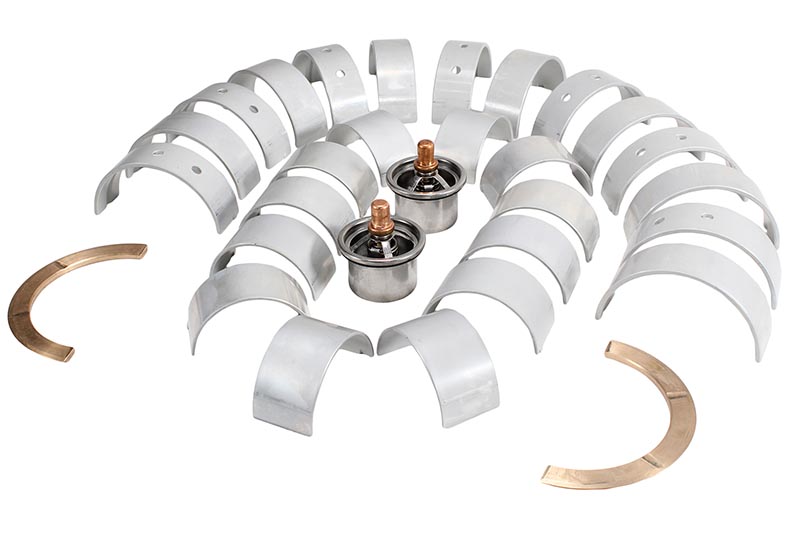

  • (6) Connecting Rod Bearings, 9Y7735
  • (1) Main Bearing  Set, 2436718
    • (7) Main Bearings, 2110592
    • (2) Thrust Bearings, 7E9262
  • (1) Engine Kit IIF Set
    • (1) Break -In Instruction Sheet
    • (1) Engine Hang Tag
    • (1) Engine Break-In Procedure Sheet
    • (1) Liner Instruction Sheet
  • (6) Exhaust Manifold Assembly Gaskets, 2818261
  • (2) Thermostats, 7C3095

Caterpillar>3406E, Caterpillar>C16
