Description
Get back on the road with quality replacement parts from HHP!

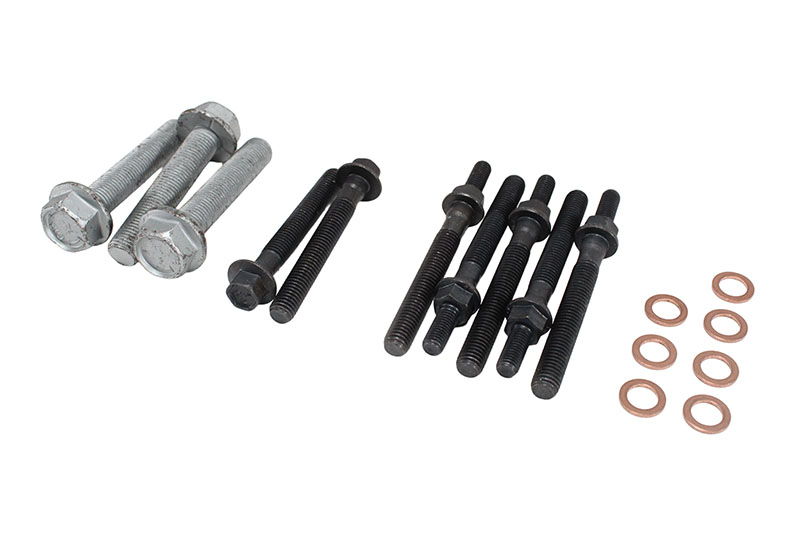

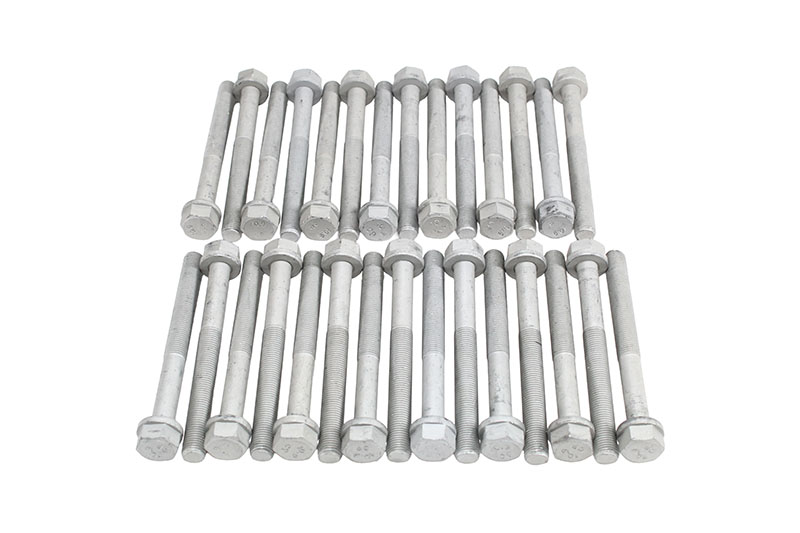

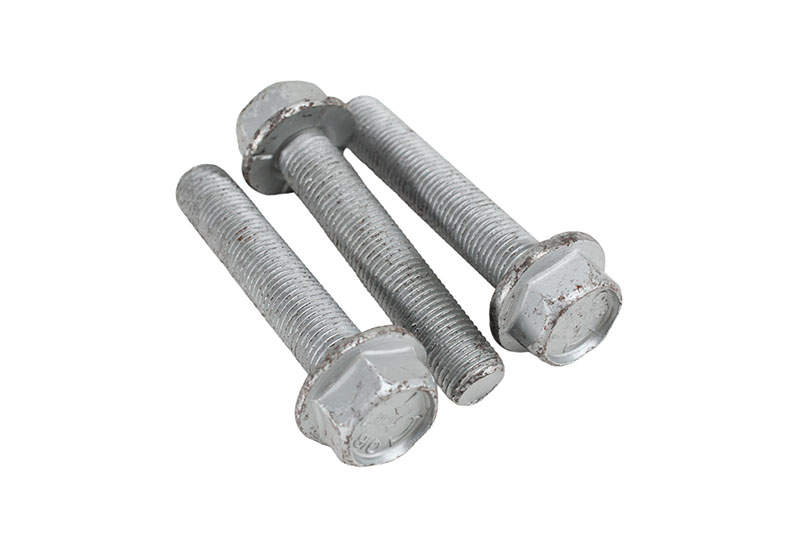

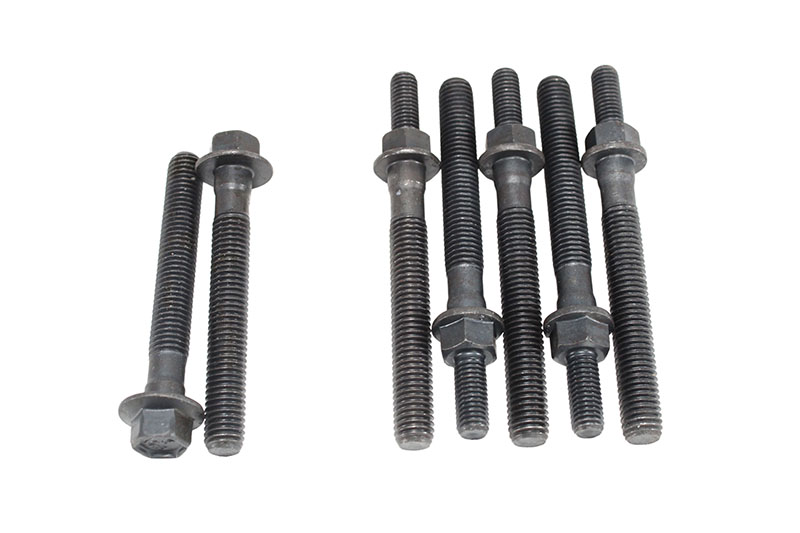

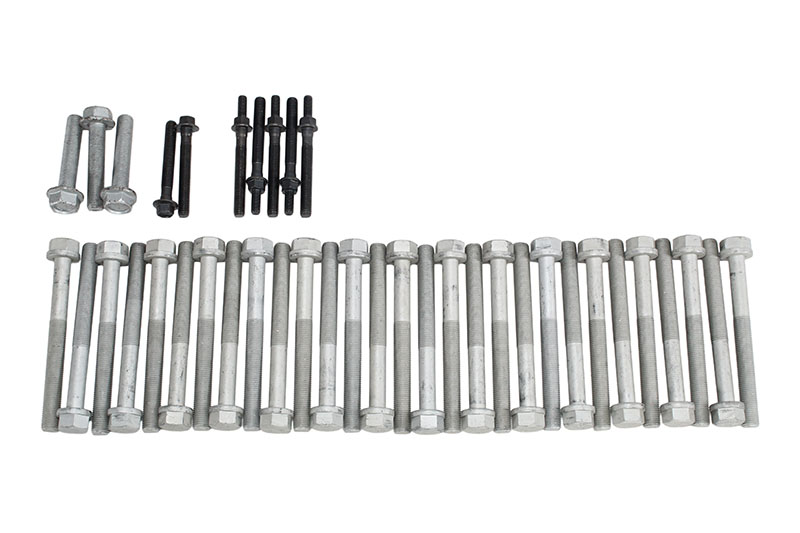

We wouldn’t put sub-par parts in our Cummins ISM, M11 Cylinder Head Bolt Kit, so why should you? Don’t let a small part turn into a major repair.
At Highway and Heavy Parts, you’ll get a Cylinder Head Bolt Kit that has been manufactured in an ISO 9001:2015 certified facility, ensuring quality and consistency for your Cummins ISM, M11.
Each part is crafted with hard-wearing strength and durability to ensure your Cummins ISM, M11 can withstand the rigors you put it through. It is also built to strict specifications for proper fitment and functionality in your Cummins ISM, M11.
Plus, you’ll get it at equal or better quality compared to the OE at a much lower price, putting money back in your pocket. As an added benefit, it’s backed by our ASE-certified technicians on staff who can answer any technical question you have about your Cummins ISM, M11.
With technical knowledge, quality products, fast shipping, and unbeatable customer service, HHP is the place to be!
Frequently Asked Questions
What is the function of the 040184 cylinder head bolt kit in Cummins ISM and M11 engines?
The 040184 cylinder head bolt kit serves as the critical fastening system that secures the cylinder head to the engine block in Cummins ISM and M11 diesel engines, maintaining proper sealing and structural integrity essential for reliable engine operation under extreme conditions. These high-strength bolts create the clamping force necessary to compress the head gasket between the cylinder head and engine block, ensuring leak-proof sealing of combustion chambers, cooling passages, and oil galleries throughout all operating conditions. The cylinder head bolts must withstand tremendous forces including combustion pressures exceeding 2,000 PSI, thermal cycling from ambient temperatures to over 200°F, and mechanical stresses from engine vibration and torque variations during operation. Proper head bolt clamping force is absolutely critical for maintaining head gasket integrity, preventing coolant leakage, avoiding oil contamination, and ensuring optimal compression ratios that directly affect engine performance, fuel efficiency, and emissions production. The bolt kit includes all necessary fasteners engineered to precise specifications that distribute clamping loads evenly across the head gasket surface, preventing distortion or uneven sealing that could lead to gasket failure or engine damage. During engine operation, cylinder head bolts experience complex loading patterns including tension forces from combustion pressure, thermal expansion and contraction cycles, and dynamic loads from engine vibration that require premium materials and precise manufacturing to ensure long-term reliability. The specialized bolt design incorporates controlled stretch characteristics that maintain proper clamping force throughout thermal cycling while accommodating the differential expansion rates between aluminum cylinder heads and cast iron engine blocks common in ISM and M11 applications. Failure of cylinder head bolts can result in catastrophic consequences including head gasket blowout, coolant system contamination, overheating conditions, or complete loss of compression requiring major engine repairs and significant operational downtime. The quality and precision of cylinder head bolts directly impact engine reliability and service life, making proper specification bolts essential for maintaining the performance standards and durability expectations of Cummins ISM and M11 engines in demanding commercial applications.
Which Cummins engines require the 040184 cylinder head bolt kit?
The 040184 cylinder head bolt kit is specifically engineered for Cummins ISM and M11 diesel engines, two closely related engine families that represent some of the most reliable and widely used heavy-duty engines in commercial trucking, construction equipment, and industrial applications throughout the 1990s and 2000s. The M11 engine served as the foundation for the ISM platform, sharing fundamental architecture including cylinder head mounting patterns, bolt hole locations, and fastener specifications that ensure perfect compatibility with this bolt kit across both engine families. ISM engines represent the evolution of the M11 platform with enhanced electronic controls, improved fuel systems, and advanced emissions compliance capabilities while maintaining identical cylinder head bolt requirements and specifications for parts standardization and service simplicity. Both engines utilize the same 10.8-liter displacement and inline six-cylinder configuration with identical head bolt patterns, thread specifications, and torque requirements that allow this single bolt kit to provide optimal performance across all variants and horsepower ratings. These engines are available in multiple power configurations ranging from 280 to over 400 horsepower, all sharing the same fundamental head bolt specifications despite variations in fuel systems, turbocharging arrangements, and emissions control equipment. Fleet operators managing Cummins-powered vehicles benefit from this standardized compatibility that simplifies inventory management, reduces parts complexity, and streamlines major engine maintenance procedures across different engine models and production years. The engines are commonly found in medium and heavy-duty trucks, motorhomes, buses, construction equipment, marine applications, and stationary power generation systems where reliable head gasket sealing is critical for sustained operation under demanding conditions. ISM engines continued production longer than M11 variants and incorporated more advanced electronic systems, but maintained complete compatibility with the same head bolt specifications for service continuity and parts availability. When performing cylinder head service or major engine overhauls, verification of specific engine model and serial number ensures proper fitment while maintaining original equipment specifications and reliability standards. Professional mechanics and fleet maintenance operations rely on this cross-compatibility to maintain diverse Cummins fleets efficiently while ensuring optimal engine performance and reliability throughout extended service intervals typical of commercial vehicle applications.
What are the symptoms that indicate cylinder head bolt problems in ISM and M11 engines?
Cylinder head bolt problems in Cummins ISM and M11 engines present through distinctive symptoms that indicate loss of proper clamping force or bolt failure requiring immediate attention to prevent catastrophic engine damage and expensive repairs. Head gasket leakage represents the most common and serious symptom of inadequate head bolt clamping force, manifesting as coolant loss, white exhaust smoke, coolant contamination in engine oil, or engine overheating conditions that result from compromised sealing between cylinder head and engine block surfaces. External coolant leakage around the cylinder head perimeter indicates head gasket failure from insufficient bolt torque or stretched bolts that no longer maintain proper sealing force under operating pressures and thermal cycling conditions. Oil and coolant mixing creates a milky appearance in engine oil or oil contamination in the cooling system, indicating internal head gasket failure that allows these fluids to cross-contaminate and potentially cause catastrophic engine damage if not addressed immediately. Unusual combustion noise or engine knock may indicate combustion gases escaping through compromised head gasket sealing, creating irregular pressure conditions that affect engine performance and can lead to additional component damage throughout the engine. Loss of compression in one or more cylinders becomes apparent through reduced power output, poor fuel economy, hard starting conditions, and rough idle characteristics that suggest compromised cylinder sealing from inadequate head bolt clamping force. Excessive pressure in the cooling system, evidenced by coolant system bubbling or pressurization when the engine is running, indicates combustion gases entering the cooling system through failed head gasket sealing caused by insufficient bolt torque or bolt failure. Visible bolt elongation, thread damage, or obvious bolt failure during routine maintenance inspections requires immediate replacement to prevent complete head gasket failure and potential engine destruction. Engine overheating without obvious cause may indicate reduced cooling system efficiency from head gasket sealing problems that restrict coolant flow or allow combustion gases to interfere with cooling system operation. Complete head bolt failure can result in catastrophic consequences including sudden loss of head gasket sealing, massive coolant loss, severe overheating, or complete engine seizure that requires major repair or replacement at significant cost. Early detection of head bolt problems through regular maintenance inspections and prompt attention to symptoms prevents extensive collateral damage and reduces repair costs in critical commercial applications where engine reliability directly impacts operational success.
How are 040184 cylinder head bolts properly installed in Cummins engines?
Installing the 040184 Cummins ISM/M11 cylinder head bolt kit requires precise procedures, specialized tools, and meticulous attention to torque specifications and sequence to ensure optimal head gasket sealing and long-term engine reliability. The installation process typically requires 6-10 hours of skilled labor depending on engine accessibility, mechanic experience with Cummins engines, and whether additional cylinder head work is performed simultaneously during the major service procedure. Essential tools include precision torque wrenches capable of accurate low and high torque measurements, angle measurement tools for torque-plus-angle procedures, thread cleaning equipment, proper sealers and lubricants specified by Cummins, and clean assembly areas to prevent contamination during critical fastener installation. The procedure begins with thorough preparation of both cylinder head and engine block mating surfaces, including complete cleaning of old gasket material, inspection for surface damage or warpage, and verification of proper surface finish and flatness within Cummins specifications. Thread preparation involves careful cleaning of all bolt holes in the engine block using appropriate tap and cleaning methods, removal of any debris or old thread sealant, and verification of thread condition and depth to ensure proper bolt engagement and torque retention. New head gasket installation requires precise positioning according to Cummins specifications, proper orientation of all sealing surfaces, and verification that all bolt holes align correctly with no interference or binding during bolt installation procedures. Cylinder head bolt installation follows specific sequences established by Cummins engineering to ensure even clamping force distribution and prevent head distortion, typically starting with center bolts and working outward in prescribed patterns that maintain balanced loading throughout the installation process. Initial torque procedures involve multiple stages with specific torque values and sequences, often beginning with finger-tight installation, followed by initial torque specifications around 65 ft-lbs, and final torque values typically ranging from 90-110 ft-lbs depending on specific engine requirements. Final tightening procedures may include torque-plus-angle specifications where bolts receive additional rotation beyond final torque to achieve proper clamping force and accommodate bolt stretch characteristics essential for reliable sealing under operating conditions. Post-installation verification includes comprehensive inspection of bolt torque retention, visual examination of head gasket sealing surfaces, and systematic checking for any signs of uneven clamping or installation irregularities before engine startup and break-in procedures.
What quality standards and warranty support does HHP provide for cylinder head bolt kits?
HHP’s 040184 Cummins ISM/M11 cylinder head bolt kit undergoes rigorous manufacturing and quality control processes in ISO 9001:2015 certified facilities that ensure exceptional performance and reliability through comprehensive quality management systems specifically designed for critical engine fastener applications. The ISO certification mandates stringent quality control protocols including detailed incoming material inspection of premium steel alloys, precision manufacturing verification using advanced measuring equipment, and extensive final product testing that guarantees consistent dimensional accuracy and structural integrity across all production batches intended for demanding commercial service. Each cylinder head bolt receives meticulous inspection of critical specifications including thread dimensions, head configuration, length tolerances, and surface finish requirements using precision measuring equipment to ensure optimal fit and performance in ISM and M11 engine applications operating under extreme conditions. Advanced quality control procedures include comprehensive material testing to verify proper steel alloy composition and strength characteristics that meet or exceed Cummins specifications, dimensional analysis using statistical process control methods, thread quality verification using specialized gauges, and tensile strength testing to confirm proper bolt performance under specified loading conditions. The manufacturing process utilizes premium steel alloys specifically selected for cylinder head bolt applications, featuring optimal strength-to-weight ratios and fatigue resistance characteristics that provide superior durability under the extreme loading conditions typical of heavy-duty diesel engines in commercial applications. Specialized manufacturing processes include precision thread rolling operations that enhance thread strength and surface finish, controlled heat treatment procedures that optimize material properties, and advanced surface treatments that improve corrosion resistance and thread retention characteristics essential for reliable long-term performance. HHP provides comprehensive warranty coverage that protects against manufacturing defects, material failures, and dimensional inaccuracy under normal ISM and M11 operating conditions, demonstrating confidence in manufacturing quality while providing financial protection for customers’ investment in critical engine components. Technical support services include direct access to ASE-certified diesel technicians with specialized expertise in Cummins engine assembly procedures who provide detailed installation guidance, precise torque specifications, troubleshooting assistance, and compatibility verification for specific engine applications and service scenarios. The extensive support infrastructure includes comprehensive technical documentation with detailed installation procedures, torque specification charts with sequence diagrams, thread preparation guidelines, and ongoing diagnostic assistance that ensures successful installation and optimal cylinder head bolt performance throughout the service life. This combination of rigorous manufacturing standards, comprehensive quality control procedures, and extensive technical support makes HHP’s cylinder head bolt kits the preferred choice for professional mechanics, fleet maintenance operations, and equipment owners requiring reliable fastener components for their valuable ISM and M11 engines operating in demanding commercial applications where fastener reliability directly impacts engine performance, service life, and operational success.
