Having problems with your Detroit Diesel DD15? A new rebuild kit from HHP may be just what you need!
Extend the life expectancy of your DD15 with a quality DD1501001 rebuild kit from the certified diesel experts. All engines hit this point eventually – you need a rebuild kit to keep things running. So where do you go? Naturally, you try the OE rebuild kit. It’s pricey, but it has everything you need, right? Believe it or not, some OE rebuild kits come with used parts. Would you do an engine overhaul with used parts? No way.
We believe in only using new, high quality parts in our DD1501001 DD15 Rebuild Kits. Each part follows OE specifications and tolerances, so you’re getting the best quality without breaking the bank. Our DD15 Rebuild Kits are manufactured in an ISO 9001 certified facility, and are built with hard-wearing materials for long-lasting durability.
As an added bang for your buck, each DD1501001 Detroit Diesel DD15 Rebuild Kit comes with zero core charge and support from our ASE-certified technicians who are available to answer any of your questions from purchase to installation. With technical knowledge, quality products, fast shipping, and unbeatable customer service, HHP is the place to be.

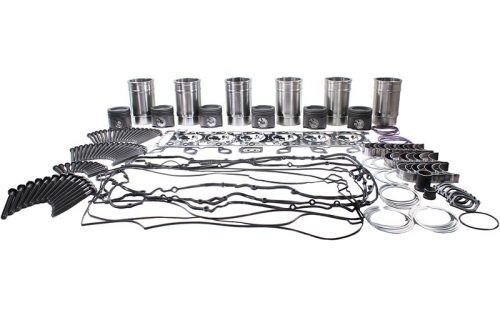

(1) Inframe Engine Rebuild Kit for Detroit Diesel - DD1501-001

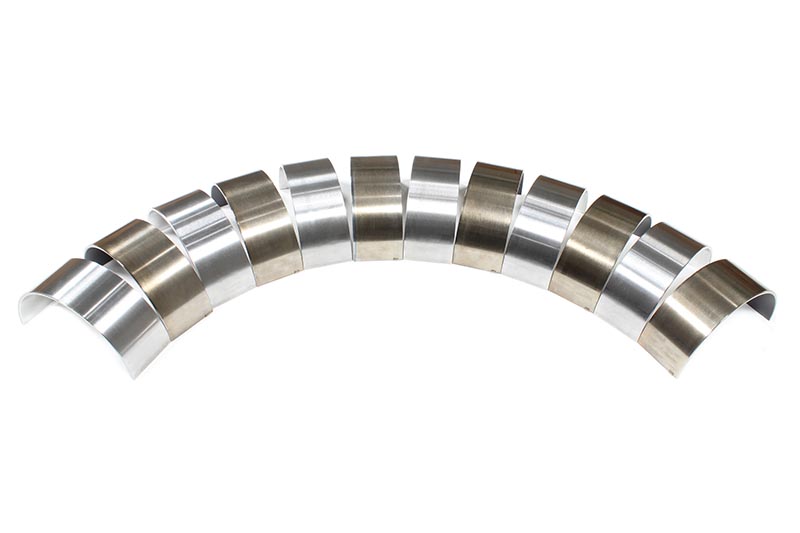

(1) Connecting Rod Bearing Kit - 671575A
(6) Standard Rod Bearing - A4720300960
(1) Upper Half Rod Bearing (Standard) - 4721010
(1) Lower Half Rod Bearing (Standard) - 4721111

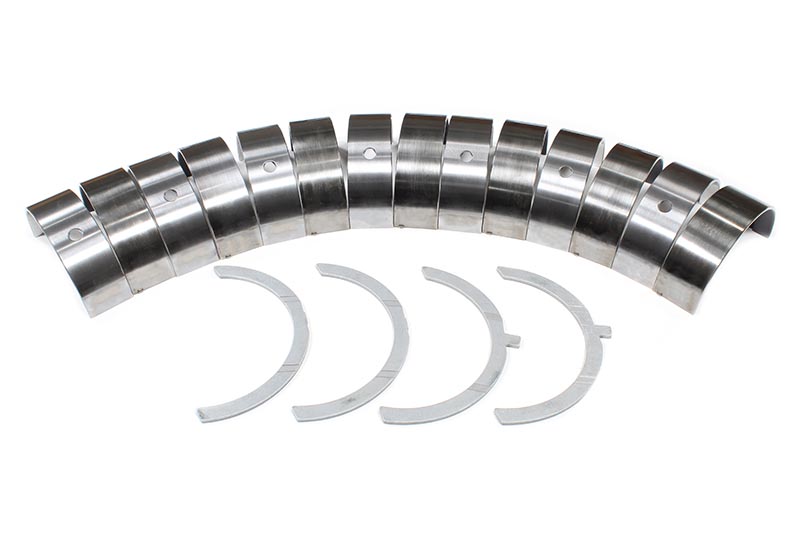

(1) Main Bearing Kit - 671585A
(7) Standard Main Bearing - A4720300240
(1) Upper Half Main Bearing (Standard) - 4720101
(1) Lower Half Main Bearing (Standard) - 4720202
(1) Kit Thrust Bearing - A4720300445
(2) Thrust Bearing - 4720108
(2) Thrust Bearing - 4720107
(1) Engine Kit IIF Set
(1) Pan Gasket - A4720140322
(2) Screw - A4720160169
(19) Cylinder Head Screw - A4720160169
(1) Head Gasket Kit - 631401
(1) Head Gasket Set - A4710161520

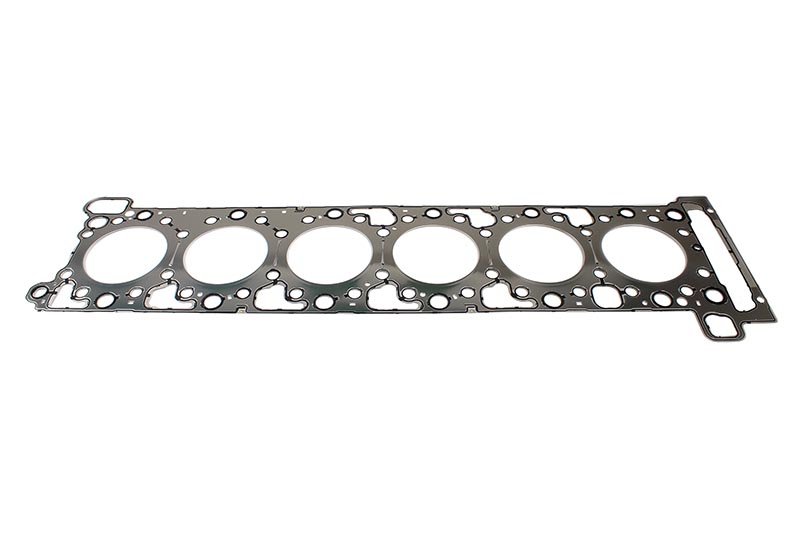

(1) Head Gasket - A4720161320
(1) Gasket Kit - OSK01516

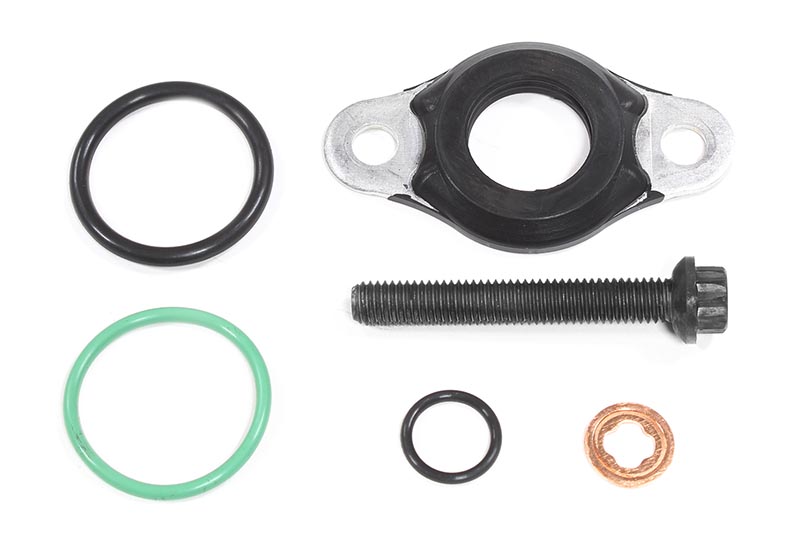

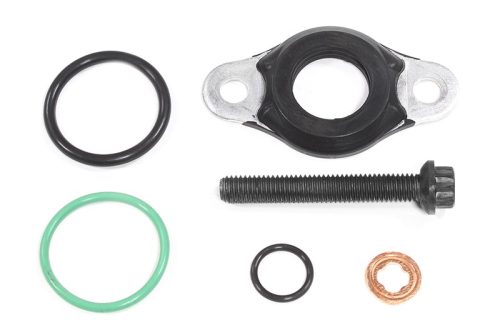

(6) Injector Kit - A4600700887
(1) Coolant Tube - A4722000154
(1) Coolant Tube - A4721400648
(1) Camshaft Housing Gasket - A4720160680
(1) Intake Gasket Kit - 631400-151

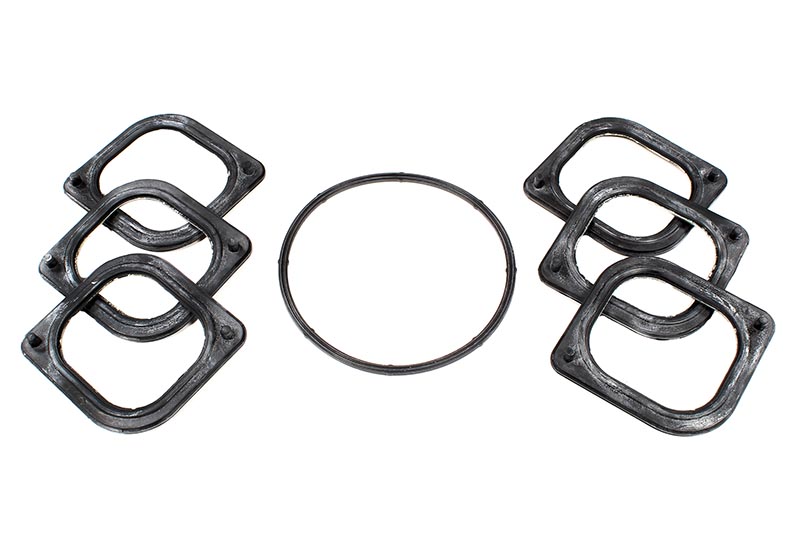

(6) Intake Manifold Gasket - A4720980080
(1) Charge Air Cooler Gasket - A4720980180

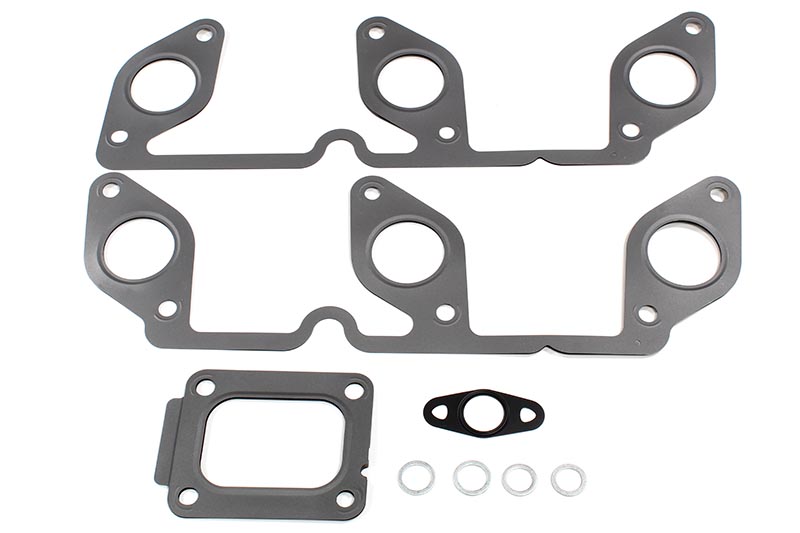

(1) Exhaust Turbocharger Gasket Kit - 631400-152
(1) Turbo Mounting Gasket - A4730960280
(1) Drain Gasket - A5411870080
(2) Washer - N000000001069
(2) Washer
(1) Exhaust Manifold Gasket - A4721421880
(1) Exhaust Manifold Gasket - A4721421980
(1) Turbocharger Gasket - A4710960380
(1) Valve Cover Kit - 631399

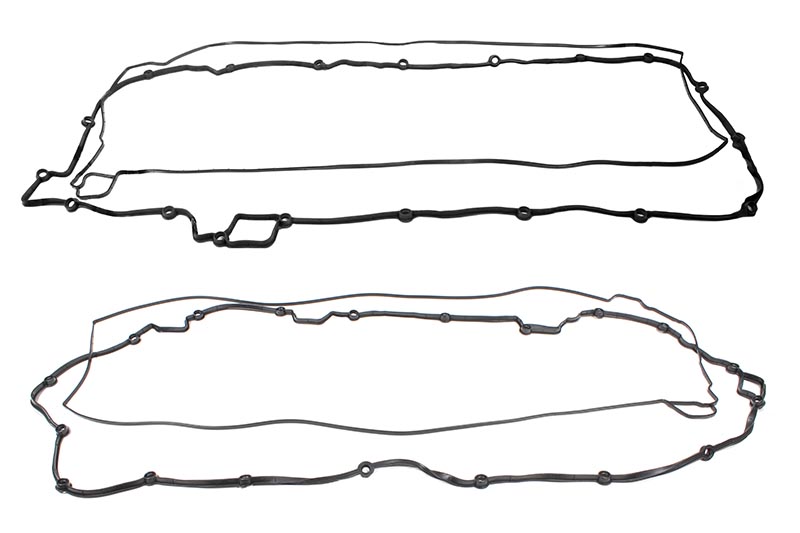

(1) Valve Cover Gasket - A4720160180
(1) Camshaft Housing Gasket - A4720160680
(12) Connecting Rod Bolt - A4720380071
(14) Main Bolt - A0000111071
(1) O-Ring Kit - 621236
(2) Rectangular Sealing Ring - A4721870980
(2) Rectangular Sealing Ring - A4721870880
(2) Pickup Seal - A4721880180
(1) Gasket - A4721881480
(6) Cylinder Kit - 600959
(1) Liner Kits - A4720111810
(1) Cylinder Liner - A4720110810
(1) Liner Seal - A0229975245
(1) Liner Seal - A0239975345
(1) Monotherm Piston Kit - A4720302317

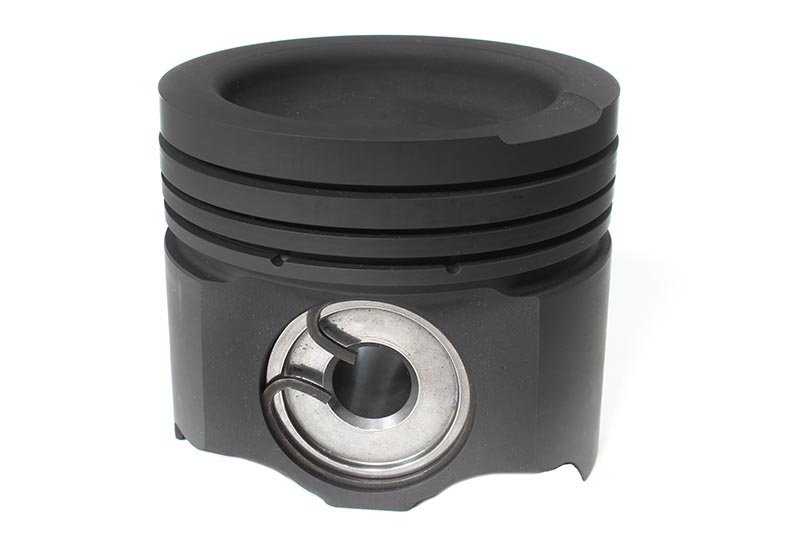

(1) Monotherm Piston - A4720371401
(1) High Performance Piston Pin - A4720370320
(2) Retaining Ring - A4729940341
(1) Piston Ring Set - A4720300624

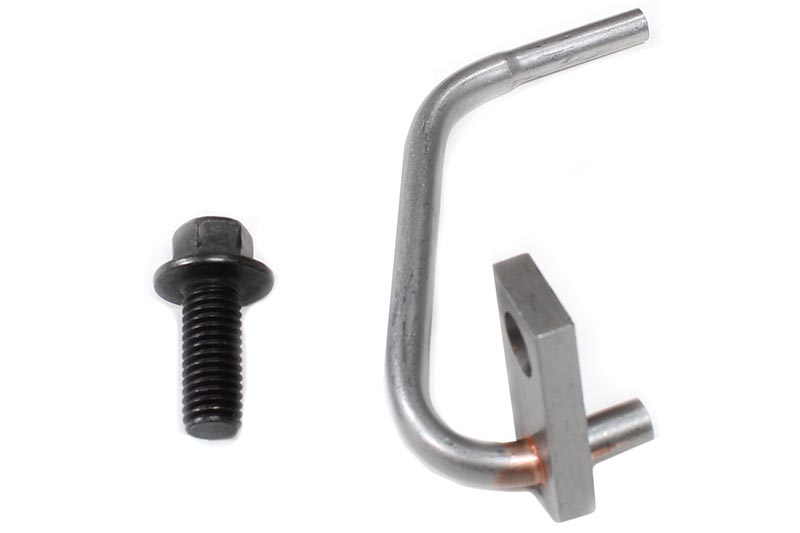

(1) Piston Cooling Nozzle - A4721800043
(1) Flanged Hex Head Capscrew - 11509511
