Caterpillar C12 In Chassis Gasket Set, New (MCBC10022)

Order by 2PM EST and in stock items will ship same day (M–F)

$631.14

We Will Finance Your Repair.

Just select Paypal - Pay Later or Sezzle at checkout.

• PayPal - Pay Later


Pay in 4

Split your purchase into 4 interest-free, bi-weekly payments.

APR: 0%
4 interest free payments
No sign-up or late fees
Purchase protection included
Autopay available

• min cart total $30
• max cart total $1,500

Pay Monthly

Enjoy the flexibility of 3, 6, 12, or 24 month payment plans with $0 down.

APR: 9.99 to 35.99%
Monthly installments
No sign-up or late fees
Purchase protection included
Autopay available

• min cart total $49
• max cart total $10,000

Pay Monthly is subject to consumer credit approval and eligibility. Pay in 4 is available to consumers upon approval for purchases of $30 to $1,500.

More details

• Sezzle


3 flexible, pay in 4, payment plans for your budget!

1

0% interest.
No credit check.
25% today, 25% every 2 weeks

• min cart total $15
• max cart total $2,500

2

0% interest.
No credit check.
50% today, 50% in 2 weeks

• min cart total $15
• max cart total $2,500

3

0% or variable APR
Soft credit check.
Dynamic installment options

• min cart total $15
• max cart total $15,000

No credit check required Instant credit decision Opt in to free credit reporting

Signing up for Sezzle will not impact your credit score. Subject to approval.

More details

— Drop in your engine number and we’ll double-check it’s the perfect fit before we ship, no guesswork needed.

Condition: New


Fast Shipping


Easy Returns


Expert Support

HHP#: P016344
Categories: , ,

Description

These aren’t your grandpa’s gaskets.

A blown gasket can be anything from a minor annoyance to leaving you stranded on the side of the road. You don’t have to put up with whatever gasket you can get your hands on; our gaskets are engineered to withstand anything you throw at it and last well into another million miles. No doubt about it, these are some of the best gaskets on the market.

It’s no secret that diesel engine parts can cost an arm and a leg. That’s where HHP steps in. We offer premium aftermarket gaskets at up to 50% off OEM prices. While most believe aftermarket retailers sell cheap gaskets with zero warranty, packed in a dusty box from who knows where, HHP is here to kick that stereotype to the curb. HHP provides gaskets fabricated for unstoppable performance and a 2-Year Parts and Labor Warranty. How’s that for an aftermarket part?

Need a little extra proof? Let’s talk shop.

  • Our proper material selection is based upon pressure, temperature variations and contact with many fluids and surfaces to suit your engine and give maximum engine performance.
  • Plus. the gaskets are composed of USA made materials that give the perfect seal, while providing excellent functionality.
  • You’ll sleep soundly knowing the sealing products are 100% Asbestos-Free. Adding onto that, fitment and functionality will be great because this gasket set is crafted to strict OE specifications.
  • We emphasize quality here at HHP. This gasket set is manufactured and assembled in an ISO 9001:2008 certified facility. This gives you top-notch quality and consistency.
  • To top it off, who doesn’t like saving money? Quality will meet or exceed the OE’s at a fraction of the cost, keeping more cash in your pocket.

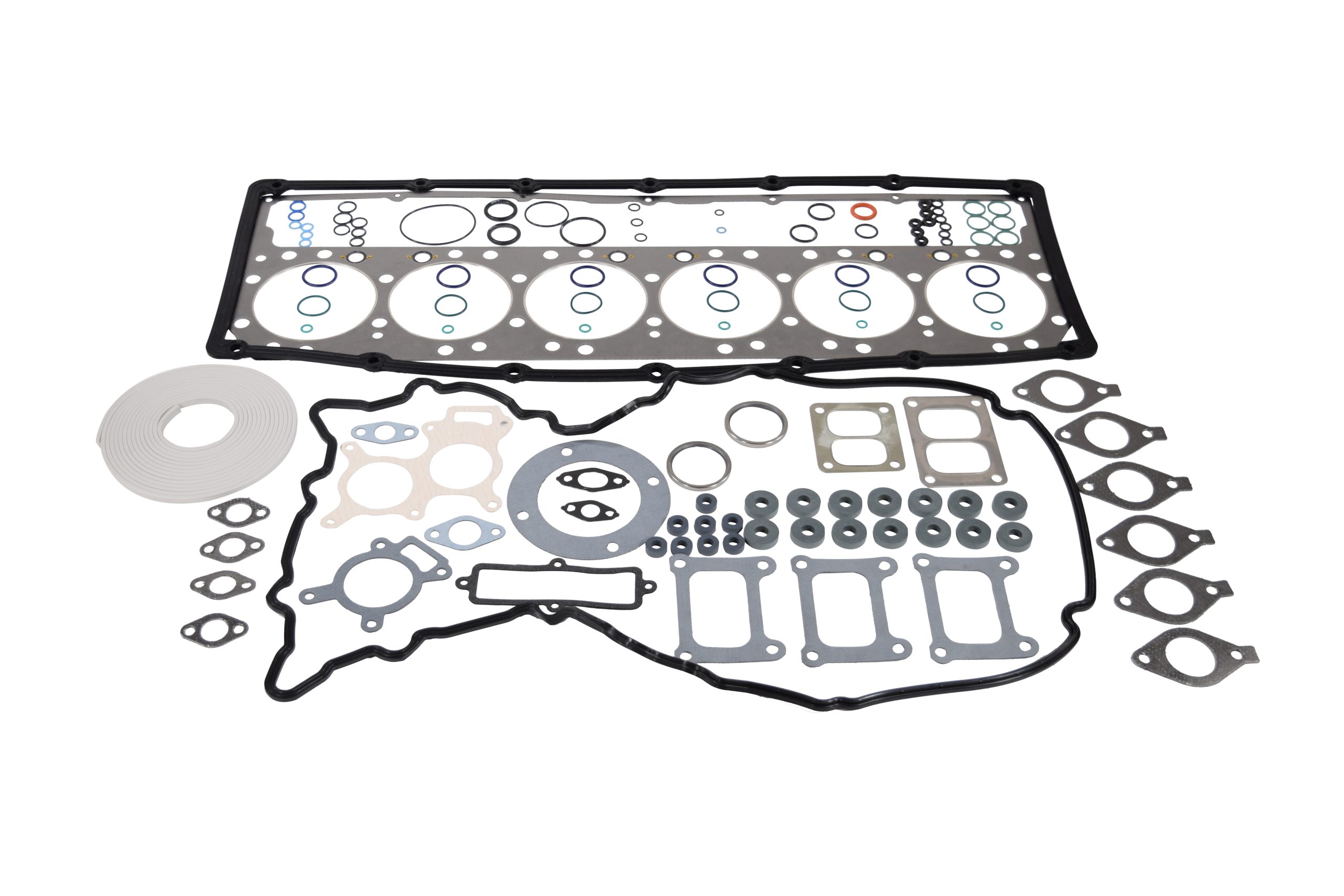

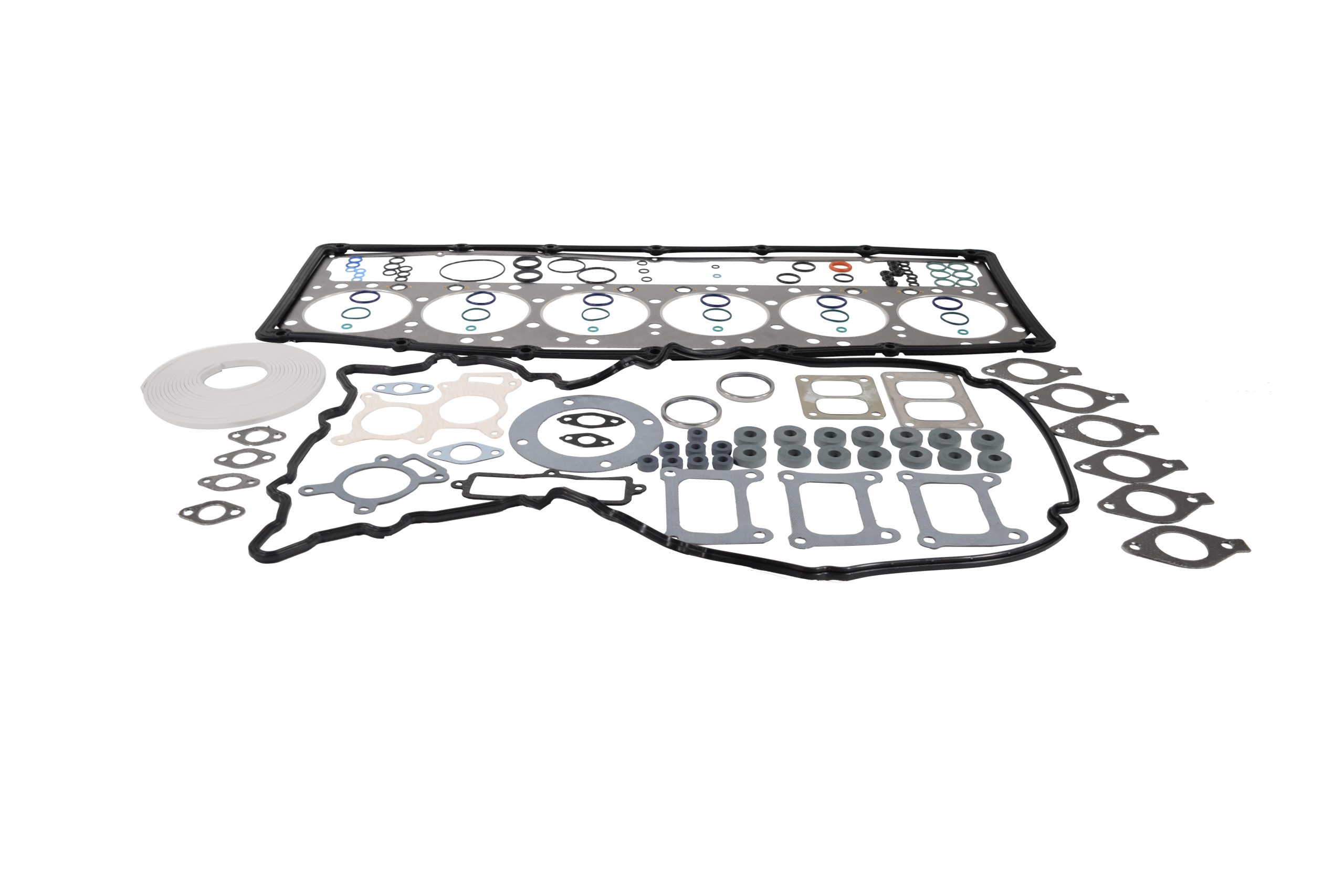

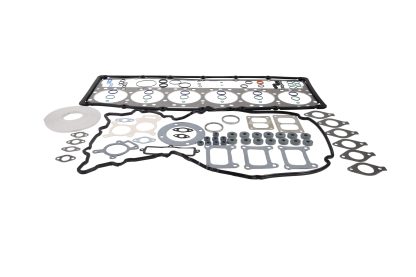

Contents

  • (1) In Chassis Gasket Set
    • (1) Air Inlet Manifold Gasket
    • (1) Oil Pan Seal
    • (1) Valve Cover Gasket
    • (6) Exhaust Manifold Gaskets
    • (1) O-Ring Seal
    • (4) Water Lines Group Gaskets
    • (1) Regulator Gasket
    • (1) Cylinder Head Gasket
    • (1) Gasket
    • (1) Turbo Lines Group Gasket
    • (1) Turbo Lines Group Gasket
    • (1) Turbocharger Gasket
    • (1) Turbocharger Gasket
    • (1) O-Ring Seal
    • (4) O-Ring Seals
    • (6) Single Fuel Injector Gasket Sets
    • (2) O-Ring Fuel Line Seals
    • (1) O-Ring Seal
    • (2) O-Ring Seals
    • (2) Thermostat Seals
    • (6) O-Ring Seals
    • (6) O-Ring Seals
    • (1) 6MT Valve Cover Seal Stock
    • (1) O-Ring Seal
    • (2) O-Ring Seals
    • (1) O-Ring Seal
    • (1) O-Ring Seal
    • (1) O-Ring Seal
    • (1) O-Ring Seal
    • (2) O-Ring Seals
    • (1) O-Ring Seal
    • (8) Isolators
    • (14) Isolators
    • (1) Gasket
    • (1) Gasket
    • (2) O-Ring Seals
    • (3) Intake Manifold Gaskets
    • (1) O-Ring Seal
    • (1) Gasket
    • (6) O-Ring Seals
    • (2) O-Ring Seals
    • (1) Gasket

Warranty

2-Year Parts and Labor Warranty

Details for Caterpillar C12 In Chassis Gasket Set, New (MCBC10022)

Weight 8 lbs
Dimensions 51 × 15 × 5 in
Vendor Warranty

2-Year Parts and Labor Warranty

Condition

Additional Shipping & Return Information

MCBC10022

  • (1) In Chassis Gasket Set
    • (1) Air Inlet Manifold Gasket, 101-3125, 1013125, 154-8587, 1548587, 9Y-6186, 9Y6186
    • (1) Oil Pan Seal, 1095308
    • (1) Valve Cover Gasket,1095309, 4P2697, 9Y4059
    • (6) Exhaust Manifold Gaskets, 1006175, 1095313, 7C0324
    • (1) O-Ring Seal, 114-2687, 1142687
    • (4) Water Lines Group Gaskets, 1182797, 4P7593, 7C2597
    • (1) Regulator Gasket, 1314164
    • (1) Cylinder Head Gasket, 1620682, 1757400, 1873307
    • (1) Gasket,1886126, 9Y3595
    • (1) Turbo Lines Group Gasket, 197-8418, 1978418
    • (1) Turbo Lines Group Gasket, 197-8419, 1978419
    • (1) Turbocharger Gasket, 1P-0451, 1P0451, 1P451
    • (1) Turbocharger Gasket, 1S-4295, 1S4295, 379-0175, 3790175, 7H-1558, 7H1558
    • (1) O-Ring Seal, 2147566, 217-7566
    • (4) O-Ring Seals, 214-7568, 2147568
    • (6) Single Fuel Injector Gasket Sets, 1933325, 2245797
    • (2) O-Ring Fuel Line Seals, 033-3743, 068-3673, 068-3673, 216-6158, 2166158, 2C-1951, 2C1951, 333743, 3D-7455, 3D7455, 3J-1907, 3J1907, 3K-7508, 3K7508, 683673, 8U-0365, 8U0365
    • (1) O-Ring Seal, 006-3710, 063710, 077-3100, 077-4866, 077-5022, 095-1759, 098-9384, 3J-7354, 3J7354, 4J-2209, 4J2209, 773100, 774866, 775022, 7E6738, 7X-5362, 7X-8720, 7X5362, 7X8720
    • (2) O-Ring Seals, 2U0722, 3P0647, 3P647
    • (2) Thermostat Seals, 3S-9643, 3S9643, 4L-8098, 4L8098
    • (6) O-Ring Seals, 4G4972
    • (6) O-Ring Seals, 5P3456
    • (1) 6MT Valve Cover Seal Stock, 5P5678-6
    • (1) O-Ring Seal, 5P8211, 6V6756, 8T8125
    • (2) O-Ring Seals, 619458, 7L2178
    • (1) O-Ring Seal, 6V-3251, 6V3251
    • (1) O-Ring Seal, 6V4589
    • (1) O-Ring Seal, 1534906, 2147568, 6V5049
    • (1) O-Ring Seal, 258-7205, 2587205, 6V-5063, 6V5063
    • (2) O-Ring Seals, 6V-6609, 6V6609
    • (1) O-Ring Seal, 6V8676, 7C5828
    • (8) Isolators, 7C8292
    • (14) Isolators, 7C8296
    • (1) Gasket, 7E5555
    • (1) Gasket, 7E7912
    • (2) O-Ring Seals, 7L-6580, 7L6580
    • (3) Intake Manifold Gaskets, 7W5164
    • (1) O-Ring Seal, 1237602, 8C3089
    • (1) Gasket, 8H9788
    • (6) O-Ring Seals, 6L-9795, 6L9795, 8L-2777, 8L2777
    • (2) O-Ring Seals, 060-7582, 060-7822, 077-5538, 607582, 627822, 6L-9776, 6L9776, 775538, 7L-6385, 7L6385, 8L-2786, 8L2786
    • (1) Gasket, 9Y-1758, 9Y1758
