Proper valve lash and injector timing are critical to keeping a diesel engine running efficiently and reliably. Over time, normal wear can cause clearances to drift out of spec, leading to poor combustion, loss of power, excessive smoke, and even internal engine damage. Performing a diesel engine valve adjustment—often referred to as an overhead set—ensures that valves and injectors are operating in perfect sync with the engine’s timing.
If you’re looking to understand how to perform diesel engine valve adjustments correctly, this guide covers the essentials, focusing on accuracy, safety, and long-term performance.

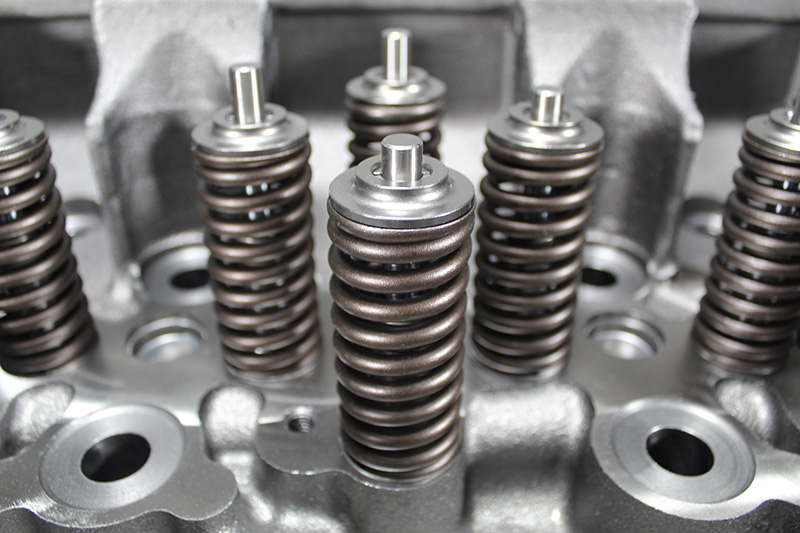

What is a Valve Adjustment?
A diesel engine valve adjustment is the process of setting the correct clearance (valve lash) between the rocker arms and the valves. This ensures that the valves open and close at the proper time during the engine cycle.
On many diesel platforms, this procedure also includes an overhead set that combines valve lash adjustment with injector adjustment. The injector portion ensures the injector is timed and actuated correctly by the camshaft via the rocker assembly.
Together, these adjustments directly affect fuel delivery, combustion efficiency, and overall engine performance.
When is a Valve Adjustment Necessary?
Valve adjustments are typically performed at manufacturer-recommended service intervals, which can vary depending on the engine make and application. However, there are also warning signs that indicate it may be time for a diesel engine valve adjustment:
- Hard starting or rough idle
- Loss of power or fuel efficiency
- Excessive engine noise (ticking or tapping)
- Increased exhaust smoke
- Poor throttle response
For many heavy-duty diesel engines, this is a routine part of diesel engine maintenance and must be done at regular intervals.
Required Tools For a Valve Adjustment
Before starting your overhead set, gather the proper tools to make things easier and set yourself up for success:
- Feeler gauge set (with precise measurements)
- Torque wrench
- Wrench and socket set
- Valve Adjustment Tool (Tappet Adjuster)
- Barring tool (to rotate the engine manually)
- Service manual or valve adjustment specifications
- Clean rags and marking tools
- Magnetic pickup tool
Having the correct specs and tools is essential. Precision matters in every step of performing diesel engine valve adjustments.
Need Help with a Diesel Engine Valve Adjustment?
Call HHP’s Diesel Engine Experts for Tips!
844.215.3406
Valve Adjustment Procedure Step-By-Step
While exact steps vary by engine model, the general process for a diesel engine valve adjustment and injector adjustment follows this sequence:
1. Prepare the Engine
Ensure the engine is off, cool, and safely secured. Remove the valve cover(s) to access the rocker arms, valves, and injectors.
2. Rotate the Engine to Top Dead Center (TDC)
Using a barring tool, rotate the engine to the correct position—typically Top Dead Center for cylinder one. This aligns components for accurate measurement and adjustment.
3. Identify the Adjustment Sequence
Follow the manufacturer’s firing order and adjustment sequence. This ensures each cylinder is adjusted at the correct point in the engine cycle.
4. Set Valve Lash
Insert the correct feeler gauge between the rocker arm and valve bridge or stem. Adjust the screw until slight resistance is felt on the gauge, then lock it down to the specified torque.
5. Perform Injector Adjustment
For engines requiring injector adjustment as part of the overhead set, adjust the injector height or plunger according to spec. This step is critical for proper fuel delivery timing.
6. Repeat for Remaining Cylinders
Rotate the engine as needed and repeat the process for each cylinder following the correct sequence.
7. Reassemble and Test
Once all adjustments are complete, reinstall the valve cover(s), start the engine, and listen for smooth, consistent operation.
Understanding the Valve Overlap Method
The valve overlap method is commonly used to determine when a cylinder is in the correct position for adjustment. When one cylinder’s valves are “rocking” (one closing while the other opens), its paired cylinder is typically at TDC and ready for adjustment. This method helps ensure precise timing without relying solely on marks.
What Feeler Gauge “Drag” Should Feel Like
When setting valve lash, the feeler gauge should have slight resistance—not loose, but not tight enough to bind. This “just right” drag is critical. Too tight can lead to valve damage, while too loose can cause noise and inefficient operation.
Always Check the Data Plate
Never assume specs. Always reference the engine’s data plate or service manual for exact valve lash and injector adjustment measurements. Even engines that look similar can have different specifications, and guessing here can lead to costly mistakes.
Finishing Up
Learning how to perform diesel engine valve adjustments correctly is one of the most important steps you can take to maintain diesel engine performance, efficiency, and longevity. Whether you’re completing a full overhead set or fine-tuning an injector adjustment, attention to detail makes all the difference.
If you need guidance, specifications, or high-quality replacement components, Highway and Heavy Parts is here to help. Our team can provide expert advice and the parts you need to keep your diesel engine running at its best—so you can get back to work with confidence.
FAQs: How to Adjust Diesel Engine Valves
What is a diesel engine valve adjustment, and why is it important?
A diesel engine valve adjustment (also called an overhead set) is the process of setting the correct clearance (valve lash) between the rocker arms and the valves. This ensures valves open and close at the precise moment in the engine cycle. It is important because even small deviations in lash can cause poor combustion, power loss, excessive exhaust smoke, hard starting, and accelerated internal wear. On many diesel platforms, the overhead set also includes an injector adjustment, which directly affects fuel delivery timing and efficiency.
How often should you perform a diesel valve adjustment?
Valve adjustment intervals vary by engine make, model, and application. Always follow the manufacturer’s recommended service schedule in your engine’s service manual. For most heavy-duty diesel engines, valve and injector adjustments are a routine maintenance item required at specific mileage or hour intervals. Outside of scheduled service, you should also inspect valve lash if you notice symptoms such as hard starting, rough idle, loss of power, excessive ticking or tapping noise, or increased exhaust smoke.
What tools do you need for a diesel valve adjustment?
To perform a diesel valve adjustment, you will need a feeler gauge set with precise measurements, a torque wrench, a standard wrench and socket set, a valve adjustment tool (tappet adjuster), a barring tool to manually rotate the engine, the manufacturer’s service manual or valve adjustment specifications, clean rags, marking tools, and a magnetic pickup tool. Having the correct specifications before you start is just as critical as having the right tools. Never attempt to set valve lash without confirmed specs for your specific engine.
What are the symptoms that indicate your diesel engine needs a valve adjustment?
Common signs that a diesel engine is due for a valve adjustment include hard starting or a rough idle, noticeable loss of power or worsening fuel efficiency, an excessive ticking or tapping noise from the valve train, increased exhaust smoke, and poor throttle response. If you are experiencing any of these symptoms, it is worth checking whether valve lash has drifted out of specification, as these issues are closely tied to improper valve and injector timing.
What is the valve overlap method, and how is it used during a valve adjustment?
The valve overlap method is a technique used to identify when a cylinder is in the correct position for adjustment without relying solely on timing marks. When one cylinder’s valves are in the rocking position (meaning one valve is just closing while the other is just opening), its paired cylinder based on the engine’s firing order is typically at Top Dead Center (TDC) and ready for adjustment. This method helps ensure accurate positioning during the overhead set process and is commonly used on heavy-duty diesel engines.
How do you know if you have the correct feeler gauge drag when setting valve lash?
When setting valve lash, the feeler gauge should have a slight, consistent resistance as you pull it through, often described as a “just right” drag. The gauge should not move freely (too loose) or bind so tightly that it requires force (too tight). Too tight a setting can cause the valve to stay slightly open, leading to heat damage and burned valves. Too loose a setting causes excessive noise and incomplete valve opening, reducing engine efficiency. When in doubt, reference your service manual’s specified clearance and use a fresh, calibrated gauge set.
What is an injector adjustment, and is it part of the diesel valve adjustment process?
On many diesel engine platforms, an injector adjustment is performed as part of the full overhead set alongside valve lash adjustment. The injector adjustment sets the correct injector height or plunger position, ensuring the injector is properly timed and actuated by the camshaft through the rocker assembly. This step is critical for accurate fuel delivery timing and combustion efficiency. Not all diesel engines require a mechanical injector adjustment, so check your service manual to determine whether your engine includes this step in the overhead set procedure.
Can you perform a diesel valve adjustment yourself, or does it require a professional?
A diesel valve adjustment can be performed by a knowledgeable owner-operator or mechanic who has the right tools, access to the correct service manual, and experience working with diesel engine systems. It requires patience and attention to detail, as precision is critical at every step. For those unfamiliar with diesel overhead procedures, mistakes can lead to engine damage. If you are not confident with the process, having the adjustment performed by a qualified diesel technician is the safer choice, particularly for high-value or high-hour engines.
Where do you find the correct valve lash specifications for your diesel engine?
Always source valve lash and injector adjustment specifications directly from the engine’s data plate or the official service manual for your specific make, model, and serial number. Never assume that specs are the same across similar-looking engines, as even engines within the same family can have different clearance requirements. Using incorrect specs is one of the most common causes of valve train damage after an overhead set. If you cannot locate your service manual, reputable heavy-duty parts suppliers and diesel specialists can often help you find the correct specs for your engine.
What happens if valve lash is set too tight or too loose on a diesel engine?
If valve lash is set too tight, the valve may not fully close during the combustion cycle. This can cause the valve to overheat, burn, and ultimately fail, leading to significant internal engine damage. Excessively tight lash is particularly dangerous on exhaust valves. If valve lash is set too loose, the valve train will produce excessive ticking or tapping noise and the valves will not open to their full designed lift. This reduces airflow, impairs combustion efficiency, and leads to power loss and increased fuel consumption. Both extremes reduce engine life, making accurate adjustment essential.
